DOC220-FT LED
Choose a family:
Diameter ⌀: 6.06 in
Diameter ⌀: 6.06 in
Diameter ⌀: 6.06 in
Diameter ⌀: 6.06 in
Diameter ⌀: 9.84 in
Diameter ⌀: 9.84 in

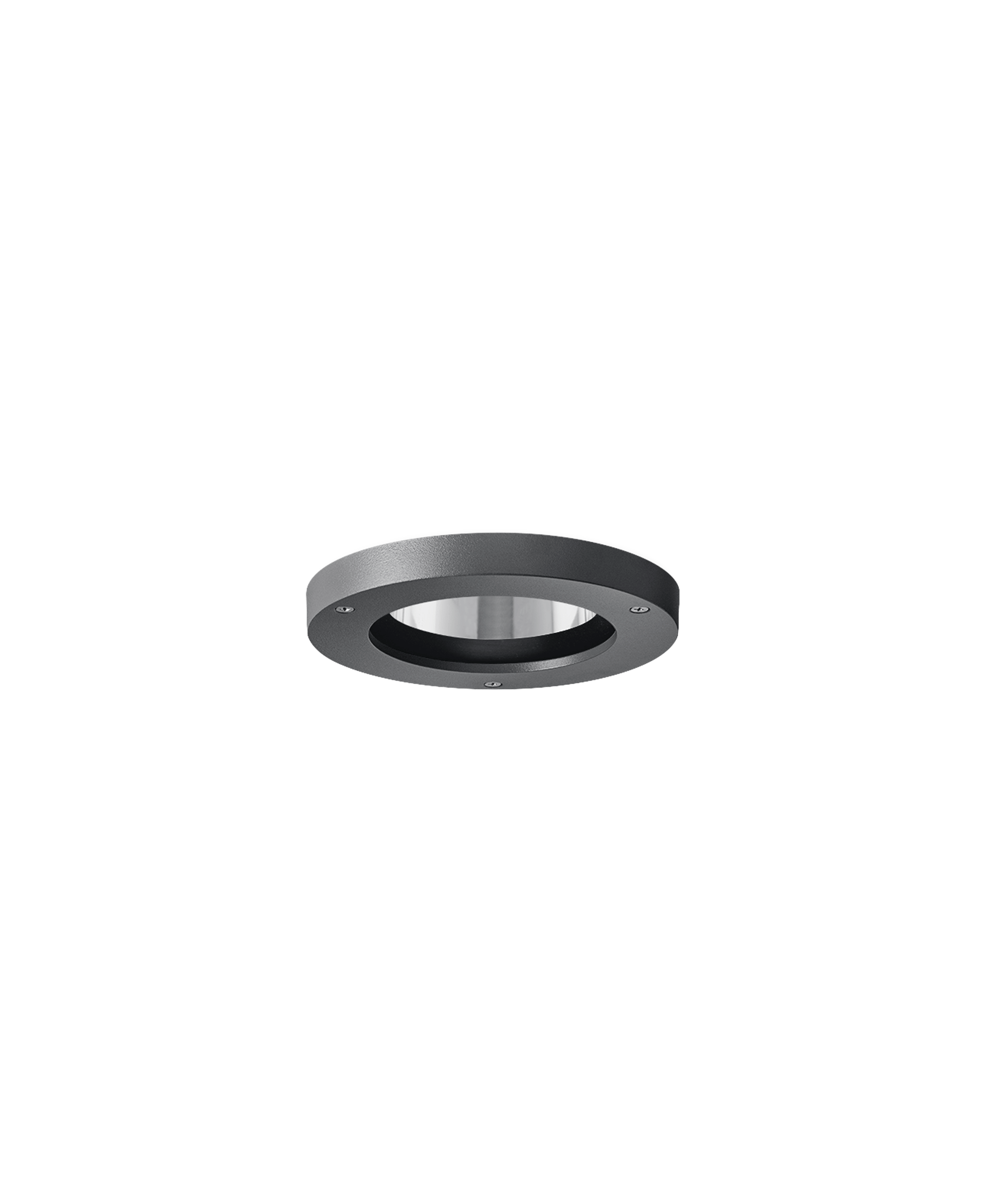

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. Two cable entries. Integral driver in thermally separated compartment. Factory-installed LED circuit board. Tunable White technology. Darklight anodized aluminum reflector for superior illumination and glare control. 0-10V Dimming comes standard with luminaire. Frame with safety catch. Suitable for installation in non-insulated ceiling. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Colors
Material
| Body | Luminaire body and lens frame constructed in die cast aluminum. |
| Fasteners | PCS polymer coated stainless steel |
| Gasket | Silicone rubber gasket |
| Impact Protection | IK07 |
| Ingress Protection | IP66 |
| Finish | Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019. |
| Corrosion Protection | 5CE |
| Mounting | Suitable for installation in non-insulated ceiling, using galvanized mounting tray and hanger bars. Maximum ceiling thickness 1.5 in. |
Electrical
| Ballast / Driver | Integral EC electronic converter in thermally-separated compartment |
| Cable | Two cable entries |
| Power Supply | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
Additional Information
| Lifetime | Ta=25°/40° L70B50 > 50000h |
Accessories
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions |
