DOC200 series

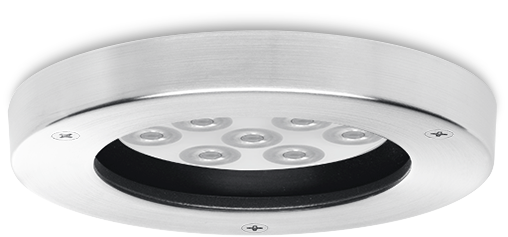

DOC220 LED Stainless Steel

Static White

Choose a variant:

Fixed
Gimbal

Choose a family:

D3.98" ⌀6.06" | DOC220 LED D3.98" ⌀6.06" | DOC220 LED Stainless Steel D5.31" ⌀6.06" | DOC220-FT LED D5.31" ⌀6.06" | DOC220-FT LED Stainless Steel D4.02" ⌀9.84" | DOC240 LED D4.02" ⌀9.84" | DOC240 LED Stainless Steel
Home
Products
Ceiling Luminaires
DOC220 LED Stainless Steel
Family Spec Sheet Installation Instructions More Downloads

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. Two cable entries. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Frame with safety catch. Suitable for installation in non-insulated ceiling. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

DOC220 LED Stainless Steel Schematics
Colours
Stainless Steel
Material
BodyLuminaire body constructed in die cast aluminum.
FastenersPCS polymer coated stainless steel
GasketSilicone rubber gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishNatural stainless steel
Corrosion Protection5CE
MountingSuitable for installation in non-insulated ceiling, using galvanized mounting tray and hanger bars. Maximum ceiling thickness 1.5 in.
Electrical
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeLED >60,000 h Ta 25°(L70/B10) Control gear >50.000 h Ta 25°

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
134-6117symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 3000 K3077.980
134-6123symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 4000 K3290.280
134-6126symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 4000 K3082.580
134-6116symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 3000 K2883.780
134-6125symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K3205.480
134-6115symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K2998.680
134-6118symmetric, wide beam [W]LED-12/24W / 700 mA - 3000 K2709.280
134-6124symmetric, wide beam [W]LED-12/24W / 700 mA - 4000 K289680
134-6115linear spread, medium beam [M]LED-12/24W / 700 mA - 3000 K2944.880
134-6125linear spread, medium beam [M]LED-12/24W / 700 mA - 4000 K3147.980
