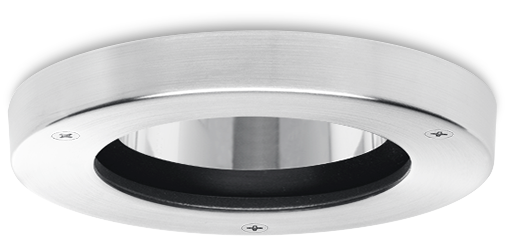

DOC220-FT LED Stainless Steel
Choose a family:
Diameter ⌀: 6.06 in
Diameter ⌀: 6.06 in
Diameter ⌀: 6.06 in
Diameter ⌀: 6.06 in
Diameter ⌀: 9.84 in
Diameter ⌀: 9.84 in
IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. Two cable entries. PMMA-Diffusor-Lens for glare control and soft wide beam distribution. Anodized aluminum reflector. 0-10V Dimming comes standard with luminaire. Frame with safety catch. Suitable for installation in non-insulated ceiling. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Colors
Material
| Body | Luminaire body constructed in die cast aluminum. |
| Lens | Clear tempered glass lens. |
| Fasteners | PCS polymer coated stainless steel |
| Gasket | Silicone rubber gasket |
| Finish | Natural stainless steel |
| Corrosion Protection | 5CE |
| Mounting | Suitable for installation in non-insulated ceiling, using galvanized mounting tray and hanger bars. Maximum ceiling thickness 1.5 in. |
Electrical
| Ballast / Driver | Clear tempered glass lens. |
| Power Supply | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
Additional Information
| Diameter (inches) | 6.1 |
