DOC100/200 | Fixed

96 mm

117 mm

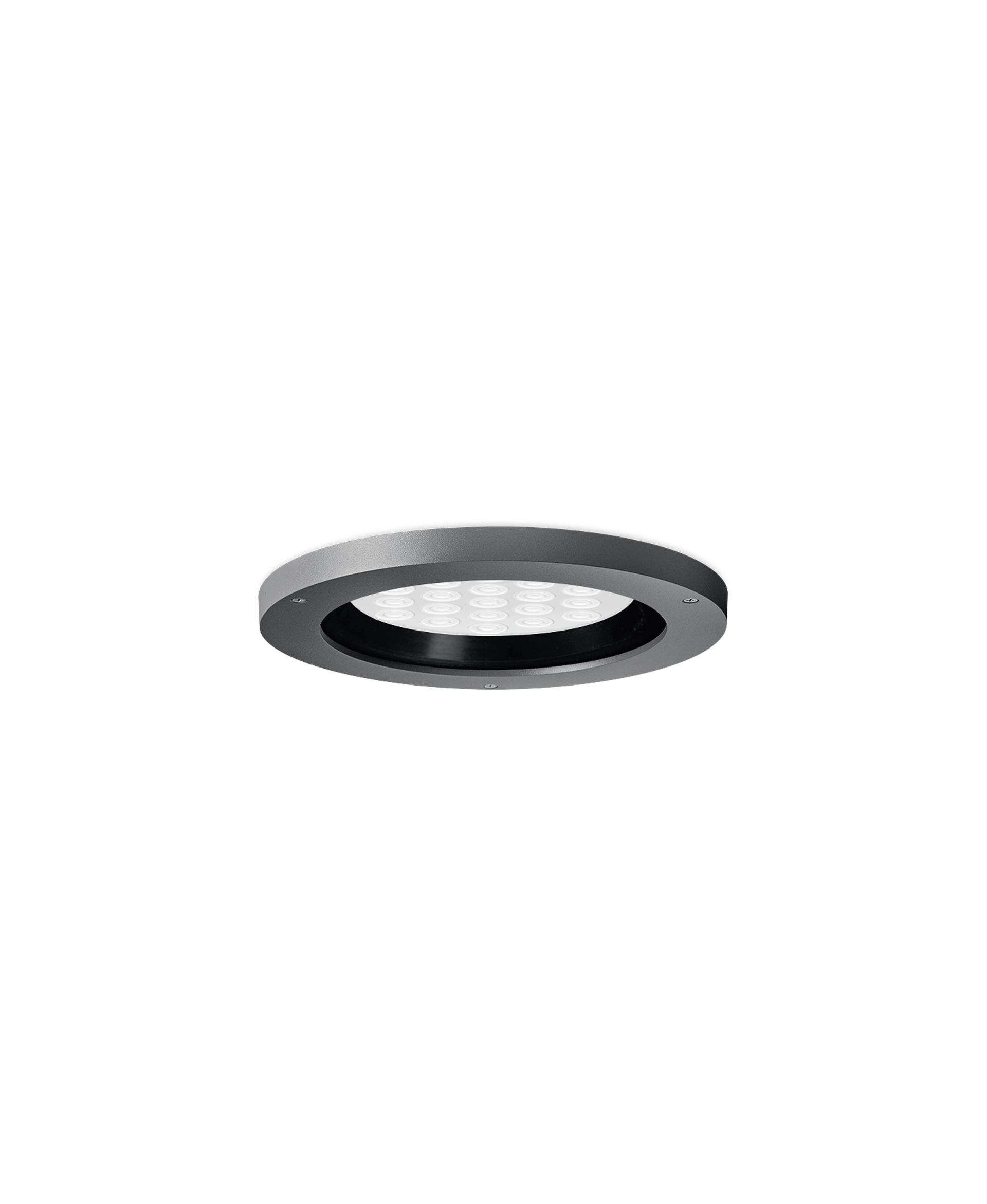

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. Two cable entries. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Frame with safety catch. Suitable for installation in non-insulated ceiling. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Colors

Material

Body: Luminaire body and lens frame constructed in die cast aluminum.

Fasteners: PCS polymer coated stainless steel

Gasket: Silicone rubber gasket

Impact Protection: IK07

Ingress Protection: IP66

Finish: Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.

Corrosion Protection: 5CE superior corrosion protection system

Mounting: Suitable for installation in non-insulated ceiling, using galvanized mounting tray and hanger bars. Maximum ceiling thickness 1.5 in.

Electrical

Ballast / Driver: Integral EC electronic converter in thermally-separated compartment

Cable: Two cable entries

Power Factor:

Power Supply: Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Surge Protection:

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
134-1396	symmetric, wide beam [W]	LED-24/48W / 700 mA - 3000 K	5388.5	80
134-1397	symmetric, wide beam [W]	LED-24/48W / 700 mA - 4000 K	5760.1	80
134-1398	symmetric, medium beam [M]	LED-24/48W / 700 mA - 3000 K	6047.2	80
134-1399	symmetric, medium beam [M]	LED-24/48W / 700 mA - 4000 K	6464.2	80
134-1400	symmetric, very narrow beam [VN]	LED-24/48W / 700 mA - 3000 K	5986.1	80
134-1400	linear spread, very narrow beam	LED-24/48W / 700 mA - 3000 K	5545.2	80
134-1401	symmetric, very narrow beam [VN]	LED-24/48W / 700 mA - 4000 K	6398.9	80
134-1401	linear spread, very narrow beam	LED-24/48W / 700 mA - 4000 K	5927.6	80
134-1402	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-24/48W / 700 mA - 3000 K	6442.7	80
134-1402	linear spread, very narrow beam, 'sharp cut-off'	LED-24/48W / 700 mA - 3000 K	6104.9	80
134-1403	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-24/48W / 700 mA - 4000 K	6887	80
134-1403	linear spread, very narrow beam, 'sharp cut-off'	LED-24/48W / 700 mA - 4000 K	6526	80
134-1399	wallwash [A20]	LED-24/48W / 700 mA - 4000 K	5186.6	80
134-1398	wallwash [A20]	LED-24/48W / 700 mA - 3000 K	4851.9	80
134-1398	linear spread, medium beam [M]	LED-24/48W / 700 mA - 3000 K	5508.3	80
134-1399	linear spread, medium beam [M]	LED-24/48W / 700 mA - 4000 K	5888.1	80
