DOC240-GB LED
Fiche technique de la famille Instructions d'installation Autres téléchargements

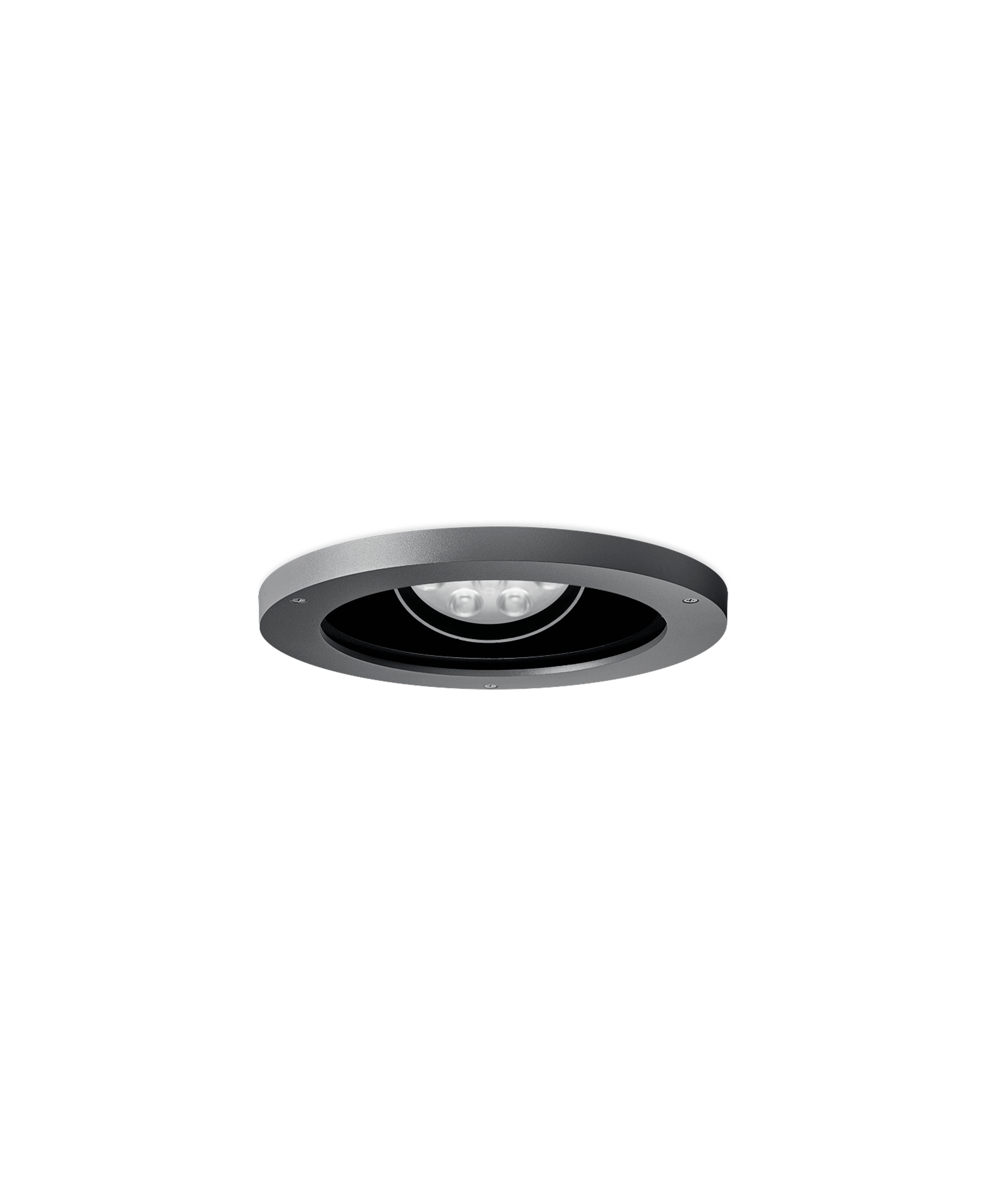

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. Two cable entries. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. Frame with safety catch. Gimbal mounted, 0-30° tiltable and 355° rotatable. Suitable for installation in non-insulated ceiling. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

DOC240-GB LED Schematics
Couleurs
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Description du matériel
CorpsLuminaire body and lens frame constructed in die cast aluminum.
VisseriePCS polymer coated stainless steel
JointSilicone rubber gasket
IKIK07
IPIP66
FinitionPowder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.
Protection contre la corrosion5CE
MontageSuitable for installation in non-insulated ceiling, using galvanized mounting tray and hanger bars. Maximum ceiling thickness 1.5 in.
Description électrique
DriverIntegral EC electronic converter in thermally-separated compartment
CâbleTwo cable entries
Alimentation électriqueIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Informations complémentaires
LifetimeTa=25°/40° L90B10 > 90000h

Données en sortie de luminaire

To
Code produitDistribution photométriqueSource lumineuseDonnées en sortie de luminaireIRCCaractéristiquesPhotométrie
TextePDF
134-1253symmetric, medium beam [M]LED-12/18W / 500 mA - 3000 K2223.180
134-1253linear spread, medium beam [M]LED-12/18W / 500 mA - 3000 K2183.280
134-1254symmetric, medium beam [M]LED-12/18W / 500 mA - 4000 K2378.280
134-1254linear spread, medium beam [M]LED-12/18W / 500 mA - 4000 K2335.580
134-1256symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/18W / 500 mA - 3000 K2281.980
134-1256linear spread, very narrow beam, 'sharp cut-off'LED-12/18W / 500 mA - 3000 K2124.780
134-1257symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/18W / 500 mA - 4000 K2441.180
134-1257linear spread, very narrow beam, 'sharp cut-off'LED-12/18W / 500 mA - 4000 K2272.980
134-1344symmetric, wide beam [W]LED-12/18W / 500 mA - 3000 K2008.580
134-1345symmetric, wide beam [W]LED-12/18W / 500 mA - 4000 K2148.780
134-1347symmetric, very narrow beam [VN]LED-12/18W / 500 mA - 3000 K2137.980
134-1347linear spread, very narrow beamLED-12/18W / 500 mA - 3000 K2034.580
134-1348symmetric, very narrow beam [VN]LED-12/18W / 500 mA - 4000 K228780
134-1348linear spread, very narrow beamLED-12/18W / 500 mA - 4000 K2176.480
Affichage de 1 à 14 sur 14 résultats

Accessories

Code produitTitreCaractéristiques
TextePDF
134-1442IO-360-DAC/DOC240-GB-LED
ItemDownload
Images du produit
Photométrie
Instructions d'installation
