DOR100 series

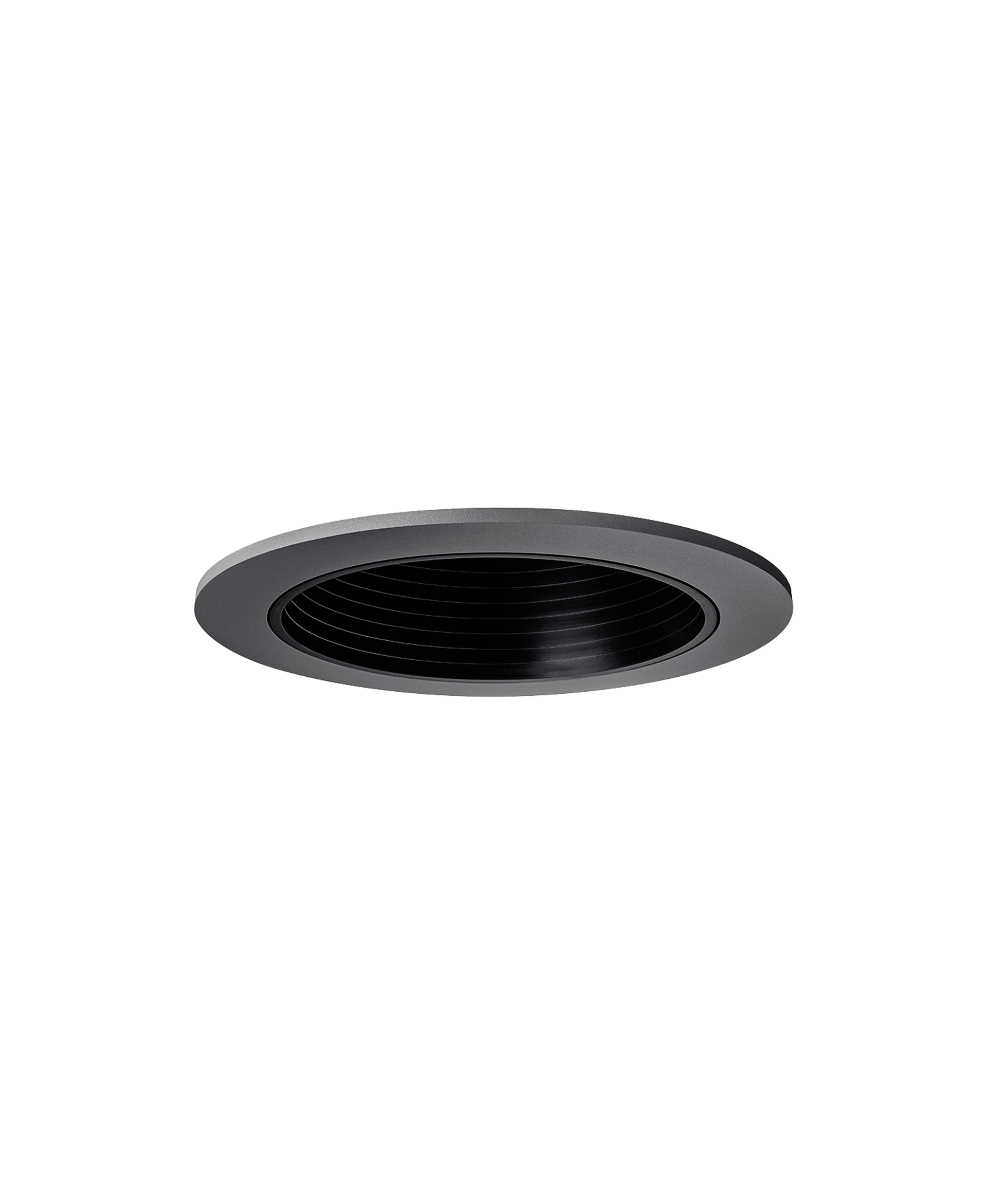

DOR140 LED
IP66. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection + primer including PCS hardware. PMMA lens (DOR120) or safety glass lens (DOR130/DOR140). Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Pre-installation blockout is recommended for mounting in cast concrete ceilings available on request. 1-10 V analogue dimming or DALI interface (where applicable) available on request. 2700 K option available on request.
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
Material
| Body | Marine-grade, die-cast aluminium alloy |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware (unpainted) |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK08 |
| Ingress Protection | IP66 |
| Finish | Powdercoat finish in black RAL9004, grey aluminium RAL9007, white aluminium RAL9006 or white RAL9016 |
| Corrosion Protection | 5CE+Primer |
| Mounting | Pre-installation blockout is recommended for mounting in cast concrete ceilings, available on request |
Electrical
| Ballast / Driver | EC electronic converter in thermally-separated compartment |
| Cable | 2.0m flex and plug |
| Power Supply | 230V / 50 Hz |
Additional Information
| Lifetime | Ta=40° L90B10 > 90000h |
| Warranty | The product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details. |
- - - -
Accessories
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions | |
| WE-EF LIGHTING - TEN YEAR WARRANTY - LED LUMINAIRES | |
| Revit Files - DOR140 |
