DOR100 series

DOR130 LED

Static White

Choose a family:

D90 ⌀140 mm | DOR120 LED D100 ⌀175 mm | DOR130 LED D125 ⌀250 mm | DOR140 LED
Home
Products
Ceiling Luminaires
DOR130 LED
Family Spec Sheet Installation Instructions More Downloads

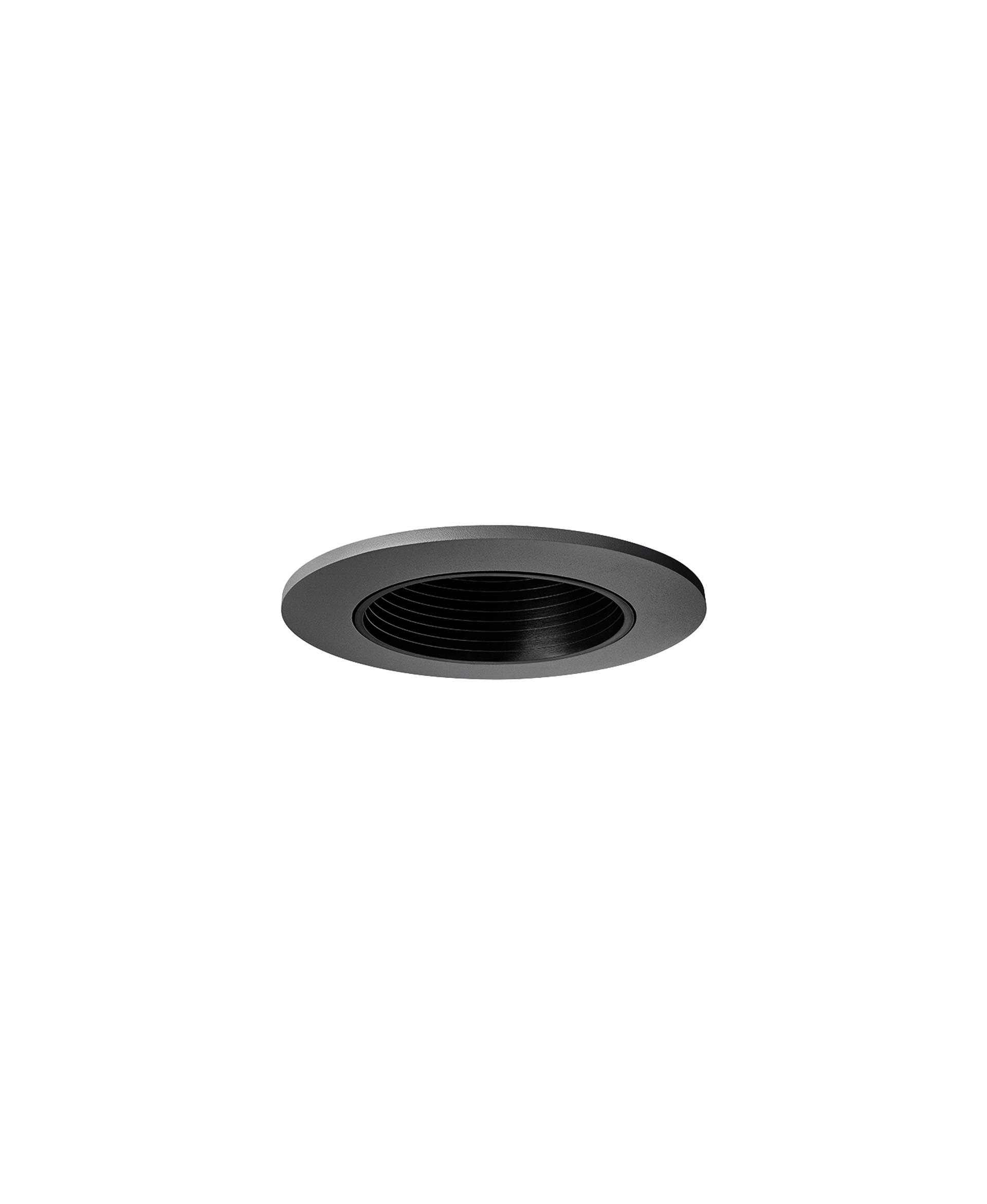

IP66. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection + primer including PCS hardware. PMMA lens (DOR120) or safety glass lens (DOR130/DOR140). Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Pre-installation blockout is recommended for mounting in cast concrete ceilings available on request. 1-10 V analogue dimming or DALI interface (where applicable) available on request. 2700 K option available on request.

DOR130 LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware (unpainted)
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowdercoat finish in black RAL9004, grey aluminium RAL9007, white aluminium RAL9006 or white RAL9016
Corrosion Protection5CE+Primer
MountingPre-installation blockout is recommended for mounting in cast concrete ceilings, available on request
Electrical
Ballast / DriverEC electronic converter in thermally-separated compartment
Cable2.0m flex and plug
Power Supply230V / 50 Hz
Additional Information
LifetimeTa=40° L90B10 > 90000h
WarrantyThe product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details.

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
135-9053symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K2908.180
135-9054symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 3000 K2786.980
135-9056symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K3108.780
135-9057symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 4000 K2979.180
135-9058symmetric, wide beam [B]LED-12/24W / 700 mA - 3000 K2296.780
135-9059symmetric, wide beam [B]LED-12/24W / 700 mA - 4000 K245580
135-9060symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 3000 K2985.880
135-9061symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 4000 K3191.880
135-9065symmetric, wide beam [B]LED-12/36W / 1050 mA - 3000 K3795.180
135-9068symmetric, wide beam [B]LED-12/36W / 1050 mA - 4000 K3971.680
135-9066symmetric, medium beam [M]LED-12/36W / 1050 mA - 3000 K4325.280
135-9069symmetric, medium beam [M]LED-12/36W / 1050 mA - 4000 K4526.480
135-9067symmetric, very narrow beam [EE]LED-12/36W / 1050 mA - 3000 K4093.280
135-9070symmetric, very narrow beam [EE]LED-12/36W / 1050 mA - 4000 K4283.680
135-9074symmetric, wide beam [B]LED-12/24W / 700 mA - 2700 K2138.380
135-9080symmetric, wide beam [B]LED-12/36W / 1050 mA - 2700 K324780
135-9072symmetric, medium beam [M]LED-12/24W / 700 mA - 2700 K2707.680
135-9081symmetric, medium beam [M]LED-12/36W / 1050 mA - 2700 K4124.180
135-9073symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 2700 K2594.780
135-9082symmetric, very narrow beam [EE]LED-12/36W / 1050 mA - 2700 K3902.880
135-9075symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 2700 K2779.980
Showing 1 to 21 of 21 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
135-9050Installation blockout BCR130-I
