DOR100 series

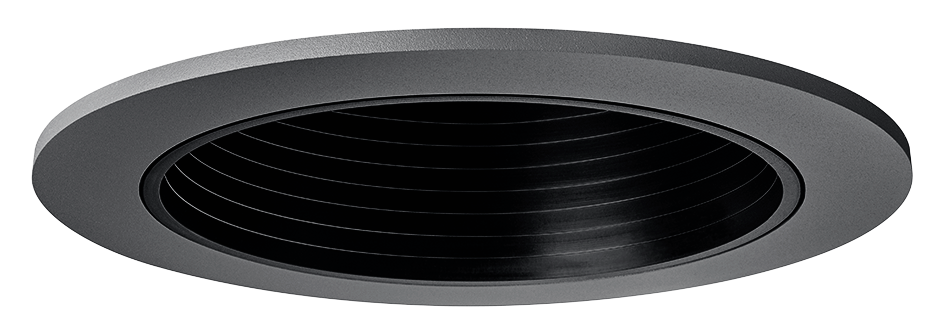

DOR140 LED

Static White

Choose a family:

D90 ⌀140 mm | DOR120 LED D100 ⌀175 mm | DOR130 LED D125 ⌀250 mm | DOR140 LED
Home
Products
Ceiling Luminaires
DOR140 LED
Family Spec Sheet Installation Instructions More Downloads

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Pre-installation blockout is recommended for mounting in cast concrete ceilings, available on request.

DOR140 LED Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowdercoat finish in RAL9004, RAL9006, RAL9007, RAL7016 and RAL9016
Corrosion Protection5CE
MountingPre-installation blockout is recommended for mounting in cast concrete ceilings, available on request
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
CableTwo cable entries
Additional Information

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
135-9102symmetric, wide beam [B]LED-24/48W / 700 mA - 3000 K4593.380
135-9103symmetric, medium beam [M]LED-24/48W / 700 mA - 3000 K5816.380
135-9104symmetric, very narrow beam [EE]LED-24/48W / 700 mA - 3000 K5573.880
135-9105symmetric, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 3000 K5971.780
135-9107symmetric, wide beam [B]LED-24/48W / 700 mA - 4000 K4910.180
135-9108symmetric, medium beam [M]LED-24/48W / 700 mA - 4000 K6217.480
135-9109symmetric, very narrow beam [EE]LED-24/48W / 700 mA - 4000 K5958.280
135-9110symmetric, very narrow beam, sharp cut-off [EES]LED-24/48W / 700 mA - 4000 K6383.580
135-9118symmetric, wide beam [B]LED-24/72W / 1050 mA - 3000 K8075.480
135-9121symmetric, wide beam [B]LED-24/72W / 1050 mA - 4000 K845180
135-9119symmetric, medium beam [M]LED-24/72W / 1050 mA - 3000 K8668.880
135-9122symmetric, medium beam [M]LED-24/72W / 1050 mA - 4000 K907280
135-9120symmetric, very narrow beam [EE]LED-24/72W / 1050 mA - 3000 K8662.680
135-9123symmetric, very narrow beam [EE]LED-24/72W / 1050 mA - 4000 K9065.580
Showing 1 to 14 of 14 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0013DALI interface
ItemDownload
Product Images
Photometrics
Installation Instructions
Revit Files - DOR140
