DOR100 series

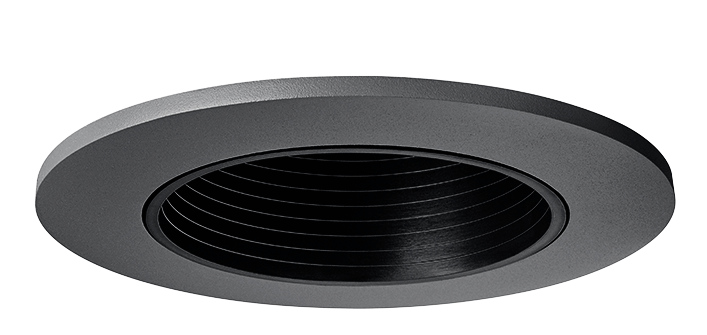

DOR130 LED

Static White

Choose a family:

D90 ⌀140 mm | DOR120 LED D100 ⌀175 mm | DOR130 LED D125 ⌀250 mm | DOR140 LED
Home
Products
Ceiling Luminaires
DOR130 LED
Family Spec Sheet Installation Instructions More Downloads

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Pre-installation blockout is recommended for mounting in cast concrete ceilings, available on request.

DOR130 LED Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowdercoat finish in RAL9004, RAL9006, RAL9007, RAL7016 and RAL9016
Corrosion Protection5CE
MountingPre-installation blockout is recommended for mounting in cast concrete ceilings, available on request
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
CableTwo cable entries
Additional Information

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
135-9053symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K2908.180
135-9054symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 3000 K2786.980
135-9056symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K3108.780
135-9057symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 4000 K2979.180
135-9058symmetric, wide beam [B]LED-12/24W / 700 mA - 3000 K2296.780
135-9059symmetric, wide beam [B]LED-12/24W / 700 mA - 4000 K245580
135-9060symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 3000 K2985.880
135-9061symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 4000 K3191.880
135-9065symmetric, wide beam [B]LED-12/36W / 1050 mA - 3000 K3795.180
135-9068symmetric, wide beam [B]LED-12/36W / 1050 mA - 4000 K3971.680
135-9066symmetric, medium beam [M]LED-12/36W / 1050 mA - 3000 K4325.280
135-9069symmetric, medium beam [M]LED-12/36W / 1050 mA - 4000 K4526.480
135-9067symmetric, very narrow beam [EE]LED-12/36W / 1050 mA - 3000 K4093.280
135-9070symmetric, very narrow beam [EE]LED-12/36W / 1050 mA - 4000 K4283.680
135-9074symmetric, wide beam [B]LED-12/24W / 700 mA - 2700 K2138.380
135-9080symmetric, wide beam [B]LED-12/36W / 1050 mA - 2700 K324780
135-9072symmetric, medium beam [M]LED-12/24W / 700 mA - 2700 K2707.680
135-9081symmetric, medium beam [M]LED-12/36W / 1050 mA - 2700 K4124.180
135-9073symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 2700 K2594.780
135-9082symmetric, very narrow beam [EE]LED-12/36W / 1050 mA - 2700 K3902.880
135-9075symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 2700 K2779.980
Showing 1 to 21 of 21 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0013DALI interface
