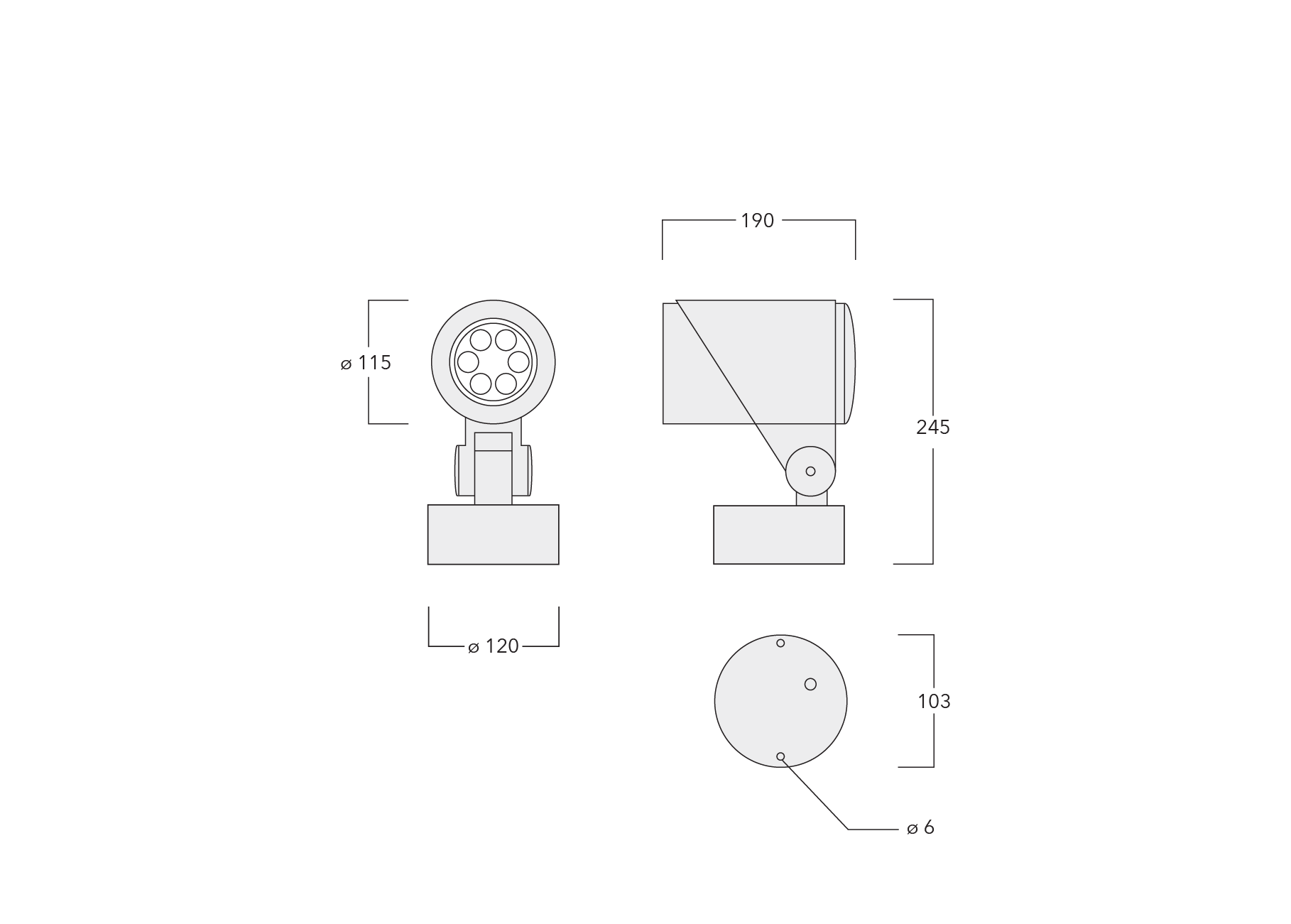

FLC321 Surface mounted

FCL301

58 mm

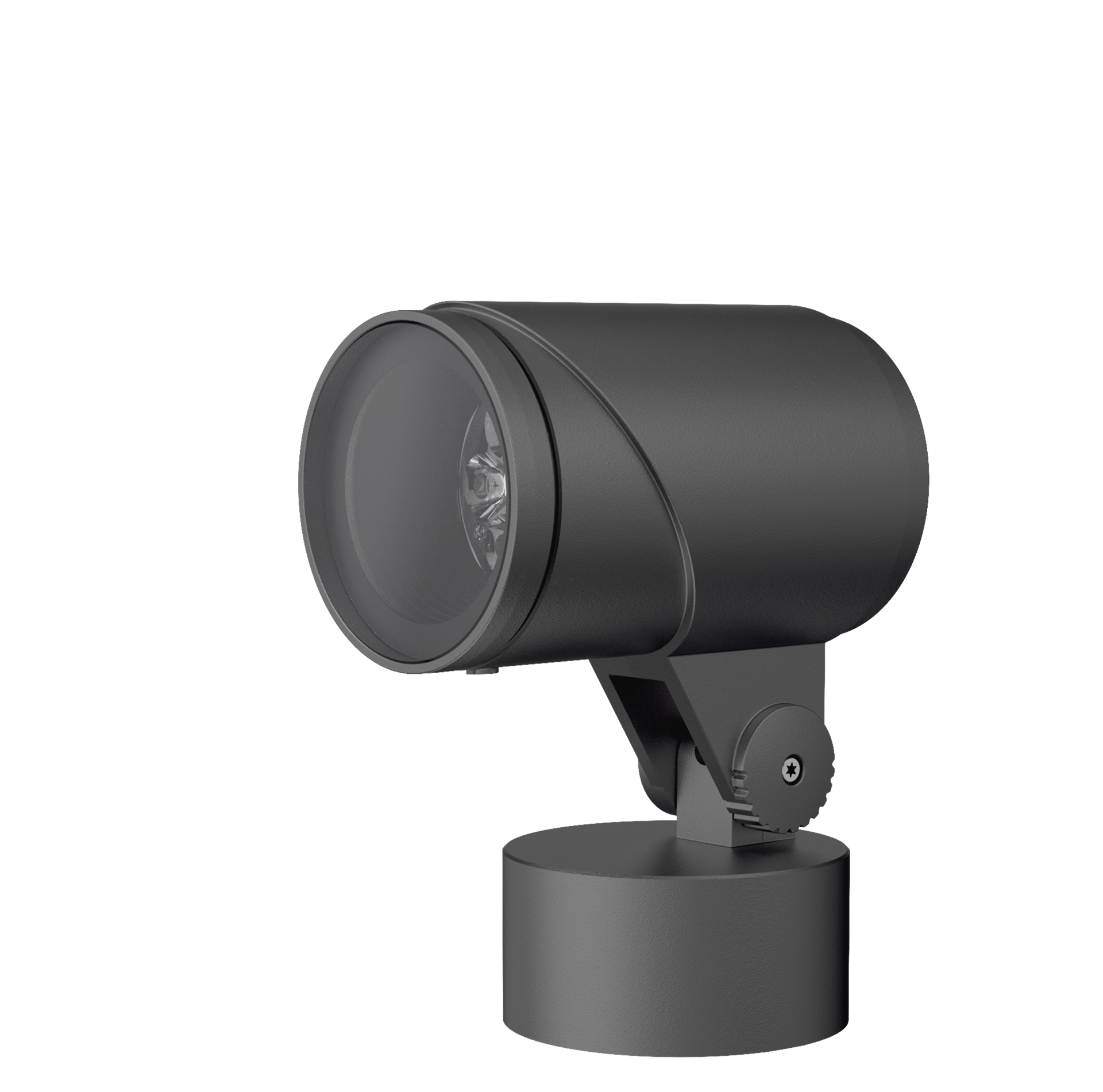

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.
Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. One cable entry. Optical accessories are factory-installed. To be specified at time of ordering. 12W, 18W, 26W / 120-277V / 0-10V Dimming. 12W, 18W / 24V DC / 0-10V Dimming. (available upon request) Contact the factory for 277V or 347V options.

Eigenschaften

Material

Gehäuse	Marine-grade, die-cast aluminium alloy
Schrauben	PCS hardware
Farben	Pending
Dichtung	Silicone CCG® Controlled Compression Gasket
Schlagfestigkeit	IK08
Schutzart	IP66
Abdeckung
Korrosionsschutz	5CE
Befestigung

Elektrik

LED Treiber	120-277V AC/50-60 Hz (24VDC available upon request)
Kabel
Leistungsfaktor	>0.9
Netz	120-277V AC/50-60 Hz (24VDC available upon request)
Überspannungsschutz

Weitere Eigenschaften

Lifetime	Ta=25°/40° L90B10 > 90000h

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikelnummer	Lichtverteilung	Lichtquelle	Bemessungslichtstrom	CRI	Vorschaltgerät	Gewicht (kg)	Open Data (txt)	Datenblatt	IES, LDT, ULD
145-9967	symmetric, wide beam [W]	LED-6/12W / 700 mA - 2700 K	887.8	80	electronic gear	6.80
145-9969	symmetric, wide beam [W]	LED-6/12W / 700 mA - 3000 K	953.5	80	electronic gear	6.80
145-9971	symmetric, wide beam [W]	LED-6/12W / 700 mA - 4000 K	1019.3	80	electronic gear	6.80
145-9973	symmetric, medium beam [M]	LED-6/12W / 700 mA - 2700 K	1162.6	80	electronic gear	6.80
145-9975	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1248.7	80	electronic gear	6.80
145-9977	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1334.9	80	electronic gear	6.80
145-9979	symmetric, very narrow beam [VN]	LED-6/12W / 700 mA - 2700 K	1224.7	80	electronic gear	5.70
145-9981	symmetric, very narrow beam [VN]	LED-6/12W / 700 mA - 3000 K	1315.4	80	electronic gear	5.70
145-9983	symmetric, very narrow beam [VN]	LED-6/12W / 700 mA - 4000 K	1406.2	80	electronic gear	5.70
145-9985	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/12W / 700 mA - 2700 K	1259.7	80	electronic gear	5.70
145-9987	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/12W / 700 mA - 3000 K	1353	80	electronic gear	5.70
145-9989	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/12W / 700 mA - 4000 K	1446.3	80	electronic gear	5.70
145-9968	symmetric, wide beam [W]	LED-6/18W / 1050 mA - 2700 K	1233	80	electronic gear	6.80
145-9970	symmetric, wide beam [W]	LED-6/18W / 1050 mA - 3000 K	1331.7	80	electronic gear	6.80
145-9972	symmetric, wide beam [W]	LED-6/18W / 1050 mA - 4000 K	1413.9	80	electronic gear	6.80
145-9974	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 2700 K	1614.8	80	electronic gear	6.80
145-9976	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 3000 K	1743.9	80	electronic gear	6.80
145-9978	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 4000 K	1851.6	80	electronic gear	6.80
145-9980	symmetric, very narrow beam [VN]	LED-6/18W / 1050 mA - 2700 K	1701	80	electronic gear	6.80
145-9982	symmetric, very narrow beam [VN]	LED-6/18W / 1050 mA - 3000 K	1837.1	80	electronic gear	6.80
145-9984	symmetric, very narrow beam [VN]	LED-6/18W / 1050 mA - 4000 K	1950.5	80	electronic gear	6.80
145-9986	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/18W / 1050 mA - 2700 K	1749.6	80	electronic gear	6.80
145-9988	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/18W / 1050 mA - 3000 K	1889.5	80	electronic gear	6.80
145-9990	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/18W / 1050 mA - 4000 K	2006.2	80	electronic gear	6.80
145-7332	symmetric, wide beam [W]	LED-6/26W / 1400 mA - 2700K	1665.8	80	electronic gear	6.80
