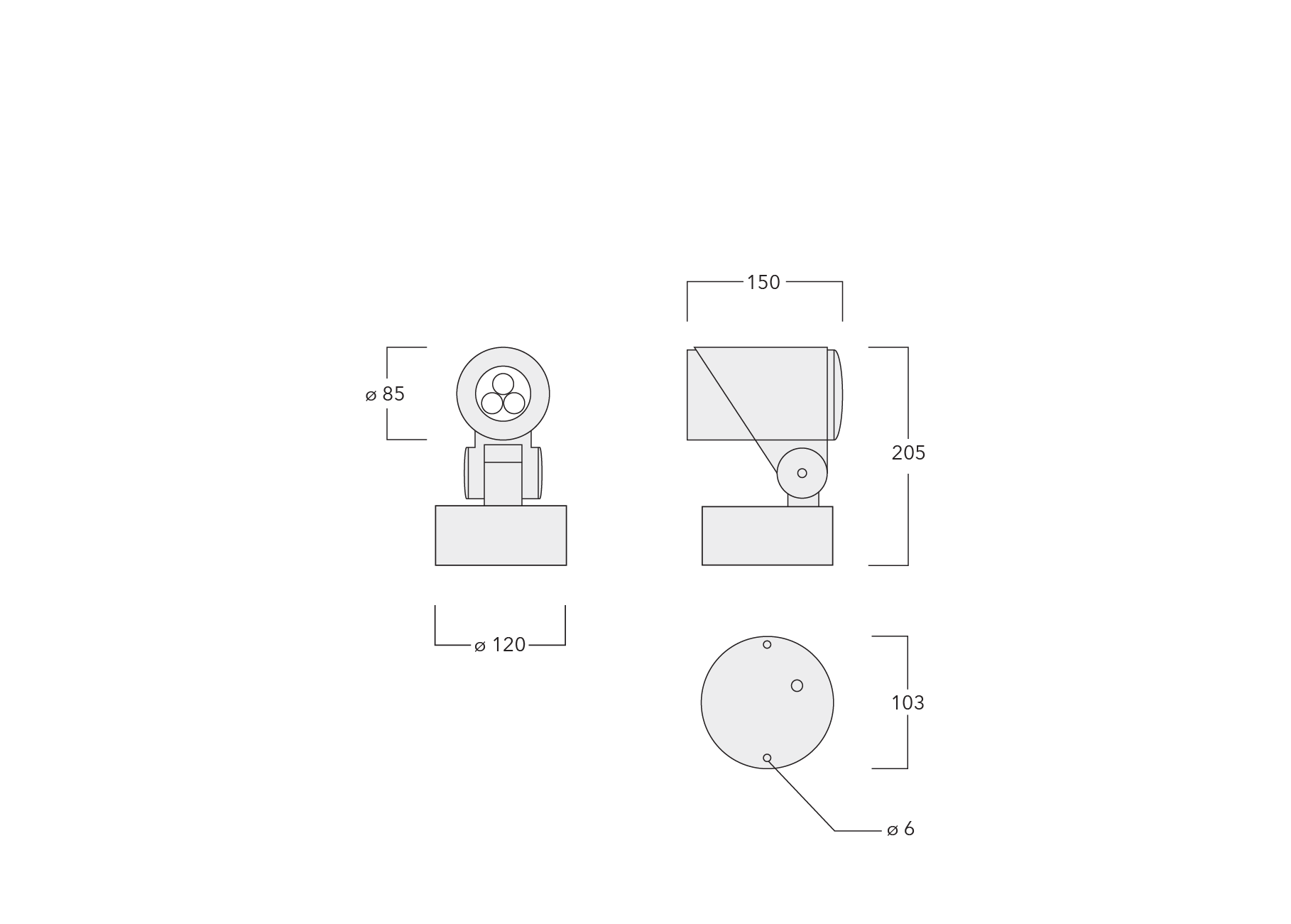

FLC311 Surface mounted

Back
Wallbracket
Spigot Mounted
Surface Mounted
Family Spec Sheet
FCL301 FCL301 58 mm 58 mm
FLC311 FLC311 85 mm 85 mm
FLC321 FLC321 115 mm 115 mm

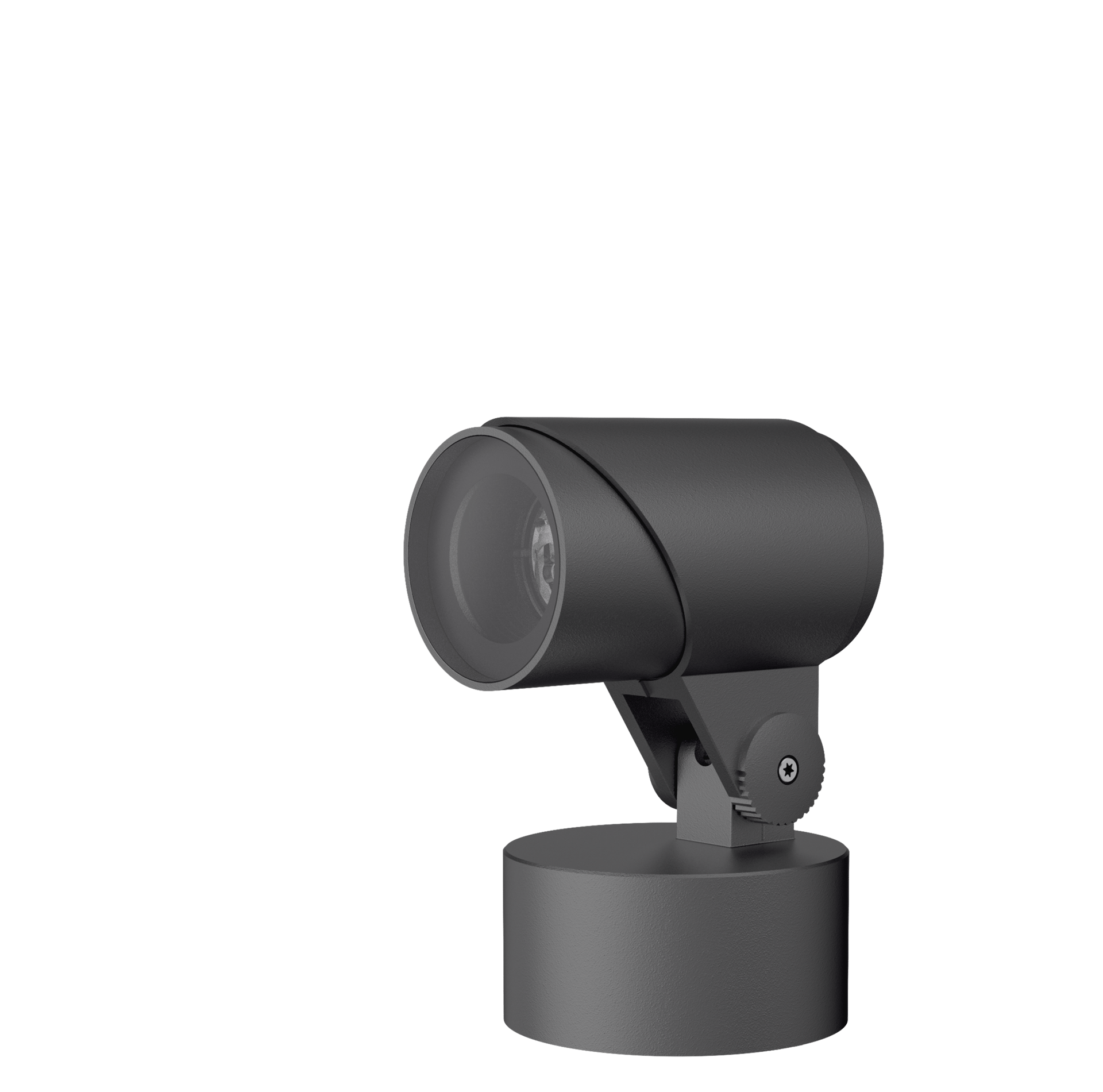

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.
Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. One cable entry. Optical accessories are factory-installed. To be specified at time of ordering. 6-12W / 120V / 0-10V Dimming. 6W / 24V DC / 0-10V Dimming. (available upon request) Contact the factory for 277V or 347V options.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK08
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
Befestigung

Elektrik

LED TreiberIntegral [ECG] electronic driver 120V-277V. (24VDC low voltage, available upon request)
Kabel
Leistungsfaktor>0.9
Netz120-277VAC/50-60 Hz (24V DC available upon request)
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=25°/40° L90B10 > 90000h
Dimming0-10V Dimming as standard

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
145-7636symmetric, wide beam [W]LED-3/6W / 180 mA - 2700 K595.480electronic gear2.20
145-7639symmetric, wide beam [W]LED-3/6W / 180 mA - 3000 K595.480electronic gear2.20
145-7642symmetric, wide beam [W]LED-3/6W / 180 mA - 4000 K641.280electronic gear2.20
145-7637symmetric, wide beam [W]LED-3/9W / 250 mA - 2700 K835.880electronic gear2.20
145-7640symmetric, wide beam [W]LED-3/9W / 250 mA - 3000 K835.880electronic gear2.20
145-7643symmetric, wide beam [W]LED-3/9W / 250 mA - 4000 K893.180electronic gear2.20
145-7638symmetric, wide beam [W]LED-3/12W / 350 mA - 2700 K1122.180electronic gear2.20
145-7641symmetric, wide beam [W]LED-3/12W / 350 mA - 3000 K1122.180electronic gear2.20
145-7644symmetric, wide beam [W]LED-3/12W / 350 mA - 4000 K1213.780electronic gear2.20
145-7645symmetric, medium beam [M]LED-3/6W / 180 mA - 2700 K600.480electronic gear2.20
145-7648symmetric, medium beam [M]LED-3/6W / 180 mA - 3000 K600.480electronic gear2.20
145-7651symmetric, medium beam [M]LED-3/6W / 180 mA - 4000 K646.680electronic gear2.20
145-7646symmetric, medium beam [M]LED-3/9W / 250 mA - 2700 K842.980electronic gear2.20
145-7649symmetric, medium beam [M]LED-3/9W / 250 mA - 3000 K842.980electronic gear2.20
145-7652symmetric, medium beam [M]LED-3/9W / 250 mA - 4000 K900.680electronic gear2.20
145-7647symmetric, medium beam [M]LED-3/12W / 350 mA - 2700 K1131.680electronic gear2.20
145-7650symmetric, medium beam [M]LED-3/12W / 350 mA - 3000 K1131.680electronic gear2.20
145-7653symmetric, medium beam [M]LED-3/12W / 350 mA - 4000 K122480electronic gear2.20
145-7654symmetric, very narrow beam [VN]LED-3/6W / 180 mA - 2700 K605.280electronic gear2.20
145-7657symmetric, very narrow beam [VN]LED-3/6W / 180 mA - 3000 K605.280electronic gear2.20
145-7660symmetric, very narrow beam [VN]LED-3/6W / 180 mA - 4000 K651.780electronic gear2.20
145-7655symmetric, very narrow beam [VN]LED-3/9W / 250 mA - 2700 K849.680electronic gear2.20
145-7658symmetric, very narrow beam [VN]LED-3/9W / 250 mA - 3000 K849.680electronic gear2.20
145-7661symmetric, very narrow beam [VN]LED-3/9W / 250 mA - 4000 K907.880electronic gear2.20
145-7656symmetric, very narrow beam [VN]LED-3/12W / 350 mA - 2700 K1140.580electronic gear2.20
Showing 1 to 25 of 63 Entries
