FLC300

58 mm

FCL301

85 mm

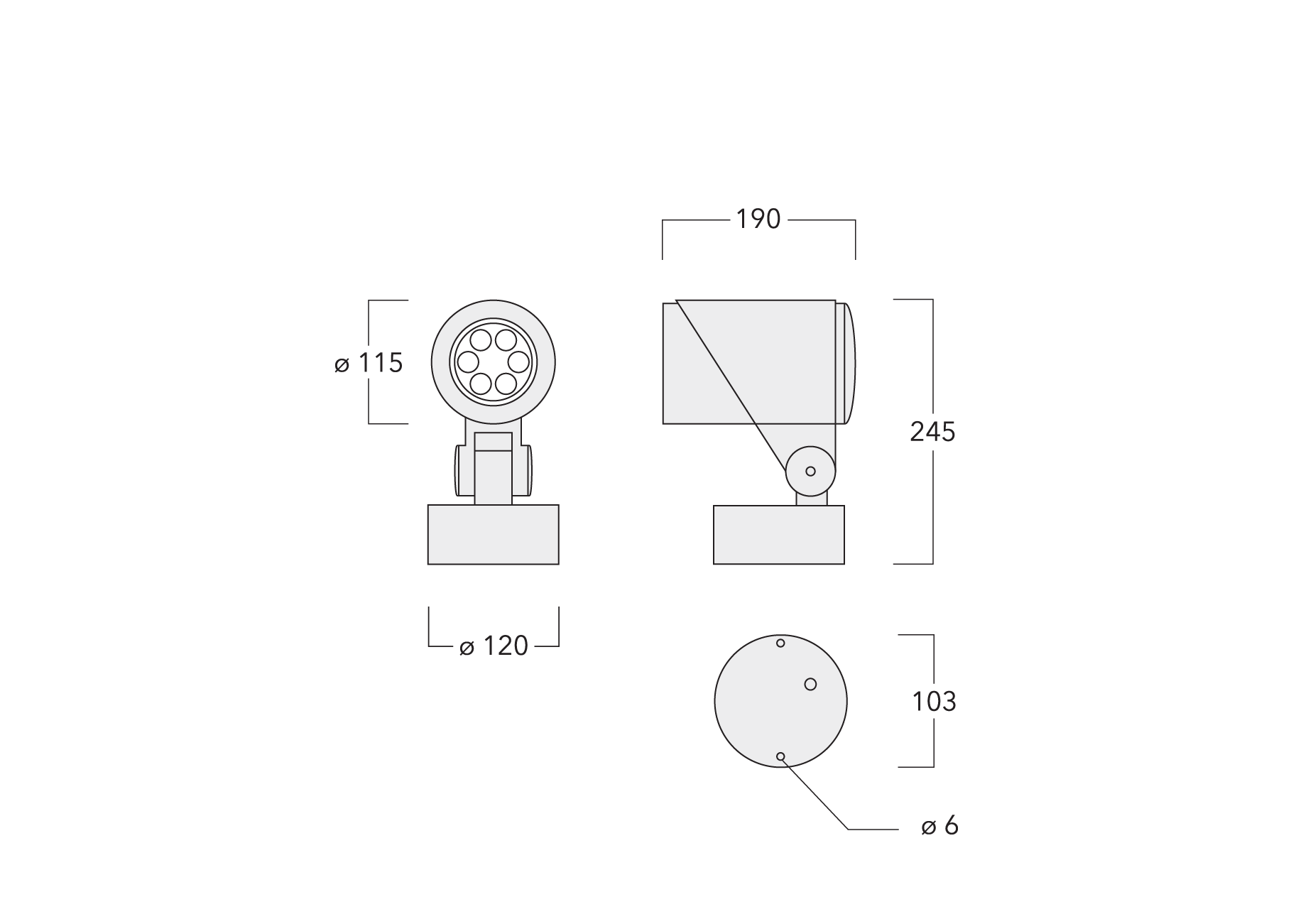

FLC321 Surface mounted

Family Spec Sheet

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. One cable entry. Mains voltage versions, DALI interface Class I. 1-10 V analogue dimming available on request; refer to accessory listings. 24VDC low voltage versions, 0-10 V analogue dimming (only 12-18W available) or DALI interface Class III available on request. Remote 24VDC power supply to be ordered separately. Optical accessories are factory-installed. To be specified at time of ordering.

Colors

Material

Body: Marine-grade, die-cast aluminium alloy

Fasteners: PCS hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK08

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver: Integral EC electronic converter (mains voltage). Integral LED electronic driver (24VDC low voltage).

Cable:

Power Factor: >0.9

Power Supply:

Surge Protection:

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-9967	symmetric, wide beam [B]	LED-6/12W / 700 mA - 2700 K	887.8	80
145-9969	symmetric, wide beam [B]	LED-6/12W / 700 mA - 3000 K	953.5	80
145-9971	symmetric, wide beam [B]	LED-6/12W / 700 mA - 4000 K	1019.3	80
145-9973	symmetric, medium beam [M]	LED-6/12W / 700 mA - 2700 K	1162.6	80
145-9975	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1248.7	80
145-9977	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1334.9	80
145-9979	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 2700 K	1224.7	80
145-9981	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 3000 K	1315.4	80
145-9983	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 4000 K	1406.2	80
145-9985	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 2700 K	1259.7	80
145-9987	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 3000 K	1353	80
145-9989	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 4000 K	1446.3	80
145-9968	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 2700 K	1233	80
145-9970	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 3000 K	1331.7	80
145-9972	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 4000 K	1413.9	80
145-9974	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 2700 K	1614.8	80
145-9976	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 3000 K	1743.9	80
145-9978	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 4000 K	1851.6	80
145-9980	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 2700 K	1701	80
145-9982	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 3000 K	1837.1	80
145-9984	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 4000 K	1950.5	80
145-9986	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 2700 K	1749.6	80
145-9988	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 3000 K	1889.5	80
145-9990	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 4000 K	2006.2	80
145-7332	symmetric, wide beam [B]	LED-6/26W / 1400 mA - 2700K	1665.8	80
