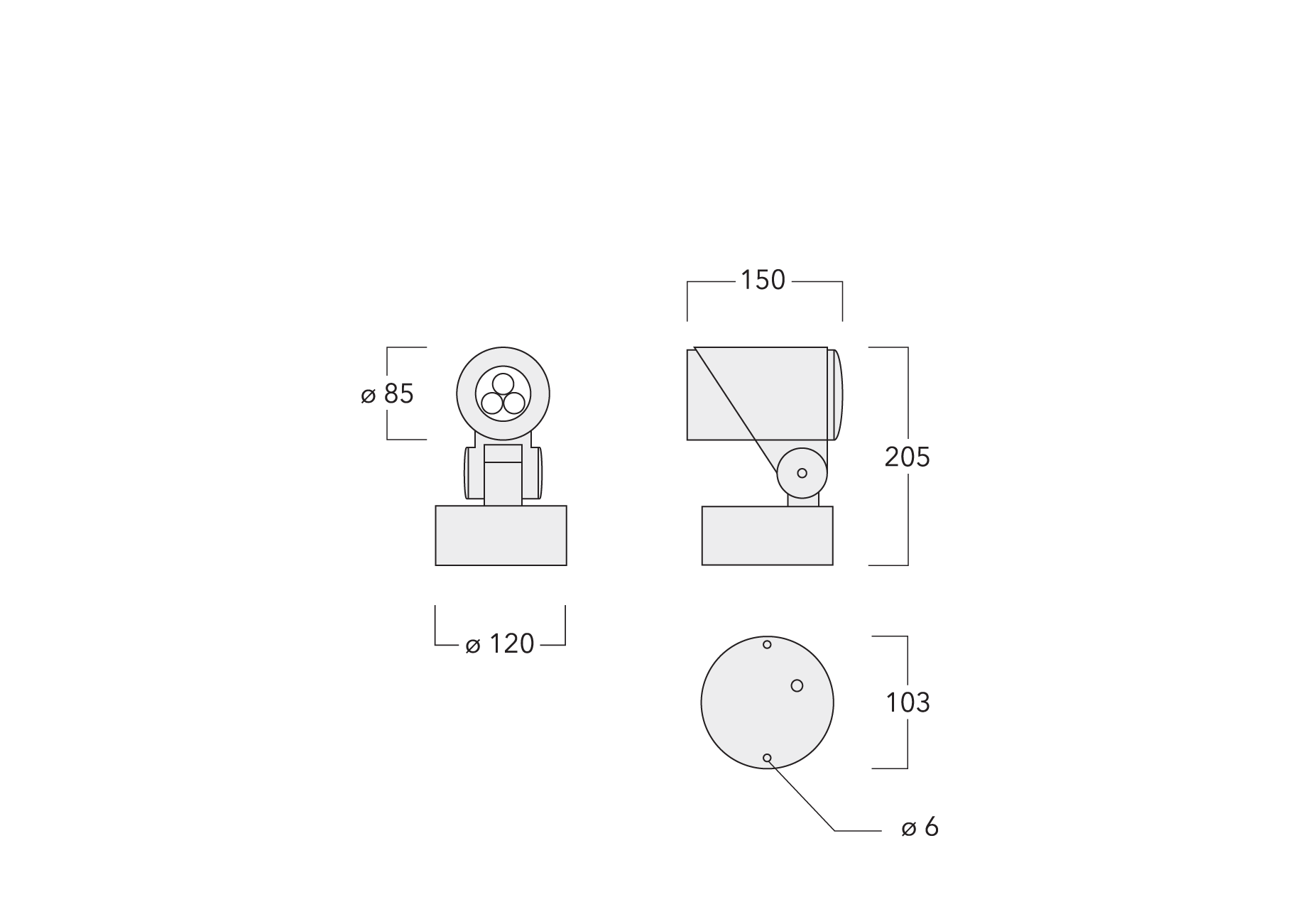

FLC311 Surface mounted

Back
Wallbracket
Spigot Mounted
Surface Mounted
Family Spec Sheet
FCL301 FCL301 58 mm 58 mm
FLC311 FLC311 85 mm 85 mm
FLC321 FLC321 115 mm 115 mm

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.
Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. One cable entry. Mains voltage versions, ON-OFF Class I. 1-10 V analogue dimming or DALI interface available on request; refer to accessory listings. 24VDC low voltage versions, 0-10 V Class III. Remote 24VDC power supply to be ordered separately.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK08
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
Befestigung

Elektrik

LED TreiberIntegral EC electronic converter (mains voltage). Integral ED electronic driver (24VDC low voltage).
Kabel
Leistungsfaktor>0.9
Netz
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=25° L90B10 > 90000h

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
145-7636symmetric, wide beam [B]LED-3/6W / 180 mA - 2700 K595.480EC2.20
145-7639symmetric, wide beam [B]LED-3/6W / 180 mA - 3000 K595.480EC2.20
145-7642symmetric, wide beam [B]LED-3/6W / 180 mA - 4000 K641.280EC2.20
145-7802symmetric, wide beam [B]LED-3/6W / 700 mA - 2700 K61880EC2.20
145-7803symmetric, wide beam [B]LED-3/6W / 700 mA - 3000 K663.880EC2.20
145-7804symmetric, wide beam [B]LED-3/6W / 700 mA - 4000 K709.680EC2.20
145-7637symmetric, wide beam [B]LED-3/9W / 250 mA - 2700 K835.880EC2.20
145-7640symmetric, wide beam [B]LED-3/9W / 250 mA - 3000 K835.880EC2.20
145-7643symmetric, wide beam [B]LED-3/9W / 250 mA - 4000 K893.180EC2.20
145-7638symmetric, wide beam [B]LED-3/12W / 350 mA - 2700 K1122.180EC2.20
145-7641symmetric, wide beam [B]LED-3/12W / 350 mA - 3000 K1122.180EC2.20
145-7644symmetric, wide beam [B]LED-3/12W / 350 mA - 4000 K1213.780EC2.20
145-7645symmetric, medium beam [M]LED-3/6W / 180 mA - 2700 K600.480EC2.20
145-7648symmetric, medium beam [M]LED-3/6W / 180 mA - 3000 K600.480EC2.20
145-7651symmetric, medium beam [M]LED-3/6W / 180 mA - 4000 K646.680EC2.20
145-7805symmetric, medium beam [M]LED-3/6W / 700 mA - 2700 K622.980EC2.20
145-7806symmetric, medium beam [M]LED-3/6W / 700 mA - 3000 K66980EC2.20
145-7807symmetric, medium beam [M]LED-3/6W / 700 mA - 4000 K715.280EC2.20
145-7646symmetric, medium beam [M]LED-3/9W / 250 mA - 2700 K842.980EC2.20
145-7649symmetric, medium beam [M]LED-3/9W / 250 mA - 3000 K842.980EC2.20
145-7652symmetric, medium beam [M]LED-3/9W / 250 mA - 4000 K900.680EC2.20
145-7647symmetric, medium beam [M]LED-3/12W / 350 mA - 2700 K1131.680EC2.20
145-7650symmetric, medium beam [M]LED-3/12W / 350 mA - 3000 K1131.680EC2.20
145-7653symmetric, medium beam [M]LED-3/12W / 350 mA - 4000 K122480EC2.20
145-7654symmetric, very narrow beam [EE]LED-3/6W / 180 mA - 2700 K605.280EC2.20
Showing 1 to 25 of 75 Entries
