RGBW/RGBA Color Changer. IP66. Class I. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Two cable glands; one for power, one for DMX. CAD-optimized optics for superior illumination and glare control. Integral driver, thermally separated. OLC® One LED Concept. Factory-installed LED circuit board. DMX interface. Color Boost technology: With Color Boost the targeted and selective control of individual channels or colors means that a higher power of the LEDs can be accessed than in total when all colors are simultaneously operated. The light output is thus maximized by targeted control of individual channels/colors. For the M20 cable gland for network- and DMX-connection, WE-EF recommends a multi-core cable for DMX and power, "Power PUR-SR 3x1.5 + DMX". Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

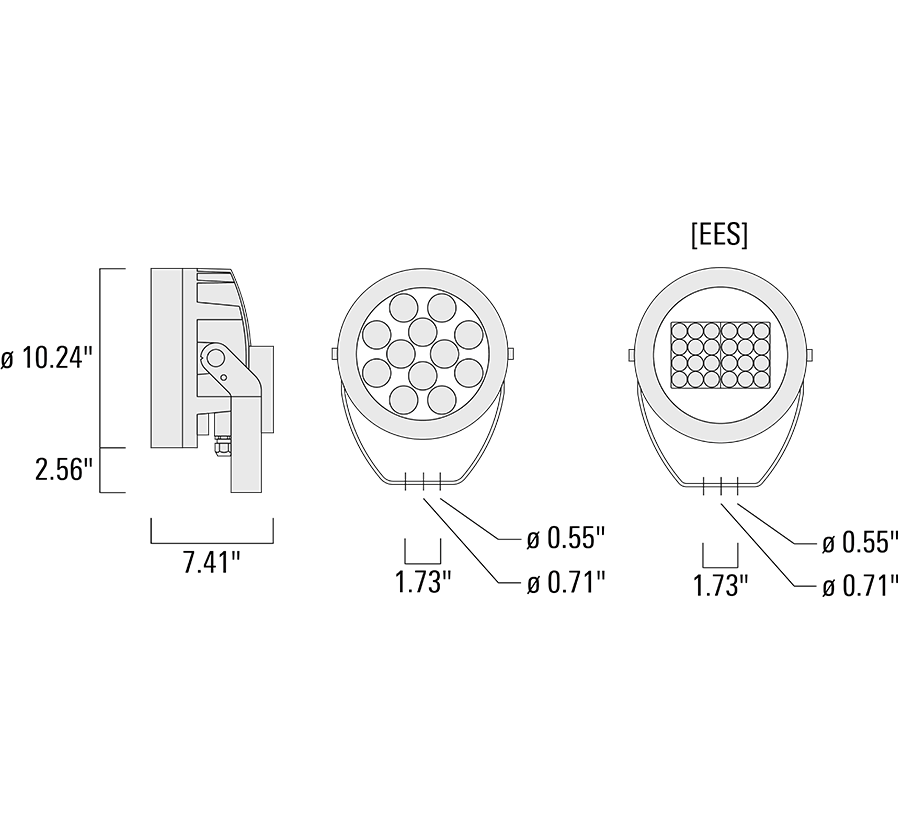

FLC230 LED COLOR CHANGER Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019
Corrosion Protection5CE superior corrosion protection system
Electrical
Ballast / DriverIntegral EC electronic converter with DMX Interface
CableTwo cable entry
Power Factor> 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
139-1929symmetric, wide beam [W]LED-12/48W - RGBW/4K298380
139-1913symmetric, medium beam [M]LED-12/48W - RGBW/4K320580
139-2420symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-4x6/42W - RGBW/4K2183.420/80
139-1914linear spread, narrow beam [N]LED-12/48W - RGBW/4K2865.380
139-1913wallwashLED-12/48W - RGBW/4K2599.180
139-2137symmetric, wide beam [W]LED-12/48W - RGBA2412.8
139-2139symmetric, medium beam [M]LED-12/48W - RGBA2592.2
139-2138symmetric, narrow beam [N]LED-12/48W - RGBA2542.7
139-2139wallwashLED-12/48W - RGBA2102.2
139-2138linear spread, narrow beam [N]LED-12/48W - RGBA2317.5
139-2420linear spread, very narrow beam, 'sharp cut-off'LED-4x6/42W - RGBW/4K2121.520/80
139-2422symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-4x6/42W - RGBA1949.520
139-2422linear spread, very narrow beam, 'sharp cut-off'LED-4x6/42W - RGBA1894.220
139-1914symmetric, narrow beam [N]LED-12/48W - RGBW/4K3143.780
Showing 1 to 14 of 14 Entries

Accessories

Part-IDTitlePDFOpen Data
147-0526TS1-2/M12 Pole clamp, single (Ø 4.0"-4.5")
147-0544TS1-2/M12 Pole clamp, single (Ø 4.5"-5.25")
147-0543TS1-2/M12 Pole clamp, single (Ø 3"-3.5")
147-0545TS2-2/M12 Pole clamp, double (Ø 3"-3.5")
147-0546TS2-2/M16 Pole clamp, double (Ø 4.5"-5.25")
