RGBW/RGBA Color Changer. IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland, second gland for through wiring on request. CAD-optimized optics for superior illumination and glare control. Integral driver, thermally separated. OLC® One LED Concept. Factory-installed LED circuit board. DMX interface. For the M20 cable gland for network- and DMX-connection, WE-EF recommends a multi-core cable for DMX and power, "Power PUR-SR 3x1.5 + DMX". Color Boost technology: With Color Boost the targeted and selective control of individual channels or colors means that a higher power of the LEDs can be accessed than in total when all colors are simultaneously operated. The light output is thus maximized by targeted control of individual channels/colors. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

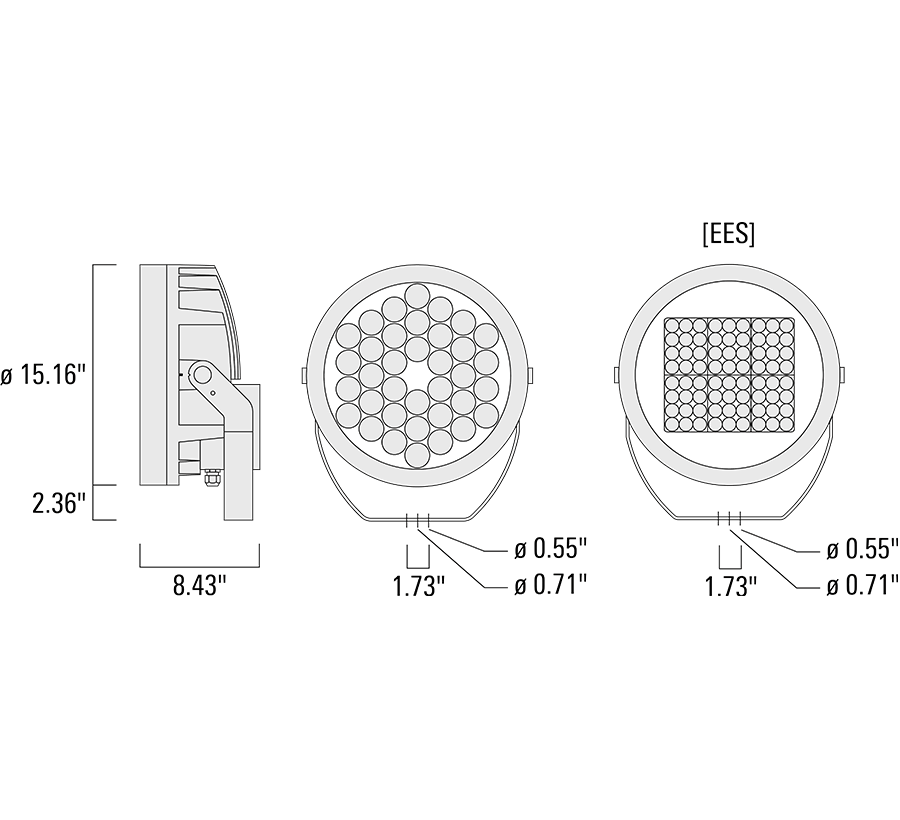

FLC260 LED COLOR CHANGER Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007, and Dark Bronze RAL8019.
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverDMX
Cable
Power Factor> 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
139-1889symmetric, medium beam [M]LED-36/144W - RGBW/4K9614.980
139-1891symmetric, narrow beam [N]LED-36/144W - RGBW/4K9431.180
139-1965symmetric, wide beam [W]LED-36/144W - RGBW/4K8949.180
139-1891linear spread, narrow beam [N]LED-36/144W - RGBW/4K8595.880
139-1889wallwashLED-36/144W - RGBW/4K7797.380
139-2143symmetric, wide beam [W]LED-36/144W - RGBA7238.3
139-2145symmetric, medium beam [M]LED-36/144W - RGBA7776.7
139-2144symmetric, narrow beam [N]LED-36/144W - RGBA7628.1
139-2145wallwashLED-36/144W - RGBA6306.6
139-2144linear spread, narrow beam [N]LED-36/144W - RGBA6952.5
139-2428symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-4x18/126W - RGBW/4K6550.220/80
139-2430symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-4x18/126W - RGBA5848.420
139-2428linear spread, very narrow beam, 'sharp cut-off'LED-4x18/126W - RGBW/4K6364.420/80
139-2430linear spread, very narrow beam, 'sharp cut-off'LED-4x18/126W - RGBA5682.520
Showing 1 to 14 of 14 Entries
