FLC240 LED COLOR CHANGER

FLC240 LED COLOR CHANGER

Family Spec Sheet

RGBW/RGBA Color Changer. IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland, second gland for through wiring on request. CAD-optimized optics for superior illumination and glare control. Integral driver, thermally separated. OLC® One LED Concept. Factory-installed LED circuit board. DMX interface. For the M20 cable gland for network- and DMX-connection, WE-EF recommends a multi-core cable for DMX and power, "Power PUR-SR 3x1.5 + DMX". Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

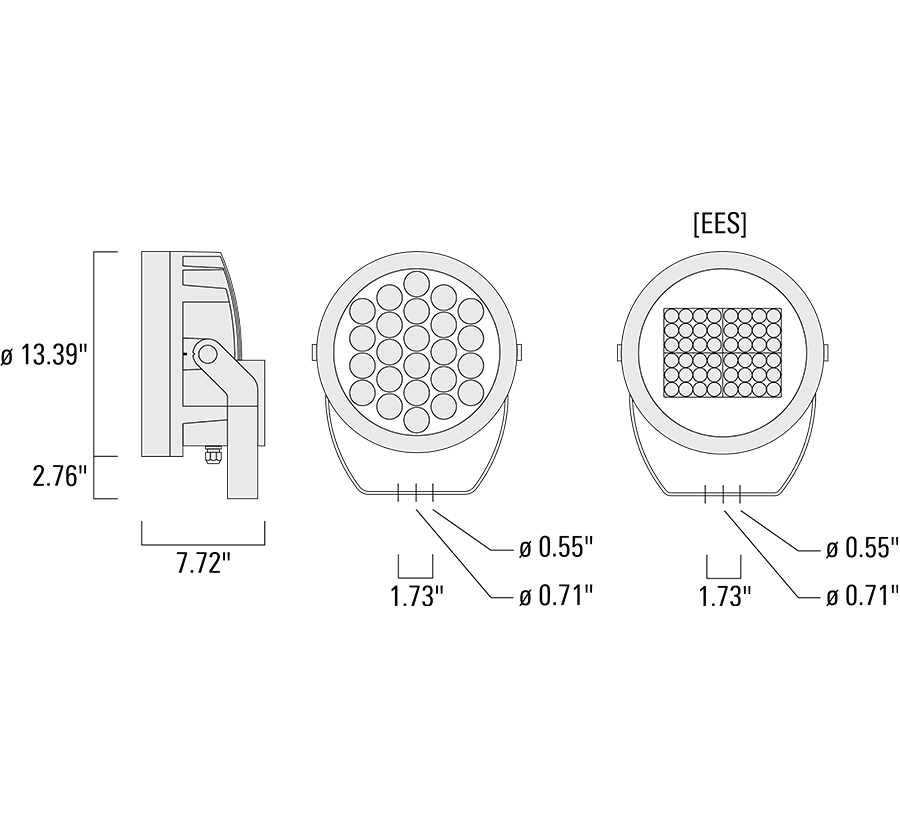

FLC240 LED COLOR CHANGER Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 and Dark Bronze RAL8019
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverDMX
CableOne cable entry, second cable entry on request
Power Factor> 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
139-1877symmetric, medium beam [M]LED-24/96W - RGBW/4K6409.980
139-1879symmetric, narrow beam [N]LED-24/96W - RGBW/4K6287.480
139-1931symmetric, wide beam [W]LED-24/96W - RGBW/4K5966.180
139-1879linear spread, narrow beam [N]LED-24/96W - RGBW/4K5730.680
139-1877wallwashLED-24/96W - RGBW/4K5198.280
139-2140symmetric, wide beam [W]LED-24/96W - RGBA4825.5
139-2142symmetric, medium beam [M]LED-24/96W - RGBA5184.5
139-2141symmetric, narrow beam [N]LED-24/96W - RGBA5085.4
139-2142wallwashLED-24/96W - RGBA4204.4
139-2141linear spread, narrow beam [N]LED-24/96W - RGBA4635
139-2424symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-4x12/84W - RGBW/4K4366.820/80
139-2426symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-4x12/84W - RGBA3898.920
139-2424linear spread, very narrow beam, 'sharp cut-off'LED-4x12/84W - RGBW/4K4242.920/80
139-2426linear spread, very narrow beam, 'sharp cut-off'LED-4x12/84W - RGBA3788.320
Showing 1 to 14 of 14 Entries
