ETC300 series

ETC340-FS LED

Static White Colour Changer Tunable White

Choose a variant:

Fixed

Gimbal

Choose a family:

D7.09" ⌀6.30" | ETC320-FS LED D7.87" ⌀9.84" | ETC330-FS LED D7.87" ⌀11.81" | ETC340-FS LED

Family Spec Sheet Installation Instructions More Downloads

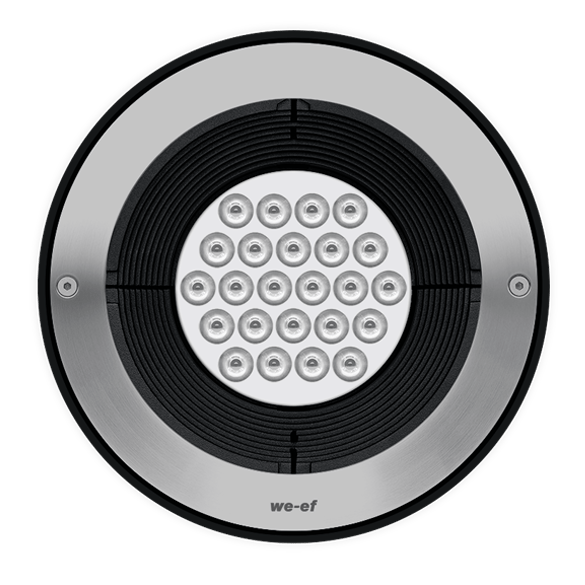

IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. ASC Anti Slip ceramic Coating on request. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. CAD-optimized optics for superior illumination and glare control. Integral driver. Advanced thermal management protects LEDs while optimizing lumens output. LED module can be easily removed for upgrading. The concrete-pour installation blockout is supplied as standard with luminaire.

Colours

Stainless Steel

Material

Body	Luminaire body constructed of deep drawn stainless steel. Outer housing composite material.
Fasteners	PCS polymer coated stainless steel
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK10+
Ingress Protection	IP69K - HIGHEST PROTECTION RATING AVAILABLE
Finish	Natural stainless steel
Corrosion Protection	5CE
Mounting	Suitable for installation in concrete or earth. Suitable for walk-over and drive-over applications. Proper drainage and foundation support must be provided.

Electrical

Ballast / Driver	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Cable	3 feet of flexible 18/3 cable
Power Supply	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Additional Information

Lifetime	LED >60,000 h Ta 25°C (L70/B10) Control gear >50,000 h Ta 25°C
Dimming	0-10V available in request. Must be factory fitted.

Light Distribution

Delivered Lumen

Wattage

Colour Temperature

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
185-7697	symmetric, wide beam [W]	LED-24/36W / 500 mA - 3000 K	4043.5	80
185-7698	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-24/36W / 500 mA - 3000 K	4818.2	80
185-7699	symmetric, wide beam [W]	LED-24/36W / 500 mA - 4000 K	4325.6	80
185-7700	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-24/36W / 500 mA - 4000 K	5154.3	80
185-9748	symmetric, very narrow beam [VN]	LED-24/36W / 500 mA - 3000 K	4439.5	80
185-9749	symmetric, medium beam [M]	LED-24/36W / 500 mA - 3000 K	4542.4	80
185-9752	symmetric, very narrow beam [VN]	LED-24/36W / 500 mA - 4000 K	4749.2	80
185-9753	symmetric, medium beam [M]	LED-24/36W / 500 mA - 4000 K	4859.4	80
185-9749	wallwash	LED-24/36W / 500 mA - 3000 K	3497.6	80
185-9753	wallwash	LED-24/36W / 500 mA - 4000 K	3741.7	80
185-9748	linear spread, very narrow beam [VN]	LED-24/36W / 500 mA - 3000 K	4028.9	80
185-9752	linear spread, very narrow beam [VN]	LED-24/36W / 500 mA - 4000 K	4310	80
185-9748	symmetric, narrow beam [N]	LED-24/36W / 500 mA - 3000 K	4111.2	80
185-9752	symmetric, narrow beam [N]	LED-24/36W / 500 mA - 4000 K	4398	80
185-7698	linear spread, very narrow beam, 'sharp cut-off'	LED-24/36W / 500 mA - 3000 K	4435.8	80
185-7700	linear spread, very narrow beam, 'sharp cut-off'	LED-24/36W / 500 mA - 4000 K	4745.3	80
185-7698	symmetric, narrow beam, 'sharp cut-off'	LED-24/36W / 500 mA - 3000 K	4479.9	80
185-7700	symmetric, narrow beam, 'sharp cut-off'	LED-24/36W / 500 mA - 4000 K	4792.5	80
185-7888	symmetric, wallgrazer [A6]	LED-24/36W / 500 mA - 2700K	3604.8	80
185-7886	symmetric, wallgrazer [A6]	LED-24/36W / 500 mA - 3000 K	3875.1	80
185-7887	symmetric, wallgrazer [A6]	LED-24/36W / 500 mA - 4000 K	4145.5	80

Showing 1 to 21 of 21 entries.

Accessories

Optical Accessories

Control

Mounting Accessories

Electrical Accessories

Part-ID	Title	Specifications
		Text	PDF
185-7579	Flood lens IO-360
