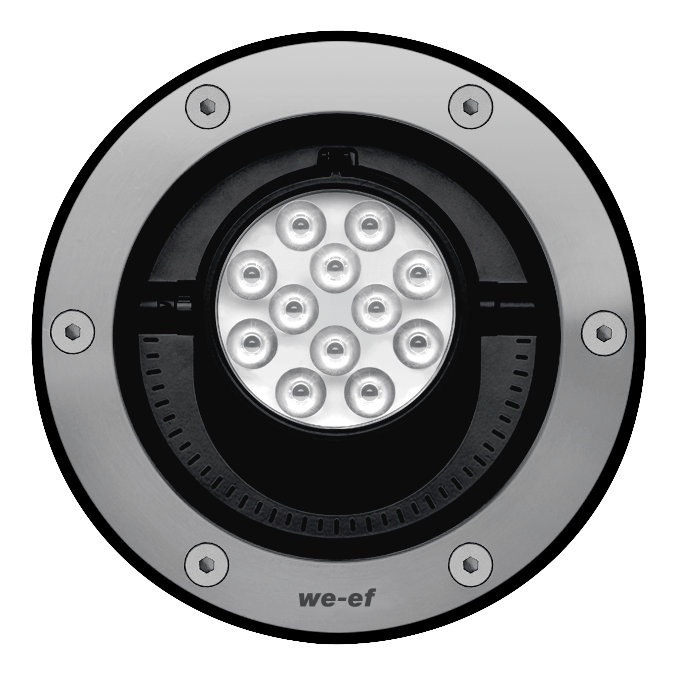

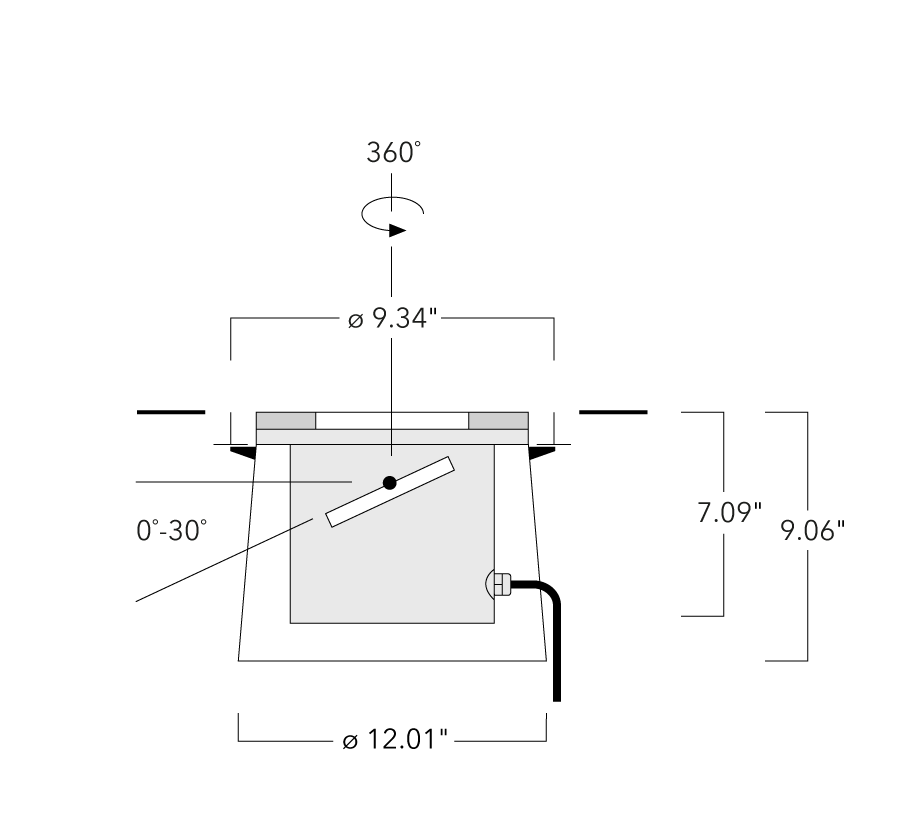

ETC100/300 | Gimbal

IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. Optional with Anti-Slip ceramic Coating ASC to DIN 51130 (Trip Classification 10) available on request. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. Gimbal mounted, 360° rotatable and 30° tiltable. 'No tool' removable gear/lens tray. The concrete-pour installation blockout is supplied as standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Colors

Material

Body: Luminaire body constructed of deep drawn stainless steel. Outer housing composite material.

Fasteners: PCS polymer coated stainless steel

Gasket: Silicone rubber gasket

Impact Protection: IK10+

Ingress Protection: IP69K - HIGHEST PROTECTION RATING AVAILABLE

Finish: Natural stainless steel

Corrosion Protection: 5CE

Mounting: Suitable for flush installation in concrete or earth. Suitable for walk-over and drive-over applications. Suitable Proper drainage and foundation support must be provided.

Electrical

Ballast / Driver: Integral EC electronic converter

Cable: 3 feet of flexible 18/3 cable

Power Factor: > 0.9

Power Supply: Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Surge Protection:

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

Dimming: 0-10V available in request. Must be factory fitted.

Light Distribution

Delivered Lumen

Wattage

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
185-2576	symmetric, medium beam [M]	LED-12/12W / 350 mA - 3000 K	1613.9	80
185-2576	linear spread, medium beam [M]	LED-12/12W / 350 mA - 3000 K	1526.8	80
185-2577	symmetric, medium beam [M]	LED-12/12W / 350 mA - 4000 K	1770.1	80
185-2577	linear spread, medium beam [M]	LED-12/12W / 350 mA - 4000 K	1674.5	80
185-2583	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-12/12W / 350 mA - 3000 K	1621.1	80
185-2583	linear spread, very narrow beam, 'sharp cut-off'	LED-12/12W / 350 mA - 3000 K	1485.8	80
185-2584	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-12/12W / 350 mA - 4000 K	1778	80
185-2584	linear spread, very narrow beam, 'sharp cut-off'	LED-12/12W / 350 mA - 4000 K	1629.6	80
185-2688	symmetric, wide beam [W]	LED-12/12W / 350 mA - 3000 K	1406.2	80
185-2689	symmetric, wide beam [W]	LED-12/12W / 350 mA - 4000 K	1542.3	80
185-2691	symmetric, very narrow beam [VN]	LED-12/12W / 350 mA - 3000 K	1523.6	80
185-2691	linear spread, very narrow beam [VN]	LED-12/12W / 350 mA - 3000 K	1422.8	80
185-2691	symmetric, narrow beam [N]	LED-12/12W / 350 mA - 3000 K	1429	80
185-2692	symmetric, very narrow beam [VN]	LED-12/12W / 350 mA - 4000 K	1671.1	80
185-2692	linear spread, very narrow beam [VN]	LED-12/12W / 350 mA - 4000 K	1560.5	80
185-2692	symmetric, narrow beam [N]	LED-12/12W / 350 mA - 4000 K	1567.3	80
185-3095	wallwash	LED-12/12W / 350 mA - 3000 K	1299.6	80
185-3096	wallwash	LED-12/12W / 350 mA - 4000 K	1425.4	80
185-3550	symmetric, medium beam [M]	LED-12/12W / 350 mA - 2700 K	1509.8	80
185-3551	symmetric, very narrow beam [VN]	LED-12/12W / 350 mA - 2700 K	1425.3	80
185-3552	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-12/12W / 350 mA - 2700 K	1516.5	80
