ETC300 series

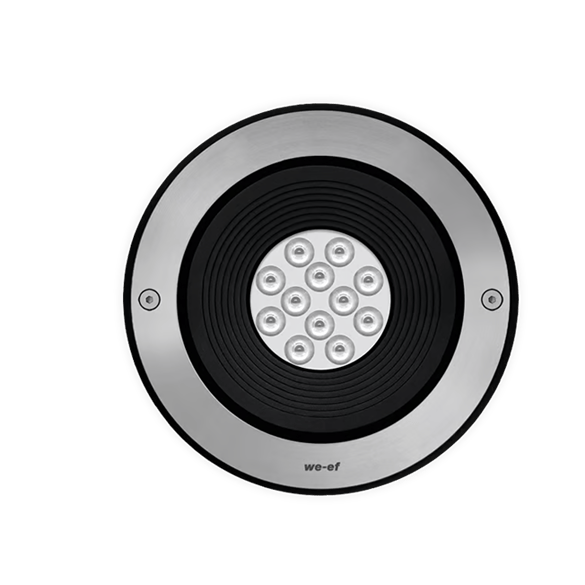

ETC330-FS CC LED COLOR CHANGER

RGBW Color Changer. IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. CAD-optimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. LED circuit board. Color Boost technology. Advanced thermal management protects LEDs while optimizing lumens output. LED boards can be easily removed for upgrading. DMX interface. For other control interface options to suit specific project requirements, contact WE-EF. The concrete-pour installation blockout is supplied as standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

ETC330-FS CC LED Schematics
Colours
Stainless Steel
Material
BodyLuminaire body constructed of deep drawn stainless steel. Outer housing composite material.
FastenersPCS polymer coated stainless steel
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10+
Ingress ProtectionIP69K
MountingSuitable for installation in concrete or earth. Suitable for walk-over and drive-over applications. Proper drainage and foundation support must be provided.
Electrical
Ballast / DriverIntegral EC electronic converter with DMX Interface
Cable3 feet of flexible PVC-free cable
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeLED >60,000 h Ta 25°C (L70/B10) Control gear >50,000 h Ta 25°C
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
185-7792symmetric, wide beam [W]LED-12/19W - RGBW/4K1330.620/80
185-7793symmetric, medium beam [M]LED-12/19W - RGBW/4K1326.720/80
Showing 1 to 2 of 2 entries.
