ETC300 series

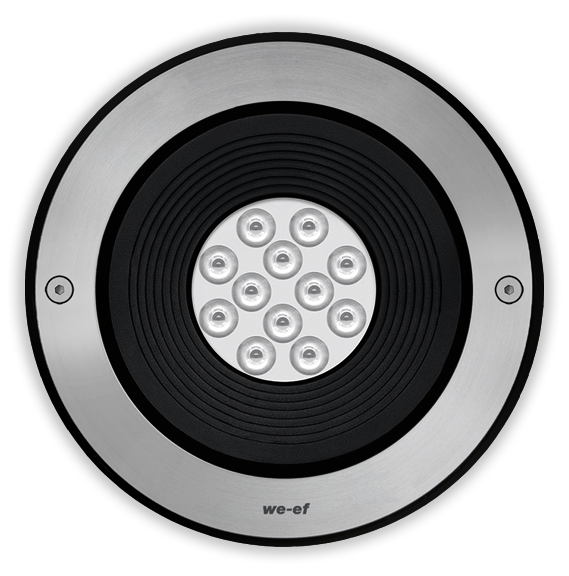

ETC330-FS TW LED TUNABLE WHITE

Tunable White. IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. CAD-optimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. LED circuit board. Tunable White technology. Advanced thermal management protects LEDs while optimizing lumens output. LED boards can be easily removed for upgrading. 0-10V Dimming. For other control interface options to suit specific project requirements, contact WE-EF. The concrete-pour installation blockout is supplied as standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black). + XXX-XXXX (Accessory 1)

ETC330-FS TW LED Schematics
Colours
Stainless Steel
Material
BodyLuminaire body constructed of deep drawn stainless steel. Outer housing composite material.
FastenersPCS polymer coated stainless steel
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10+
Ingress ProtectionIP69K - HIGHEST PROTECTION RATING AVAILABLE
MountingSuitable for installation in concrete or earth. Suitable for walk-over and drive-over applications. Proper drainage and foundation support must be provided.
Electrical
Ballast / DriverIntegral EC electronic converter with DALI Interface
Cable3 feet of flexible PVC-free cable
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeLED >60,000 h Ta 25°C (L70/B10) Control gear >50,000 h Ta 25°C
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
185-7789symmetric, wide beam [W]LED-12/19W - 2200-6000 K1758.380
185-7790symmetric, medium beam [M]LED-12/19W - 2200-6000 K201280
Showing 1 to 2 of 2 entries.
