ETC100 series

ETC140-GB LED ASC

Static White Colour Changer Tunable White

Choose a variant:

Choose a family:

Family Spec Sheet Installation Instructions More Downloads

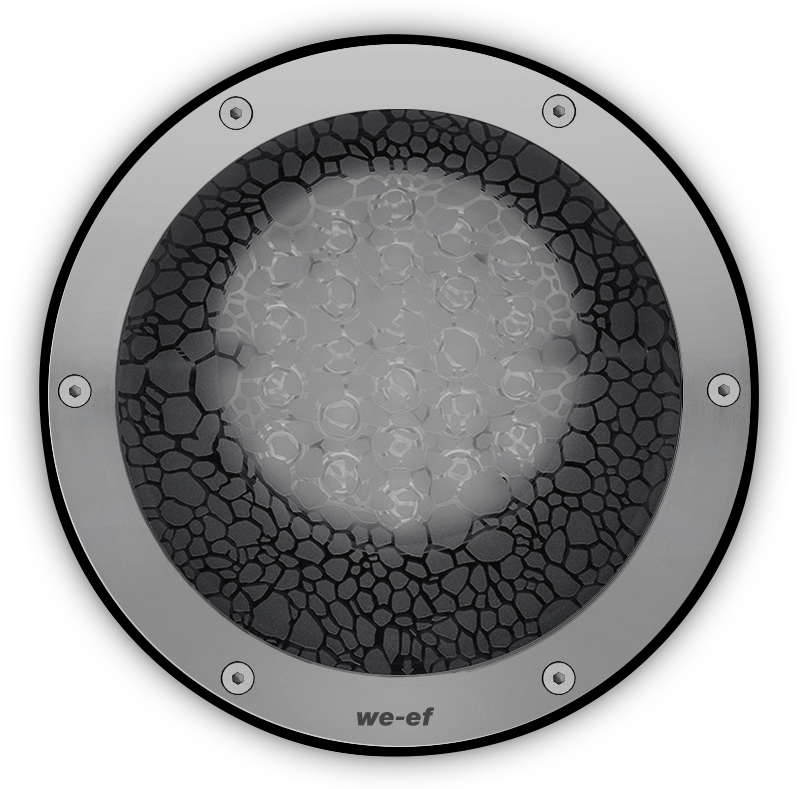

Anti-Slip ceramic Coating. IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Cable gland with spiral cable bending protection. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. PMMA LED Lens array. Factory-installed circuit board with High Efficiency LEDs. Gimbal mounted, 360° rotatable and 30° tiltable. 'No tool' removable gear/lens tray. The concrete-pour installation blockout is supplied as standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black). + XXX-XXXX (Accessory 1)

Colours

Stainless Steel

Material

Body	Luminaire body constructed of deep drawn stainless steel. Outer housing composite material.
Fasteners	PCS polymer coated stainless steel
Gasket	Silicone rubber gasket
Impact Protection	IK10+
Ingress Protection	IP69K - HIGHEST PROTECTION RATING AVAILABLE
Finish	Natural stainless steel
Corrosion Protection	5CE
Mounting	Suitable for installation in concrete or earth. Suitable for walk-over and drive-over applications. Proper drainage and foundation support must be provided.

Electrical

Ballast / Driver	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Cable	3 feet of flexible 18/3 cable
Power Supply	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Additional Information

LIFETIME	Ta=25°/40° L90B10 > 90000h
Dimming	0-10V available in request. Must be factory fitted.

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
185-6410	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-24/24W / 350 mA - 3000 K	3076.4	80
185-6411	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-24/24W / 350 mA - 4000 K	3374.2	80
185-6416	symmetric, very narrow beam [VN]	LED-24/24W / 350 mA - 3000 K	2824.6	80
185-6417	symmetric, very narrow beam [VN]	LED-24/24W / 350 mA - 4000 K	3098	80
185-6422	symmetric, medium beam [M]	LED-24/24W / 350 mA - 3000 K	2834.1	80
185-6423	symmetric, medium beam [M]	LED-24/24W / 350 mA - 4000 K	3108.3	80
185-6428	symmetric, wide beam [W]	LED-24/24W / 350 mA - 3000 K	2526.1	80
185-6429	symmetric, wide beam [W]	LED-24/24W / 350 mA - 4000 K	2770.6	80

Showing 1 to 8 of 8 entries.

Accessories

Item	Download
Product Images
Photometrics
Installation Instructions
WE-EF Technical Information - SJB Sealable junction box / Installation Instruction
WE-EF IP69K Ingrades Overview

Part-ID	Title	Specifications
		Text	PDF
185-2869	IW-ETC120_GB_LED Honeycomb louvre
185-2871	IW-ETC140_GB_LED
