ETC130-GB LED ASC
Family Spec Sheet Installation Instructions More Downloads

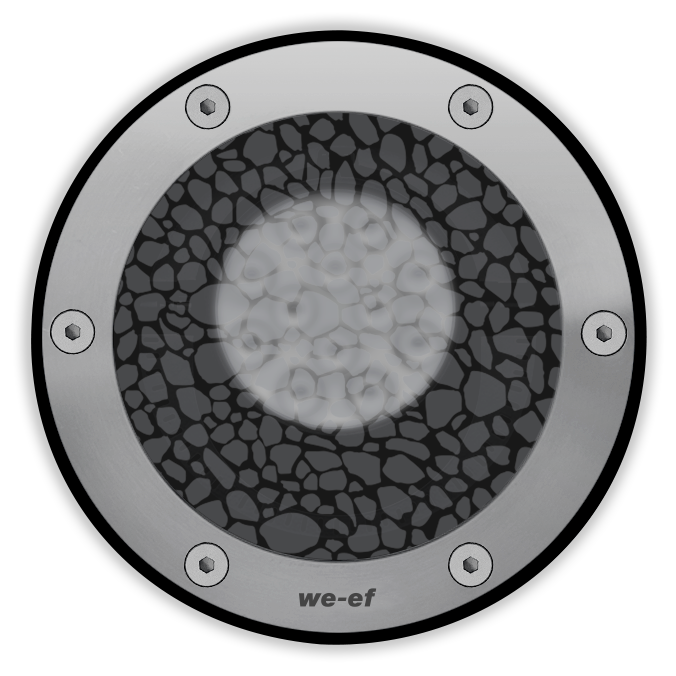

Anti-Slip ceramic Coating. ASC Lens light loss factor = 14.25%. IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Cable gland with spiral cable bending protection. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. Factory-installed circuit board with High Efficiency LEDs. 0-10V Dimming comes standard with luminaire. Gimbal mounted, 360° rotatable and 30° tiltable. 'No tool' removable gear/lens tray. Suitable for flush installation in concrete or earth. The concrete-pour installation blockout is supplied as standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

ETC130-GB LED ASC Schematics
Colours
Stainless Steel
Material
BodyLuminaire body constructed of deep drawn stainless steel. Outer housing composite material.
FastenersPCS polymer coated stainless steel
GasketSilicone rubber gasket
Impact ProtectionIK10+
Ingress ProtectionIP69K - HIGHEST PROTECTION RATING AVAILABLE
FinishNatural stainless steel
Corrosion Protection5CE
MountingSuitable for installation in concrete or earth. Suitable for walk-over and DRIVE-OVER applications. Proper drainage and foundation support must be provided.
Electrical
Ballast / DriverIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Cable3 feet of flexible 18/3 cable
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
Dimming0-10V available in request. Must be factory fitted.

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
185-2640symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/18W / 500 mA - 3000 K169780
185-2640linear spread, very narrow beam, 'sharp cut-off'LED-12/18W / 500 mA - 3000 K150280
185-2641symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/18W / 500 mA - 4000 K169780
185-2641linear spread, very narrow beam, 'sharp cut-off'LED-12/18W / 500 mA - 4000 K150280
185-2643symmetric, medium beam [M]LED-12/18W / 500 mA - 3000 K1650.280
185-2643linear spread, medium beam [M]LED-12/18W / 500 mA - 3000 K1541.780
185-2644symmetric, medium beam [M]LED-12/18W / 500 mA - 4000 K1650.280
185-2644linear spread, medium beam [M]LED-12/18W / 500 mA - 4000 K1541.780
185-2670symmetric, wide beam [W]LED-12/18W / 500 mA - 3000 K1457.180
185-2671symmetric, wide beam [W]LED-12/18W / 500 mA - 4000 K1457.180
185-2676symmetric, very narrow beam [VN]LED-12/18W / 500 mA - 3000 K1586.280
185-2676linear spread, very narrow beam [VN]LED-12/18W / 500 mA - 3000 K1393.280
185-2677symmetric, very narrow beam [VN]LED-12/18W / 500 mA - 4000 K1586.280
185-2677linear spread, very narrow beam [VN]LED-12/18W / 500 mA - 4000 K1393.280
