ETC100/300 | Fixed

50 mm 50 mm 65 mm 65 mm
ETC109 Standard Depth100 mm 100 mm 95 mm 95 mm
ETC11_ Standard Depth150 mm 150 mm 160 mm 160 mm
ETC329 Reduced Depth180 mm 180 mm 252 mm 252 mm
ETC339 Reduced Depth
1W 2W 3W
Home
Products
Inground Luminaires

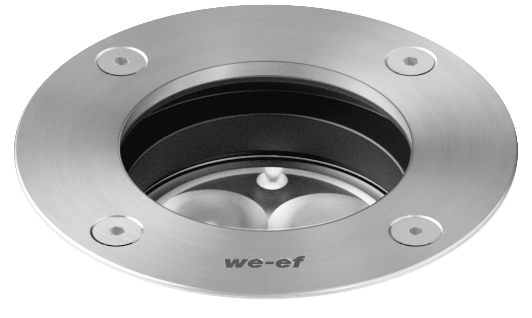

ETC110-3 LED

ETC110-3 LED

Family Spec Sheet

IP67. 12V - 24V AC/DC. Class III. IK09. Stainless steel construction. PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free cable. CAD-optimized optics for superior illumination and glare control. Driver required; to be ordered separately. Factory-installed LED circuit board. Suitable for flush installation in concrete or earth. Deep concrete-pour installation blockout supplied as standard with luminaire. IP68 in-line connector facilitates easy removal for off-site lamp replacement. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

ETC110-3 LED Schematics
Colors
Material

Body: Luminaire body constructed of stainless steel. Outer housing composite material.

Fasteners: PCS polymer coated stainless steel

Gasket: Silicone rubber gasket

Impact Protection: IK09

Ingress Protection: IP67

Finish: Natural stainless steel

Corrosion Protection: 5CE

Mounting: Suitable for installation in concrete. Suitable for walk-over and drive-over applications. Proper drainage and foundation support must be provided.

Electrical

Ballast / Driver: N/A

Cable: 3 feet of flexible 18/3 cable

Power Factor:

Power Supply: Requires remote [RT] mounted 120-12 volt AC Class 2 power supply, to be ordered separately

Surge Protection:

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

:

:

Light Distribution

Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
185-2777symmetric, medium beam [M]LED-3/3W / 24V AC/DC - 3000 K353.580
185-2778symmetric, very narrow beam [VN]LED-3/3W / 24V AC/DC - 3000 K361.380
185-2778linear spread, very narrow beam [VN]LED-3/3W / 24V AC/DC - 3000 K334.380
185-2779symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-3/3W / 24V AC/DC - 3000 K361.280
185-2779linear spread, very narrow beam, 'sharp cut-off'LED-3/3W / 24V AC/DC - 3000 K343.180
185-2782symmetric, medium beam [M]LED-3/3W / 24V AC/DC - 4000 K387.780
185-2783symmetric, very narrow beam [VN]LED-3/3W / 24V AC/DC - 4000 K396.380
185-2783linear spread, very narrow beam [VN]LED-3/3W / 24V AC/DC - 4000 K366.780
185-2784symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-3/3W / 24V AC/DC - 4000 K396.280
185-2784linear spread, very narrow beam, 'sharp cut-off'LED-3/3W / 24V AC/DC - 4000 K376.380
185-3538symmetric, medium beam [M]LED-3/3W / 24V AC/DC - 2700 K330.780
185-3193symmetric, very narrow beam [VN]LED-3/3W / 24V AC/DC - 2700 K33880
185-3539symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-3/3W / 24V AC/DC - 2700 K337.980
185-3193linear spread, very narrow beam [VN]LED-3/3W / 24V AC/DC - 2700 K312.880
185-3539linear spread, very narrow beam, 'sharp cut-off'LED-3/3W / 24V AC/DC - 2700 K32180
Showing 1 to 15 of 15 Entries

Accessories

Part-IDTitlePDFOpen Data
Please select an accessory category
ItemDownloadMail Link
Product Images
Light Distributions
Install Instructions
Manual

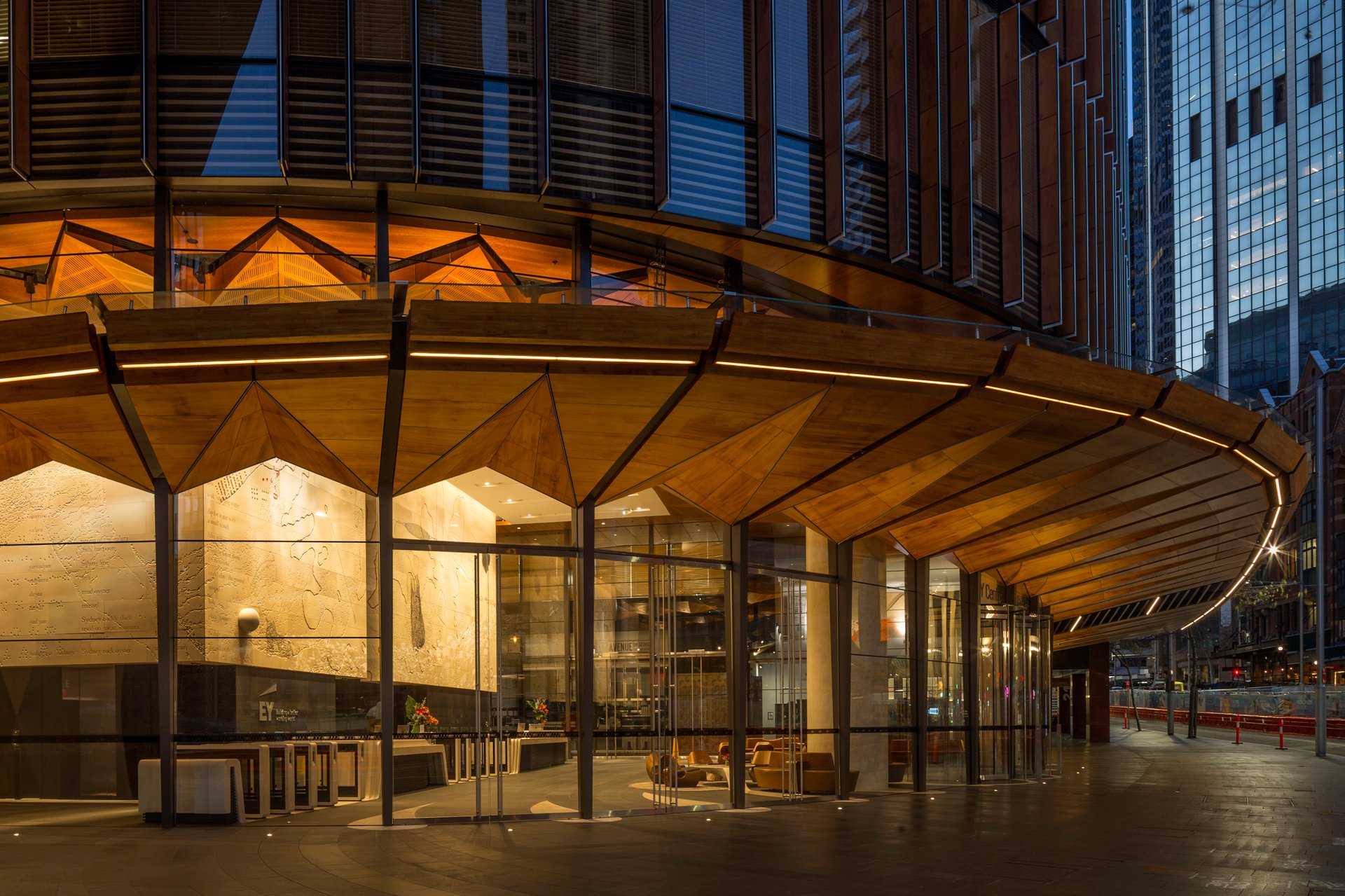

Projects utilizing the ETC110-3 LED
