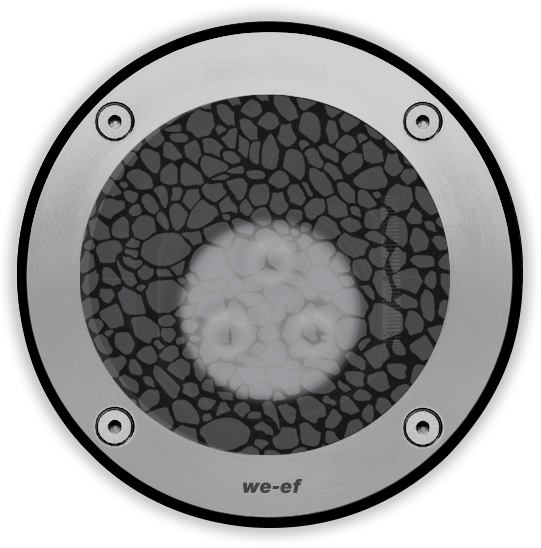

ETC120-GB LED ASC
IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Cable gland with spiral cable bending protection. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. Factory-installed circuit board with High Efficiency LEDs. Gimbal mounted, 20° tilt and 355° rotatable. Suitable for flush installation in concrete or earth. The concrete-pour installation blockout is supplied as standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Couleurs
Description du matériel
| Corps | Luminaire body constructed of deep drawn stainless steel. Outer housing composite material. |
| Visserie | PCS polymer coated stainless steel |
| Joint | Silicone rubber gasket |
| IK | IK10+ |
| IP | IP69K - HIGHEST PROTECTION RATING AVAILABLE |
| Finition | Natural stainless steel |
| Protection contre la corrosion | 5CE |
| Montage | Suitable for installation in concrete or earth. Suitable for walk-over and drive-over applications. Proper drainage and foundation support must be provided. |
Description électrique
| Câble | 3 feet of flexible 18/3 cable |
| Alimentation électrique | Integral [ECG] electronic driver 120V-277V |
Informations complémentaires
| Lifetime | Ta=25°/40° L90B10 > 90000h |
