FLC311 Spigot mounted

Back
Wallbracket
Spigot Mounted
Surface Mounted
Family Spec Sheet
FLC301 FLC301 58 mm 58 mm

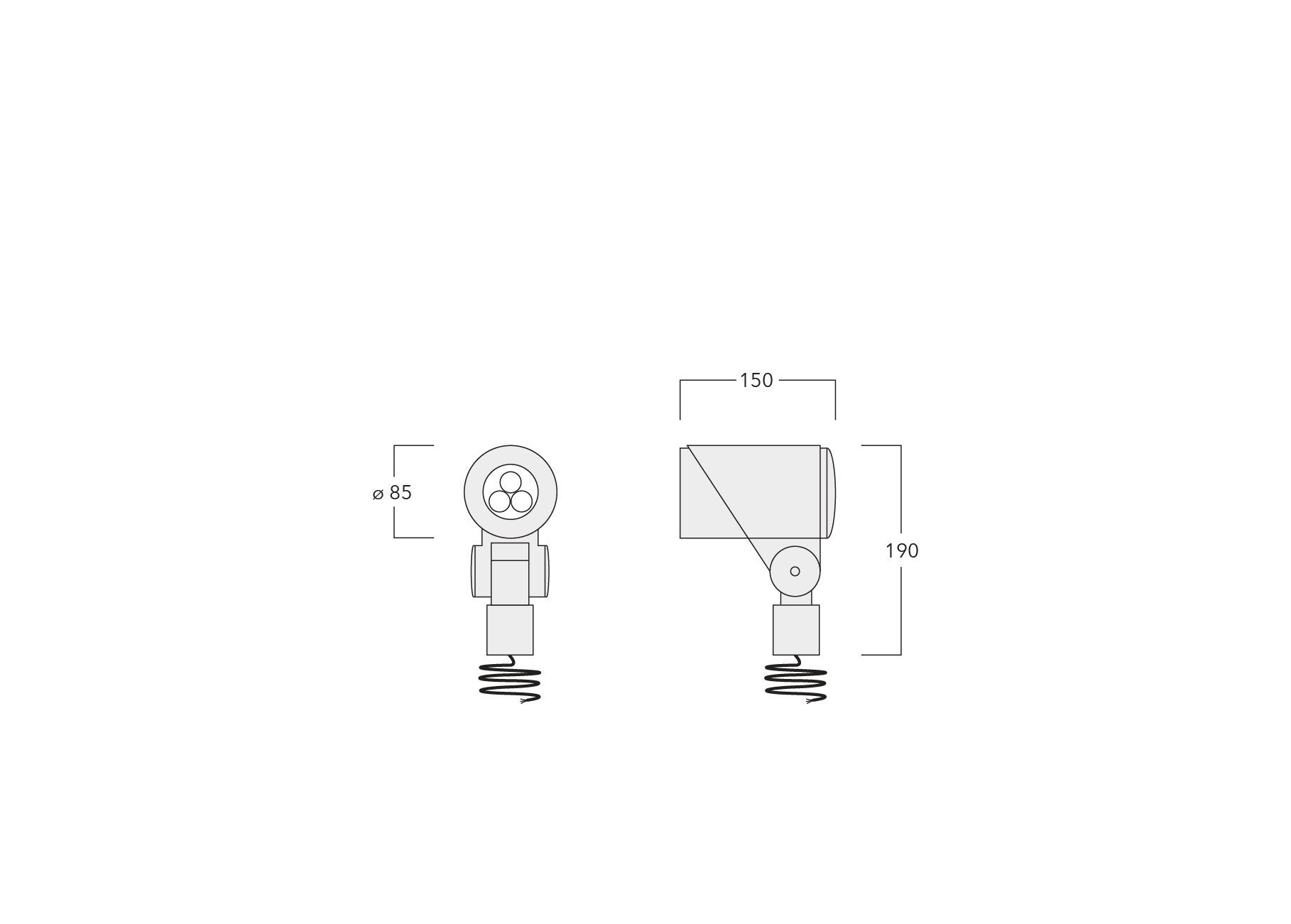

FLC311 FLC311 85 mm 85 mm
FLC321 FLC321 115 mm 115 mm

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°.
Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Including 1.5 m of flexible PVC free cable. Mains voltage versions, ON-OFF Class I. 1-10 V analogue dimming or DALI interface available on request; refer to accessory listings. Optical accessories are factory-installed. To be specified at time of ordering.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK08
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
BefestigungSlipfitter suitable for mounting accessories

Elektrik

LED TreiberIntegral EC electronic converter
KabelIncluding 1.5 m of flexible PVC free cable
Leistungsfaktor>0.9
Netz
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=25° L90B10 > 90000h
Energy efficiency classD-E (Light source)

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
145-7600symmetric, wide beam [B]LED-3/6W / 180 mA - 2700 K595.480EC1.60
145-7603symmetric, wide beam [B]LED-3/6W / 180 mA - 3000 K595.480EC1.60
145-7606symmetric, wide beam [B]LED-3/6W / 180 mA - 4000 K641.280EC1.60
145-7601symmetric, wide beam [B]LED-3/9W / 250 mA - 2700 K835.880EC1.60
145-7604symmetric, wide beam [B]LED-3/9W / 250 mA - 3000 K835.880EC1.60
145-7607symmetric, wide beam [B]LED-3/9W / 250 mA - 4000 K893.180EC1.60
145-7602symmetric, wide beam [B]LED-3/12W / 350 mA - 2700 K1122.180EC1.60
145-7605symmetric, wide beam [B]LED-3/12W / 350 mA - 3000 K1122.180EC1.60
145-7608symmetric, wide beam [B]LED-3/12W / 350 mA - 4000 K1213.780EC1.60
145-7609symmetric, medium beam [M]LED-3/6W / 180 mA - 2700 K600.480EC1.60
145-7612symmetric, medium beam [M]LED-3/6W / 180 mA - 3000 K600.480EC1.60
145-7615symmetric, medium beam [M]LED-3/6W / 180 mA - 4000 K646.680EC1.60
145-7610symmetric, medium beam [M]LED-3/9W / 250 mA - 2700 K842.980EC1.60
145-7613symmetric, medium beam [M]LED-3/9W / 250 mA - 3000 K842.980EC1.60
145-7616symmetric, medium beam [M]LED-3/9W / 250 mA - 4000 K900.680EC1.60
145-7611symmetric, medium beam [M]LED-3/12W / 350 mA - 2700 K1131.680EC1.60
145-7614symmetric, medium beam [M]LED-3/12W / 350 mA - 3000 K1131.680EC1.60
145-7617symmetric, medium beam [M]LED-3/12W / 350 mA - 4000 K122480EC1.60
145-7618symmetric, very narrow beam [EE]LED-3/6W / 180 mA - 2700 K605.280EC1.60
145-7621symmetric, very narrow beam [EE]LED-3/6W / 180 mA - 3000 K605.280EC1.60
145-7624symmetric, very narrow beam [EE]LED-3/6W / 180 mA - 4000 K651.780EC1.60
145-7619symmetric, very narrow beam [EE]LED-3/9W / 250 mA - 2700 K849.680EC1.60
145-7622symmetric, very narrow beam [EE]LED-3/9W / 250 mA - 3000 K849.680EC1.60
145-7625symmetric, very narrow beam [EE]LED-3/9W / 250 mA - 4000 K907.880EC1.60
145-7620symmetric, very narrow beam [EE]LED-3/12W / 350 mA - 2700 K1140.580EC1.60
Showing 1 to 25 of 63 Entries
