FLC300

Wallbracket Spigot Mounted Surface Mounted

58 mm

FLC301

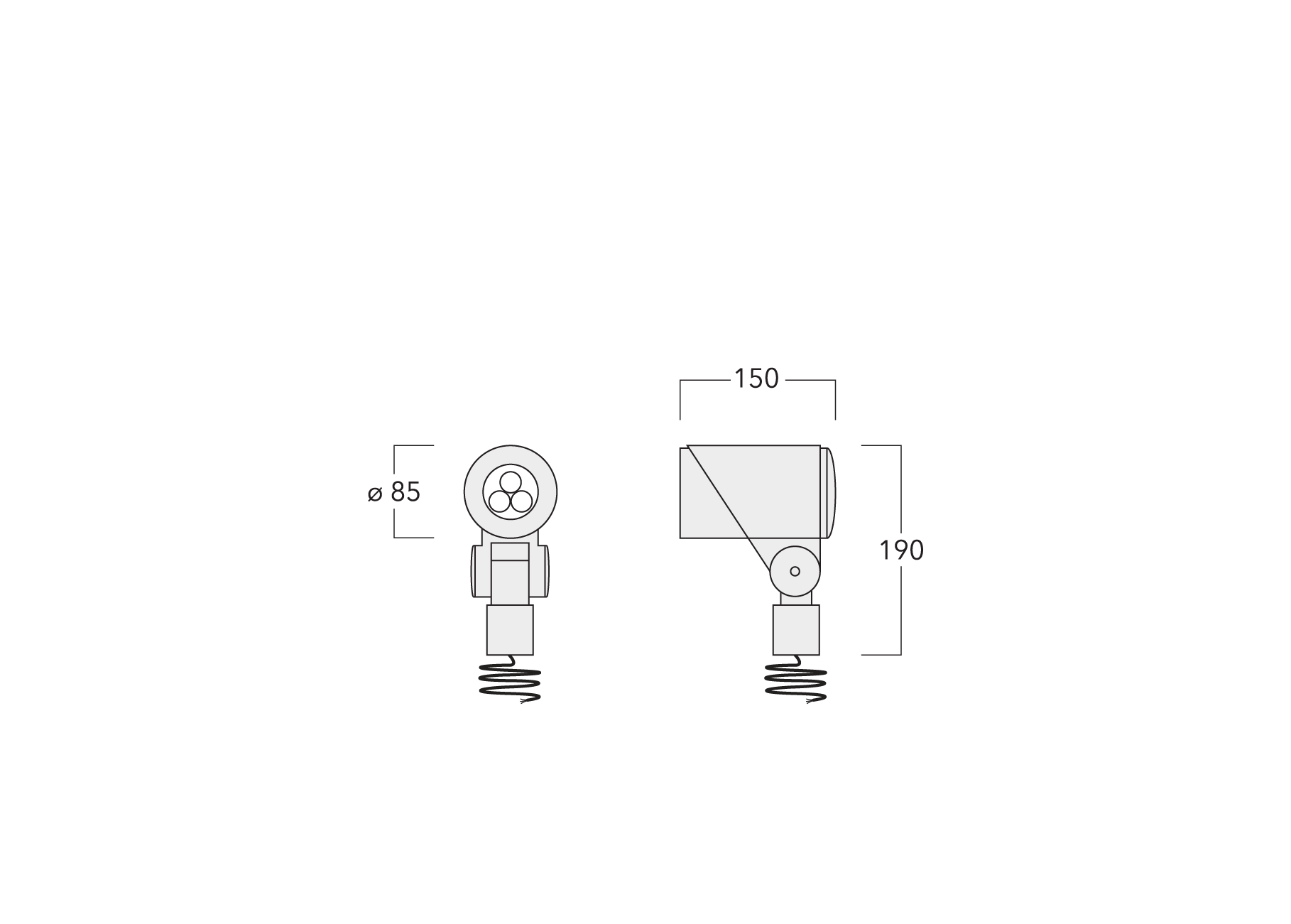

FLC311 Spigot mounted

Family Spec Sheet

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Including 1.5 m of flexible PVC free cable. Mains voltage versions, DALI interface Class I. 1-10 V analogue dimming available on request; refer to accessory listings. DALI interface Class II available on request; refer to accessory listings. 24VDC low voltage versions, 0-10 V analogue dimming or DALI interface Class III available on request. Remote 24VDC power supply to be ordered separately.

Colors

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

RAL8019 Grey brown

Powdercoat finish available in 35 different colours

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK08
Ingress Protection	IP66
Finish
Corrosion Protection	5CE
Mounting	Slipfitter suitable for mounting accessories

Electrical

Ballast / Driver	DALI interface
Cable	Including 1.5 m of flexible PVC free cable
Power Factor	>0.9
Power Supply
Surge Protection

Additional Information

Lifetime	Ta=25° L90B10 > 90000h

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-7600	symmetric, wide beam [B]	LED-3/6W / 180 mA - 2700 K	595.4	80
145-7603	symmetric, wide beam [B]	LED-3/6W / 180 mA - 3000 K	595.4	80
145-7606	symmetric, wide beam [B]	LED-3/6W / 180 mA - 4000 K	641.2	80
145-7791	symmetric, wide beam [B]	LED-3/6W / 700 mA - 3000 K	663.8	80
145-7790	symmetric, wide beam [B]	LED-3/6W / 700 mA - 2700 K	618	80
145-7792	symmetric, wide beam [B]	LED-3/6W / 700 mA - 4000 K	709.6	80
145-7601	symmetric, wide beam [B]	LED-3/9W / 250 mA - 2700 K	835.8	80
145-7604	symmetric, wide beam [B]	LED-3/9W / 250 mA - 3000 K	835.8	80
145-7607	symmetric, wide beam [B]	LED-3/9W / 250 mA - 4000 K	893.1	80
145-7602	symmetric, wide beam [B]	LED-3/12W / 350 mA - 2700 K	1122.1	80
145-7605	symmetric, wide beam [B]	LED-3/12W / 350 mA - 3000 K	1122.1	80
145-7608	symmetric, wide beam [B]	LED-3/12W / 350 mA - 4000 K	1213.7	80
145-7609	symmetric, medium beam [M]	LED-3/6W / 180 mA - 2700 K	600.4	80
145-7612	symmetric, medium beam [M]	LED-3/6W / 180 mA - 3000 K	600.4	80
145-7615	symmetric, medium beam [M]	LED-3/6W / 180 mA - 4000 K	646.6	80
145-7793	symmetric, medium beam [M]	LED-3/6W / 700 mA - 2700 K	622.9	80
145-7794	symmetric, medium beam [M]	LED-3/6W / 700 mA - 3000 K	669	80
145-7795	symmetric, medium beam [M]	LED-3/6W / 700 mA - 4000 K	715.2	80
145-7610	symmetric, medium beam [M]	LED-3/9W / 250 mA - 2700 K	842.9	80
145-7613	symmetric, medium beam [M]	LED-3/9W / 250 mA - 3000 K	842.9	80
145-7616	symmetric, medium beam [M]	LED-3/9W / 250 mA - 4000 K	900.6	80
145-7611	symmetric, medium beam [M]	LED-3/12W / 350 mA - 2700 K	1131.6	80
145-7614	symmetric, medium beam [M]	LED-3/12W / 350 mA - 3000 K	1131.6	80
145-7617	symmetric, medium beam [M]	LED-3/12W / 350 mA - 4000 K	1224	80
145-7618	symmetric, very narrow beam [EE]	LED-3/6W / 180 mA - 2700 K	605.2	80
