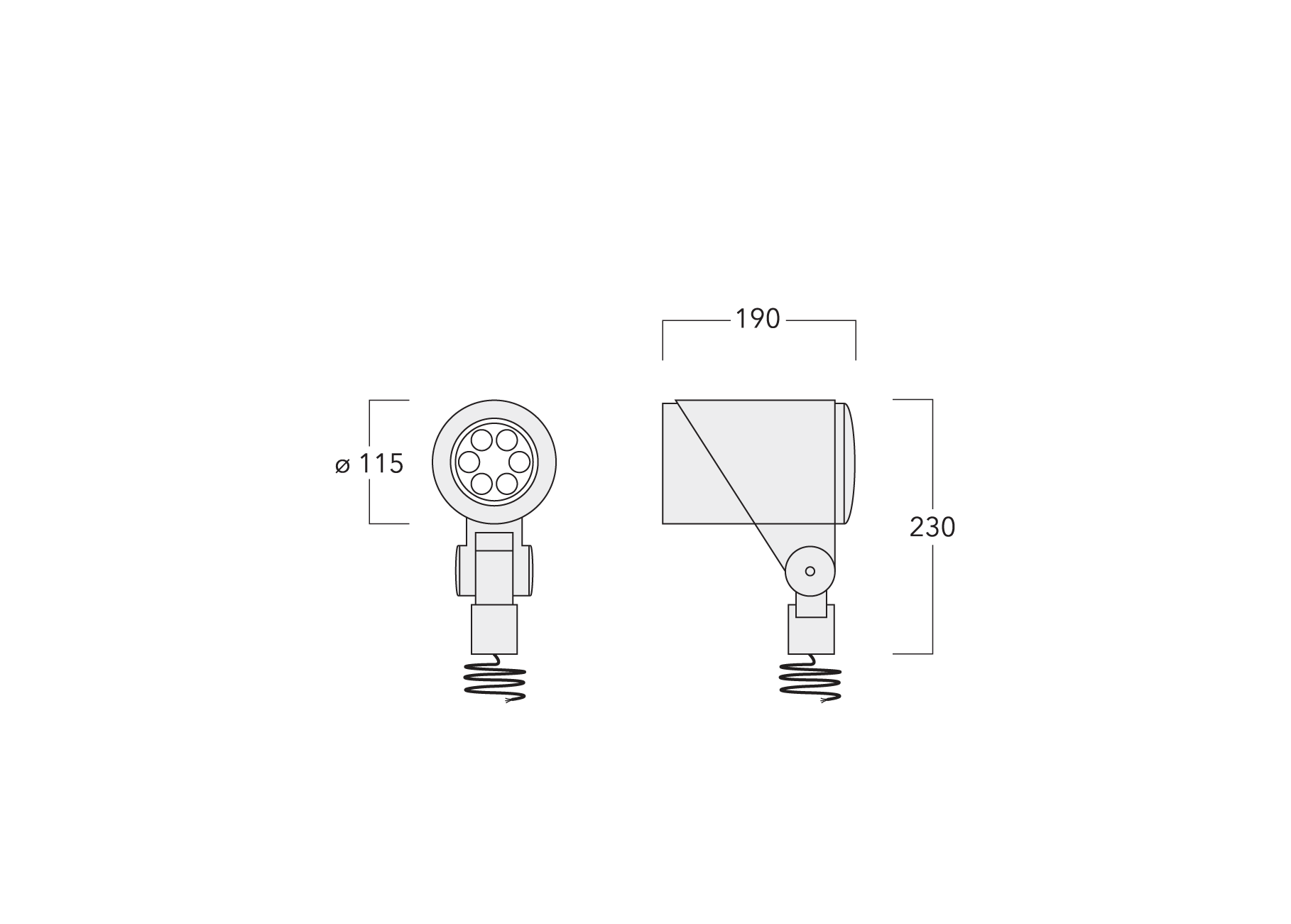

FLC321 Spigot mounted

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Including 1.5 m of flexible PVC free cable. Knuckle permits 340° rotation, forward tilt 54° and backward tilt 90°. Mains voltage versions, ON-OFF Class I. 1-10 V analogue dimming or DALI interface available on request; refer to accessory listings. Optical accessories are factory-installed. To be specified at time of ordering.

Colours

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK08
Ingress Protection	IP66
Corrosion Protection	5CE
Mounting	Slipfitter suitable for mounting accessories

Electrical

Ballast / Driver	Integral EC electronic converter
Cable	Including 1.5 m of flexible PVC free cable
Power Factor	>0.9

Additional Information

Lifetime	Ta=25° L90B10 > 90000h
Energy efficiency class	C-D (Light source)

Light Distribution

Delivered Lumen

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-9943	symmetric, wide beam [B]	LED-6/12W / 700 mA - 2700 K	887.8	80
145-9945	symmetric, wide beam [B]	LED-6/12W / 700 mA - 3000 K	953.5	80
145-9947	symmetric, wide beam [B]	LED-6/12W / 700 mA - 4000 K	1019.3	80
145-9949	symmetric, medium beam [M]	LED-6/12W / 700 mA - 2700 K	1162.6	80
145-9951	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1248.7	80
145-9953	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1334.9	80
145-9955	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 2700 K	1224.7	80
145-9957	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 3000 K	1315.4	80
145-9959	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 4000 K	1406.2	80
145-9961	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 2700 K	1259.7	80
145-9963	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 3000 K	1353	80
145-9965	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 4000 K	1446.3	80
145-9944	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 2700 K	1233	80
145-9946	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 3000 K	1331.7	80
145-9948	symmetric, wide beam [B]	LED-6/18W / 1050 mA - 4000 K	1413.9	80
145-9950	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 2700 K	1614.8	80
145-9952	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 3000 K	1743.9	80
145-9954	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 4000 K	1851.6	80
145-9956	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 2700 K	1701	80
145-9958	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 3000 K	1837.1	80
145-9960	symmetric, very narrow beam [EE]	LED-6/18W / 1050 mA - 4000 K	1950.5	80
145-9962	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 2700 K	1749.6	80
145-9964	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 3000 K	1889.5	80
145-9966	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/18W / 1050 mA - 4000 K	2006.2	80
145-7320	symmetric, wide beam [B]	LED-6/26W / 1400 mA - 2700K	1665.8	80

Showing 1 to 25 of 63 Entries

Accessories

Optical Accessories

Control

Mounting Accessories

	Part-ID	Title	PDF	Open Data
	145-9992	IO-360-FLC321
