The Intelligence of Light

Controls and Connectivity for Smart City Solutions

Download Presentation

Dynamic lighting solutions offer flexible, intelligent options that enhance functionality and aesthetics in urban spaces. WE-EF provides energy-efficient, responsive lighting that adjusts to motion, improving safety, reducing energy use, and enhancing the user experience. This adaptability is key for Smart City lighting, where IoT devices and data analytics optimize urban services.

Eco Step Dim by WE-EF


Benefits of WE-EF Controls Solutions

Test

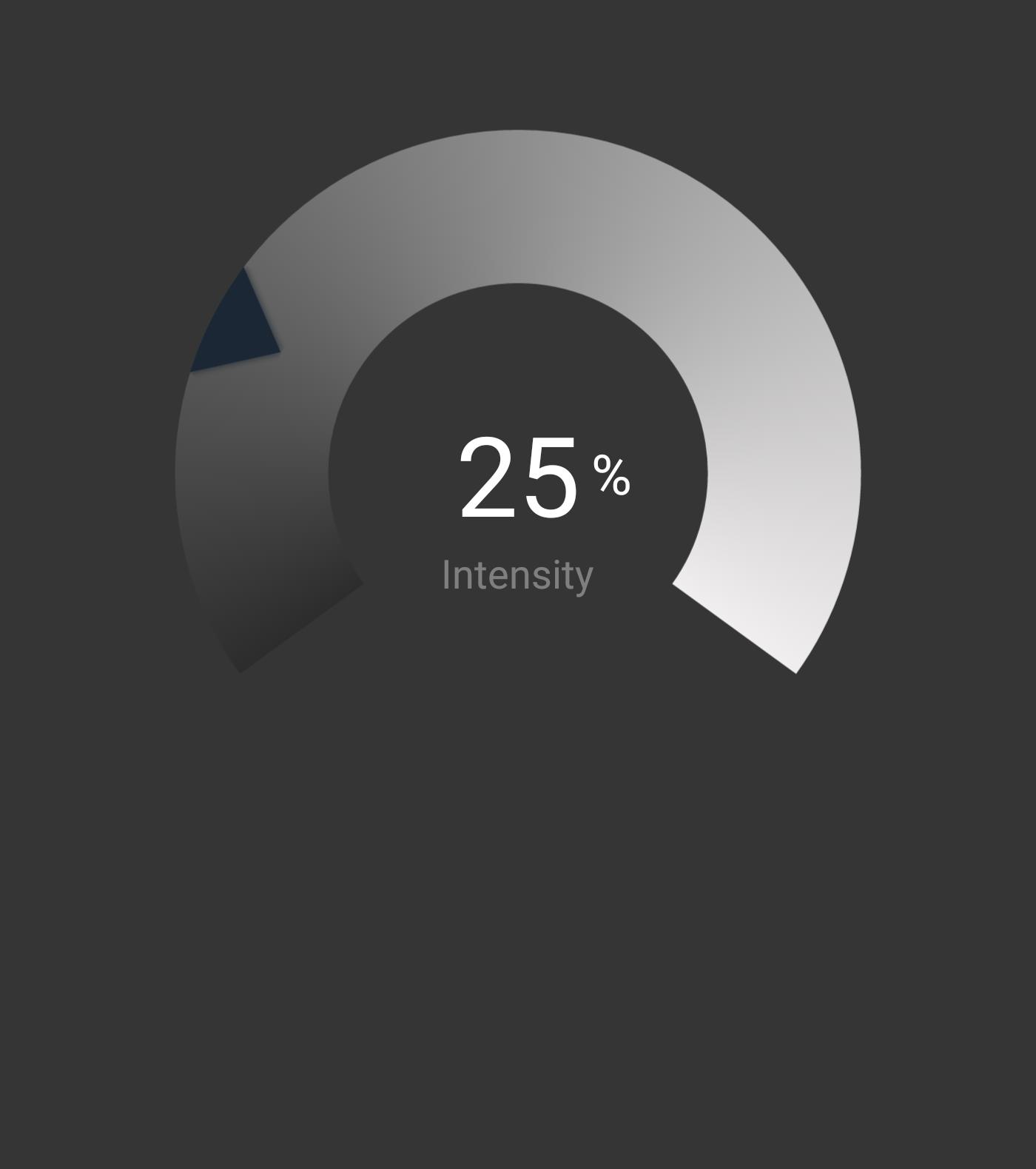

Energy Saving

Test

Comfort

Test

Reduce Maintenance Cost

Test

Safety

Test

Protect Nature

Test

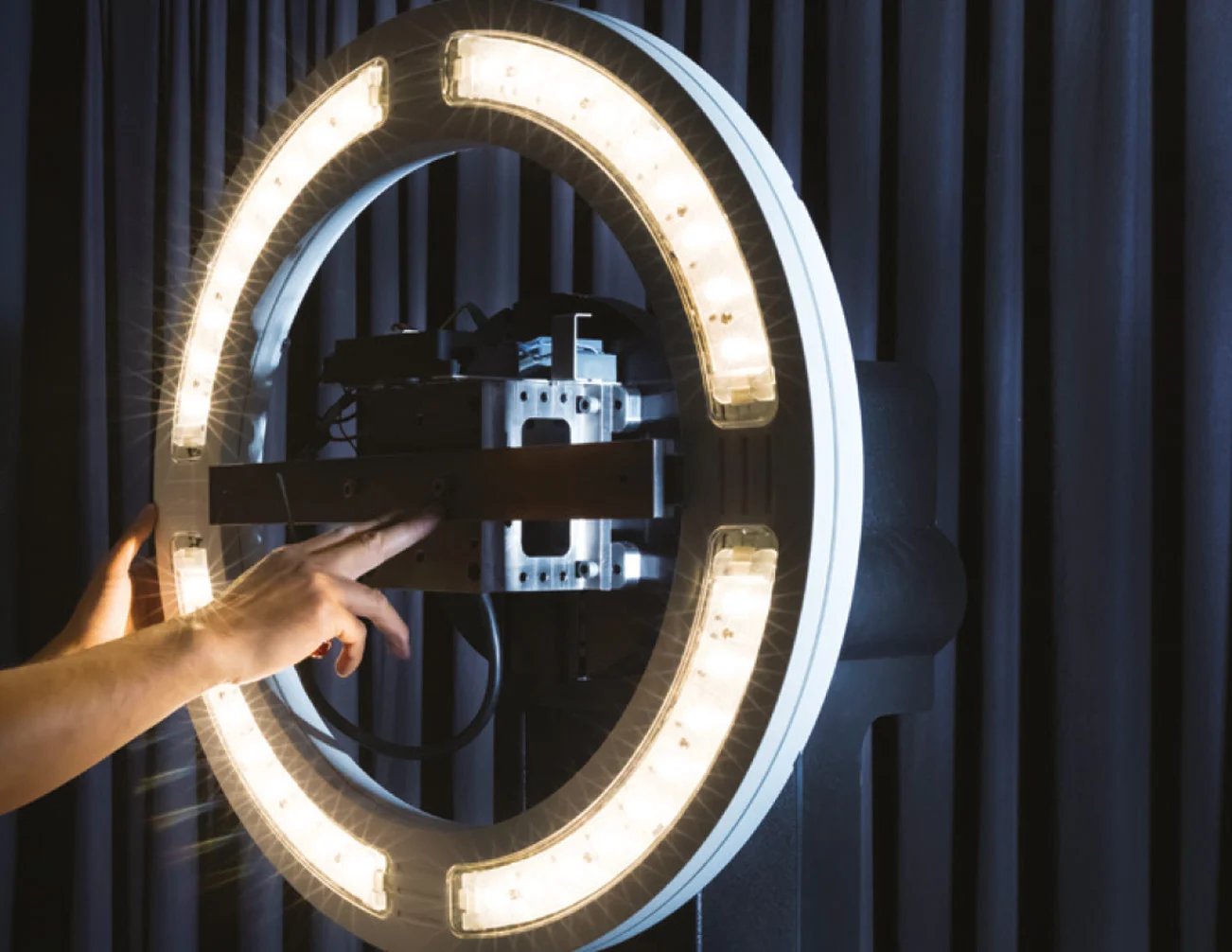

Design and Effects

Choose the version of ECO Step Dim® that fits your application

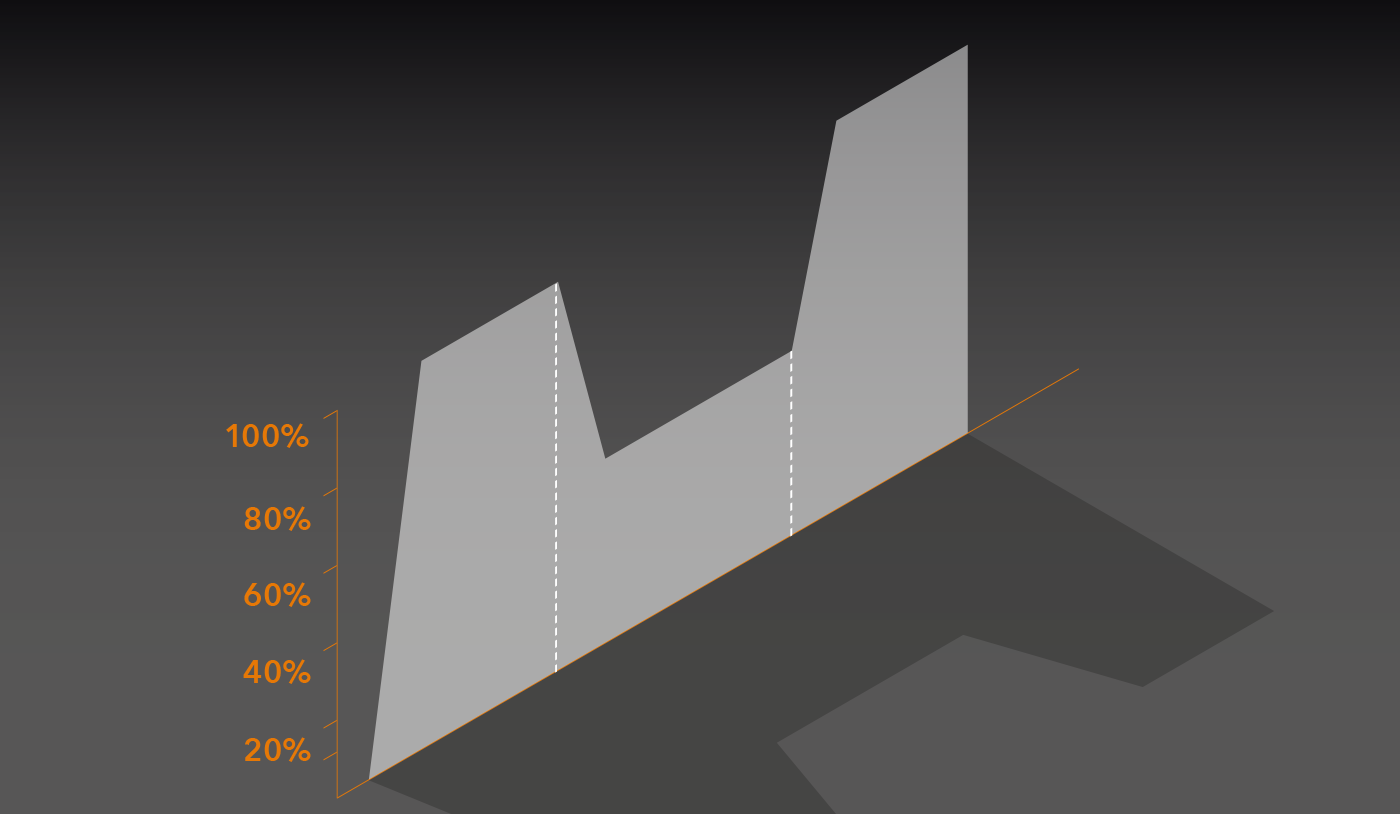

Eco Step Dim Basic

A factory-programmed electronic controller reduces luminous flux to a preset value. One dimming level is programmed, typically reducing light from 100% to 55%, with the option for other dimming settings upon request. This version requires control phases (L’) to activate the switch.

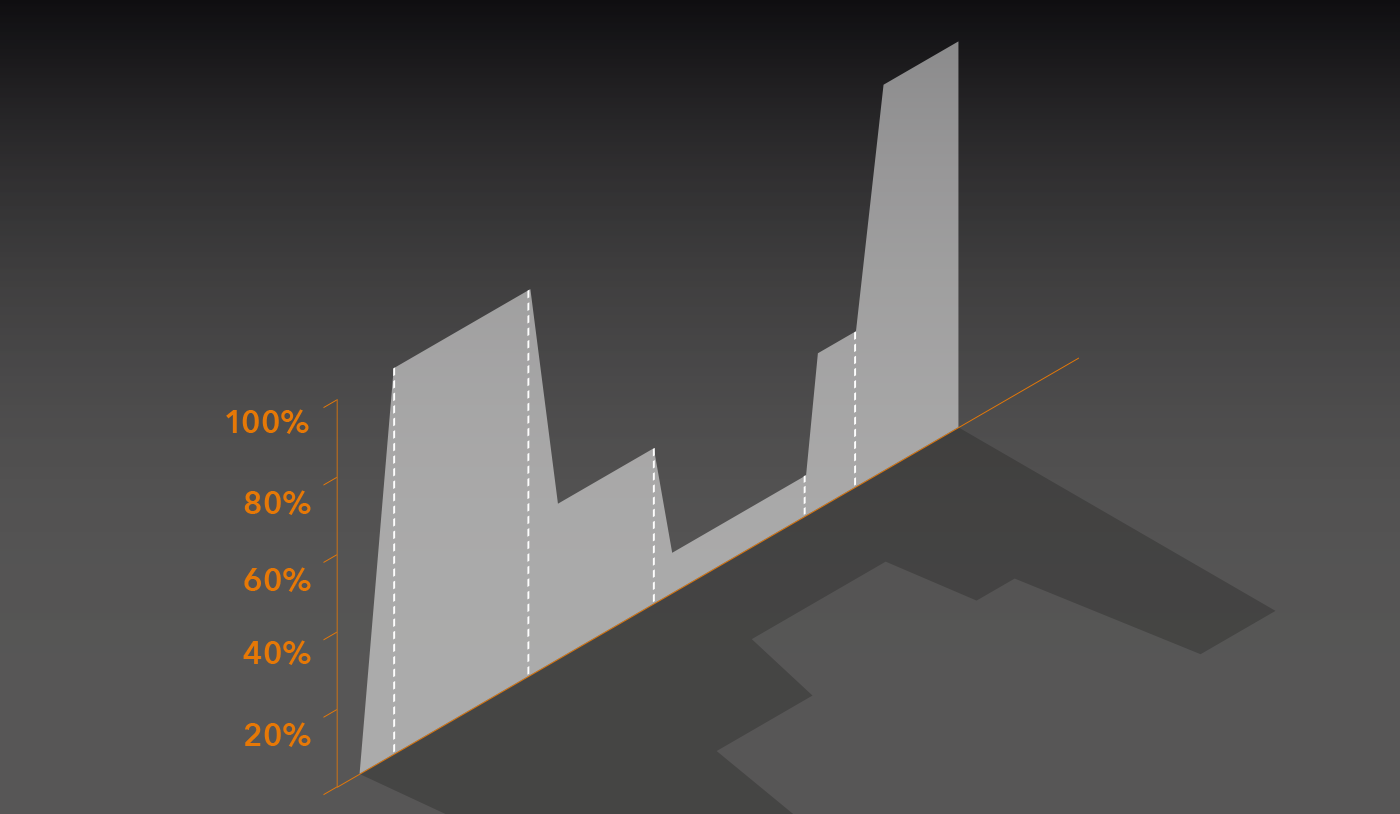

Eco Step Dim Advanced

A factory-programmed, multi-step electronic controller reduces luminous flux and power. No separate power source is required, and five dimming levels can be pre-programmed, with the option for on-site reprogramming. Luminaires are switched on/off via a photocell or timer.

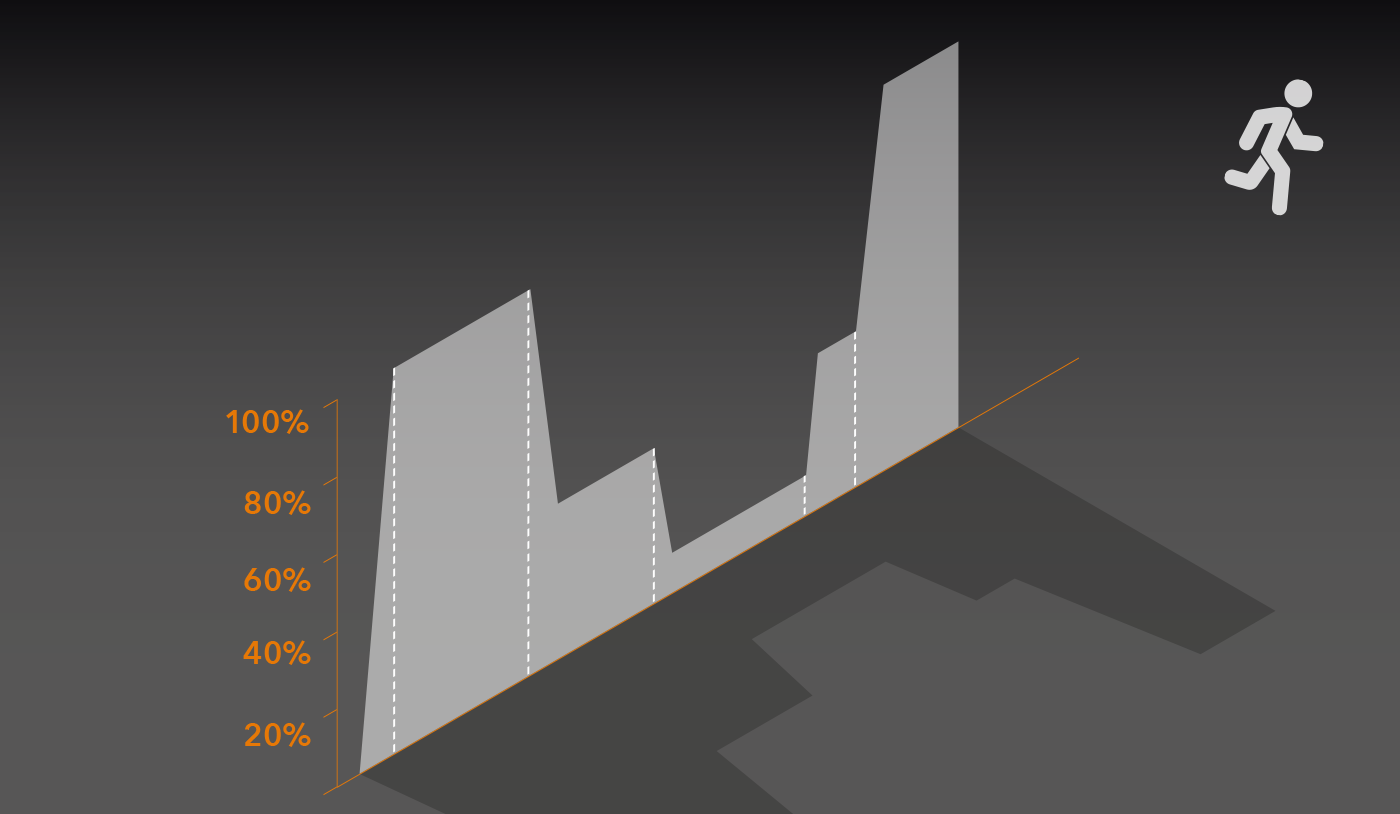

Motion and Advanced Motion

Eco Step Dim® Motion uses PIR sensors to adjust lighting based on detected motion. When no motion is detected, the system dims the lights to a lower setting, such as 20%. When motion is detected, the lights are ramped up to a predefined level, following the movement of people through the area.
 Advanced Motion combines programming with 5 dimming levels and a motion sensor (still under development for standalone solutions).

Service Packages

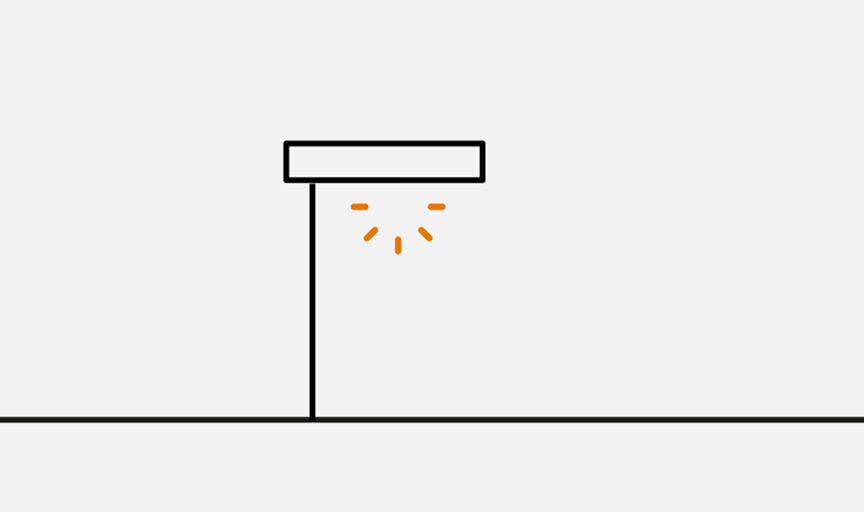

Energy saving

WE-EF supplies and configures luminaires and the Eco Step Dim® Motion system once ex works or on site. Reconfiguration is available as a service (chargeable). Gateway/app not included.
 Applications: individual communal projects, isolated solutions and field trials for smart lighting, e.g., single streets, paths or squares. Semi-public or private projects, e.g., company site, car park.
 + Lower cost  + Simple installation

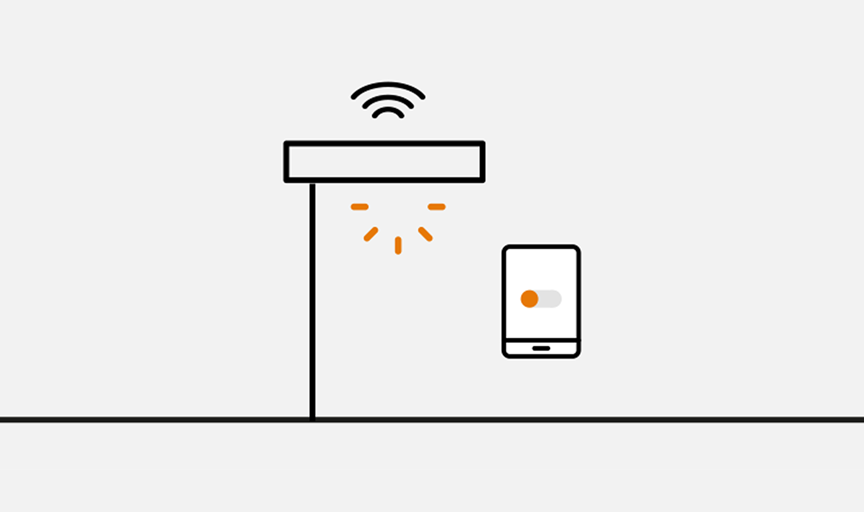

Energy saving optimisation

Dongle or apps included; operators can configure, change and service the Eco Step Dim® Motion system themselves (on site) using the apps on their mobile device.
 Applications: Public spaces projects (street, square, district) or private projects (larger company sites, commercial estates) if qualified personnel are available for the operation of the system. Changes by WE-EF are subject to a fee. Further licences and details of the included services on request.  Adaptable to changes in human traffic
 + Adjust settings post installation  + Network capacity + Future proofed + Lighting only when required  + Easily integrated with existing installations

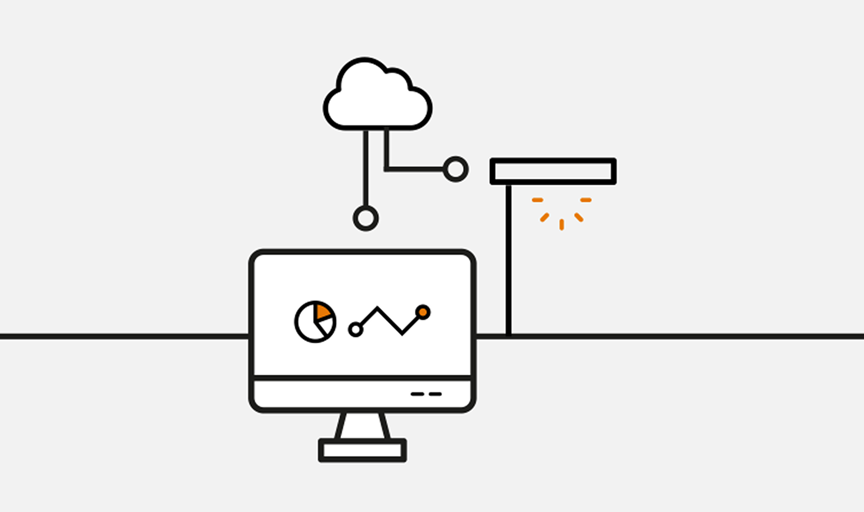

Remote control service

Internet gateway (via mobile phone) and dashboard included; operators can configure, change and service themselves (remotely). Networked Smart-City functions (data collection, remote maintenance, etc.).
 Applications: larger communal projects or field trials in the context of Smart City; operator has qualified personnel (municipal utilities). Including ongoing support for one year, changes by WE-EF are subject to a fee. Further licences and details on the included services on request.
 + Adaptable to changes in human traffic + Adjust settings post installation  + Network capacity  + Future proofed  + Lighting only when required  + Easily integrated with existing installations  + Monitoring/reporting capacity

Intelligently Illuminating the Bay Run


Enhancing Safety, Comfort and Sustainability
with Dynamic Lighting

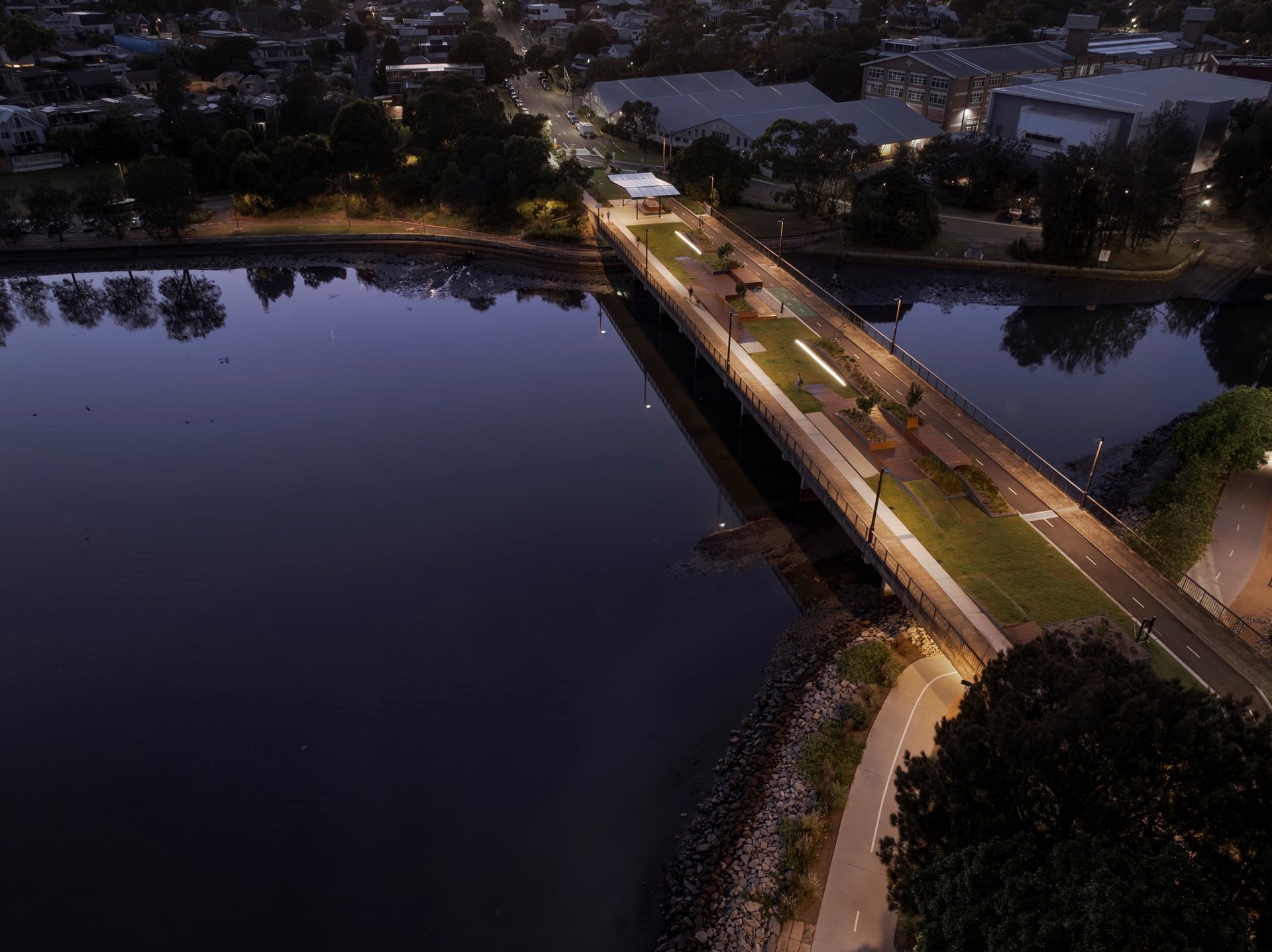

The Bay Run is a scenic and much-loved 7 km walking and cycling loop around Iron Cove Bay in Haberfield, NSW, attracting around 5,000 users each day. Recognising its popularity, the Inner West Council initiated a lighting upgrade to improve safety and usability while protecting the local ecosystem. The project marked the first collaboration between Buckford Illumination Group NSW and WE-EF LIGHTING.

The Lighting Brief

The objective was to create a smart, energy-efficient lighting solution that enhanced the user experience and ensured safety without compromising the surrounding environment. Key challenges included minimising light spill into the bay, managing energy use with adaptive controls, and selecting fixtures robust enough to withstand harsh coastal conditions. Ongoing community engagement also played a vital role in shaping the final solution.


WE-EF Solution

Working alongside lighting designers from Lighting, Art & Science, engineers from Northrop, and electrical contractor Thorntek, Buckford Illumination Group NSW implemented a system using WE-EF luminaires with motion sensors and dimming capability. Lights dim to 50% after midnight, brightening only when human activity is detected—balancing safety and sustainability. The chosen products also offer long-term durability with 10-year warranties and advanced corrosion protection.

“The motion control sensors allow us to reduce energy up to 80% and minimise light pollution. The new lighting across the Bay Run produces a safer, greener and more attractive space.”

Craig Thornton, Thorntek

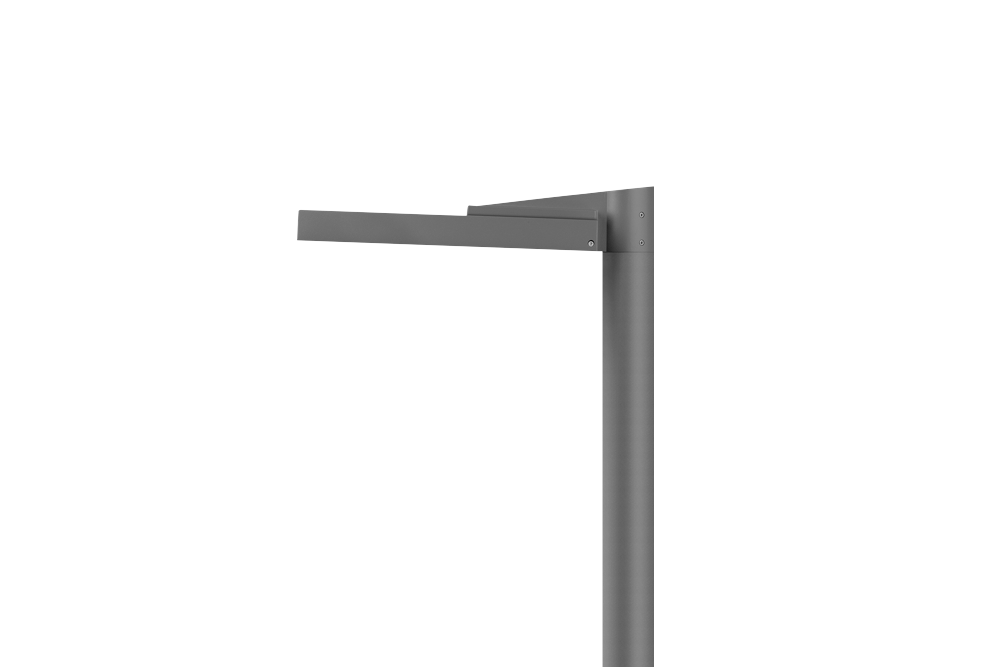

Product: VFL530

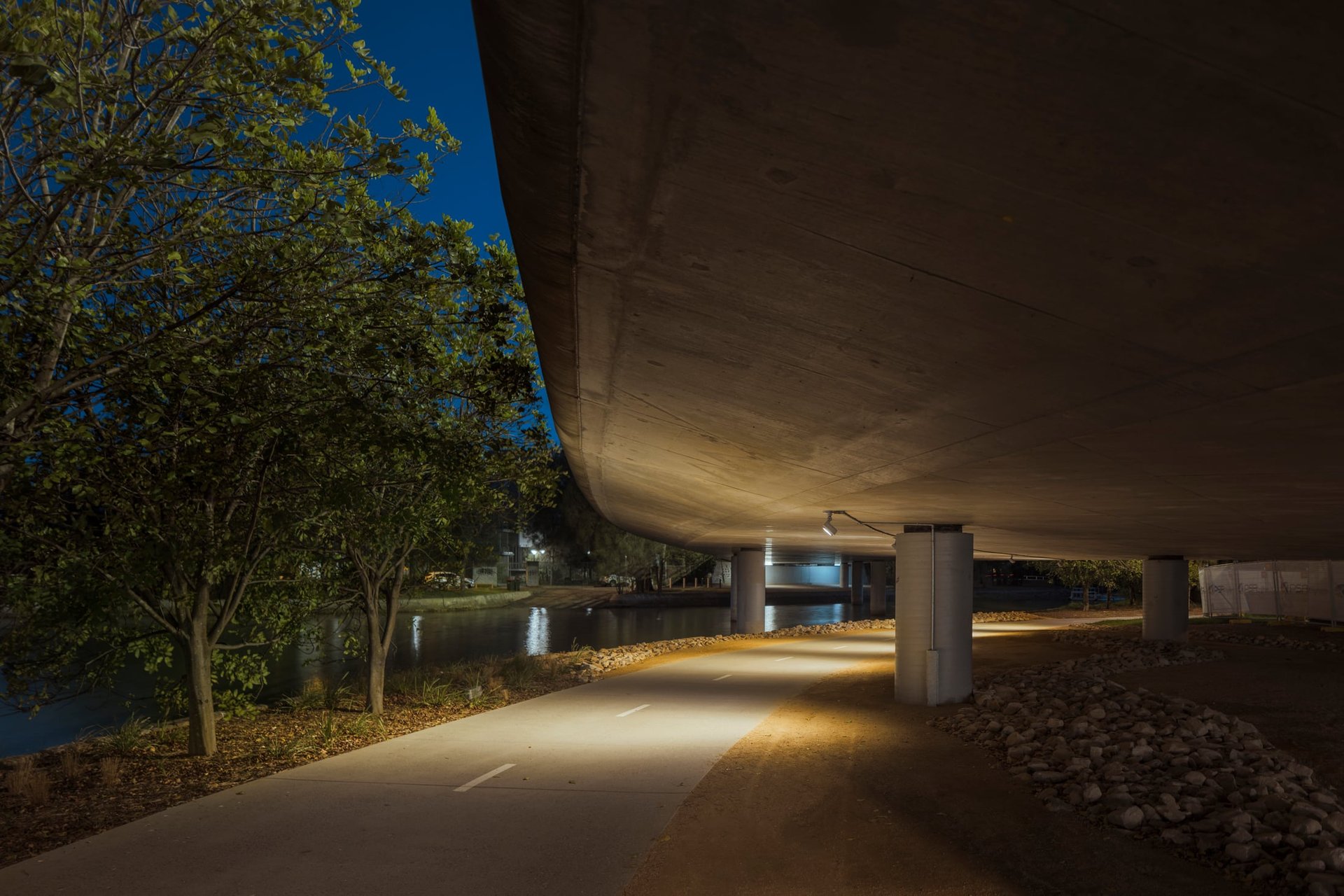

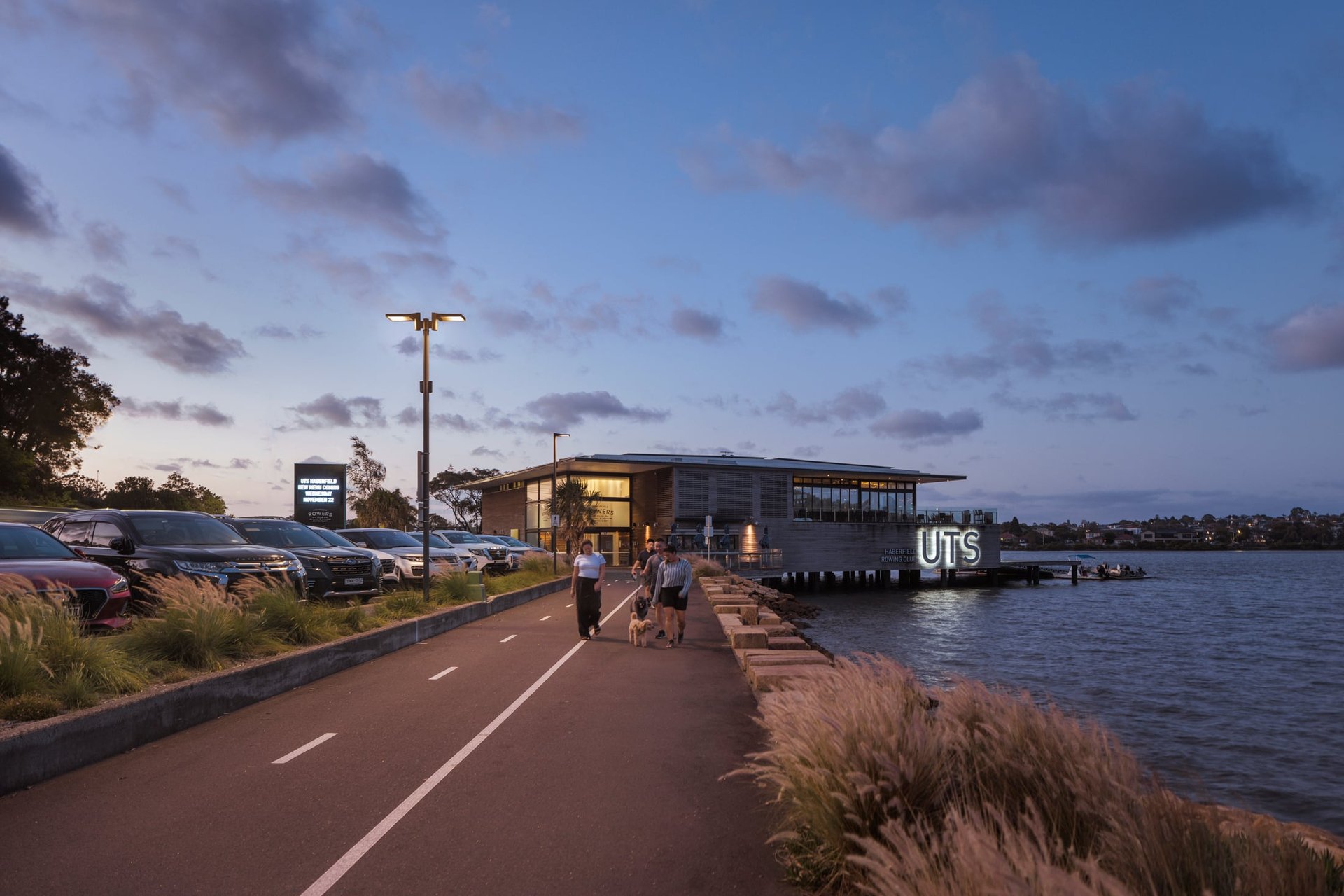

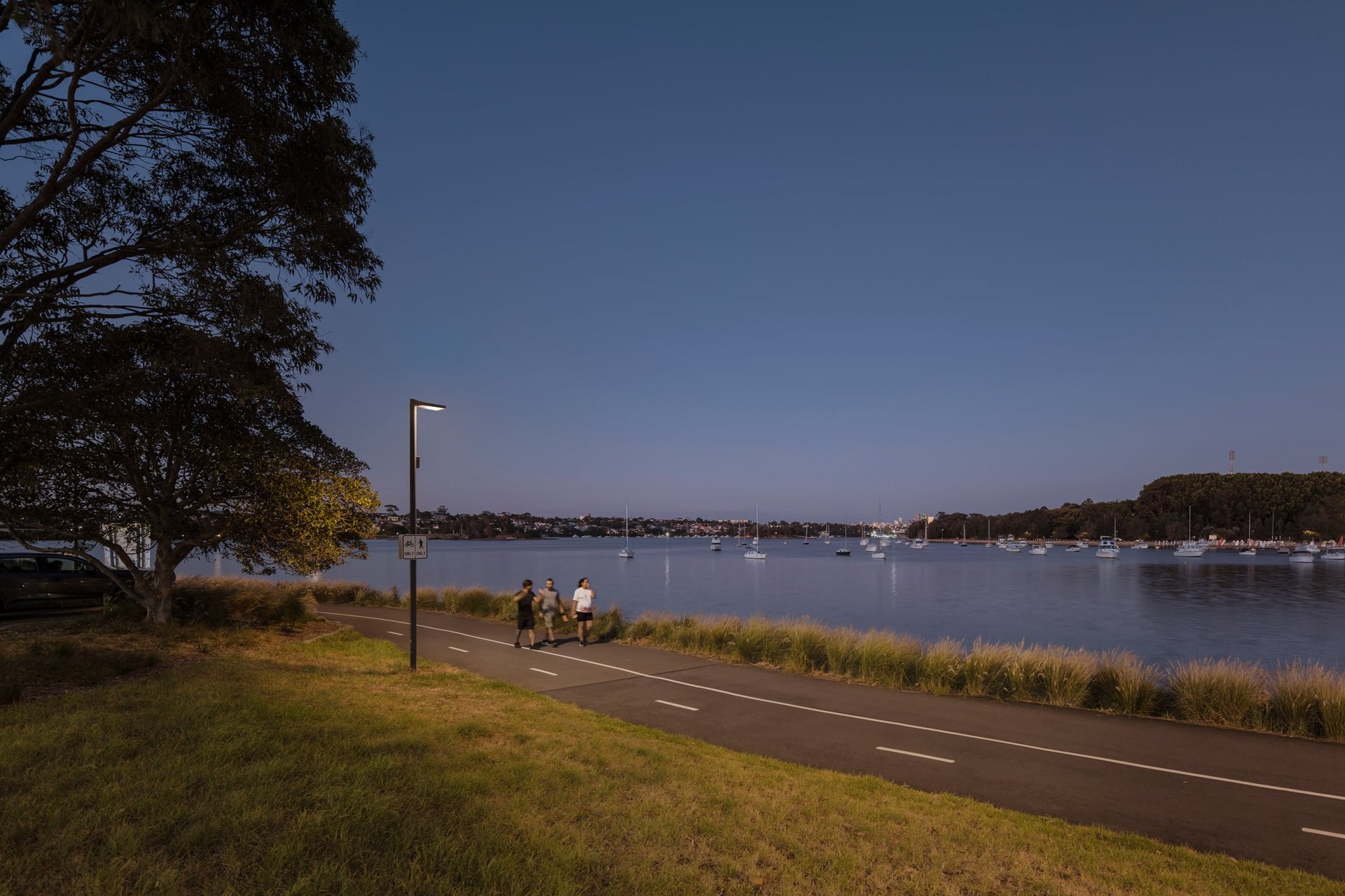

The installation features 82 VFL530 luminaires with a warm 2700 K colour temperature and integrated Eco Step Dim® motion sensors, along with 9 FLD131 floodlights. All luminaires are ADSA Approved, offering precision optics to minimise upward light and prevent spill into the water. The result is a resilient, low-impact lighting system that delivers energy savings of up to 80% and a safer, more welcoming environment for the community.


Download the ECO Step Dim® Brochure


Discover how the ECO Step Dim® control system for WE-EF luminaires enables smart, wireless integration of street and area lighting into future-ready city scenarios. Download our brochure to explore how this innovative system, along with other advanced products, offers flexible, intelligent lighting solutions for modern challenges.
