Precision Projection with Gobo Projectors

Enhancing Spaces with Precision Lighting and Creative Gobo Projections

Download Brochure

Discover how WE-EF Gobo projectors bring precision and creativity to lighting design, transforming spaces with sharp, targeted projections. From highlighting architectural details to projecting logos and artwork, WE-EF’s advanced optical technology ensures unparalleled accuracy, reduced light spill, and dynamic visual effects. Ideal for both indoor and outdoor applications, these projectors offer versatile solutions for customising and enhancing any environment.

Get in touch

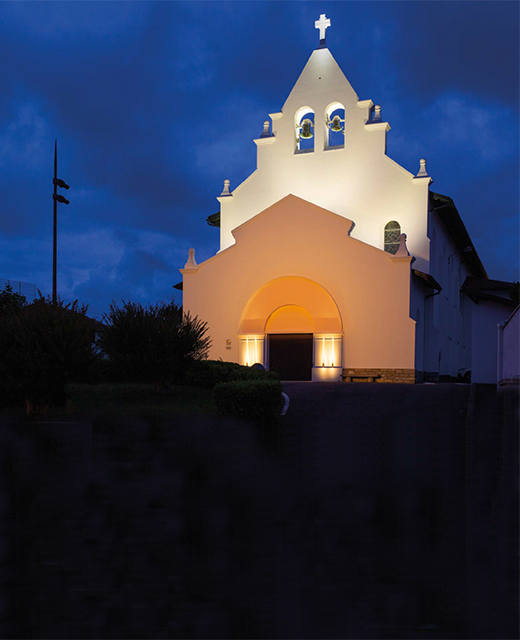

Range of Possibilities with WE-EF Gobo Projectors

Test

Basic pattern projections

Test

Advanced imagery and artwork with colour pallets

Test

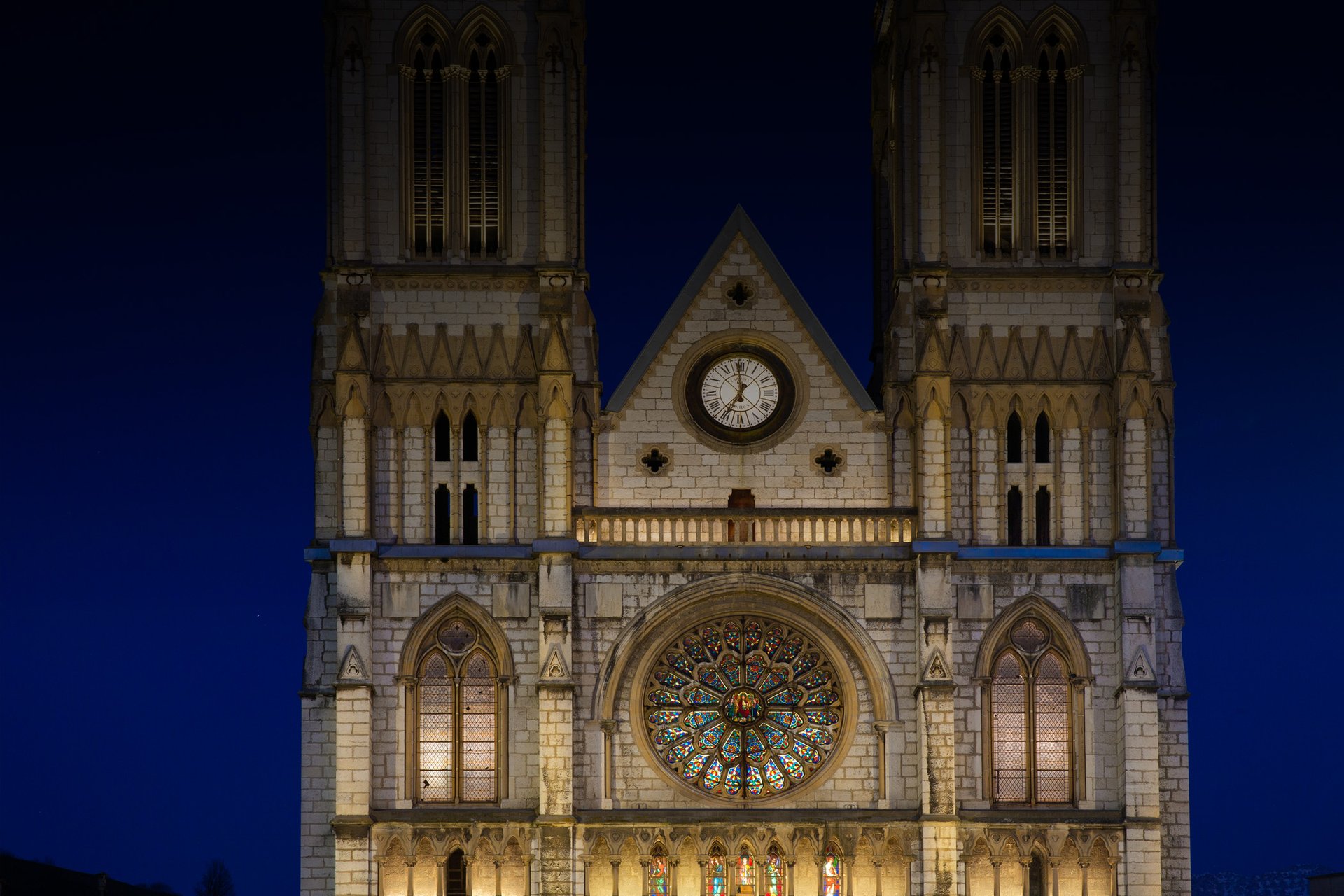

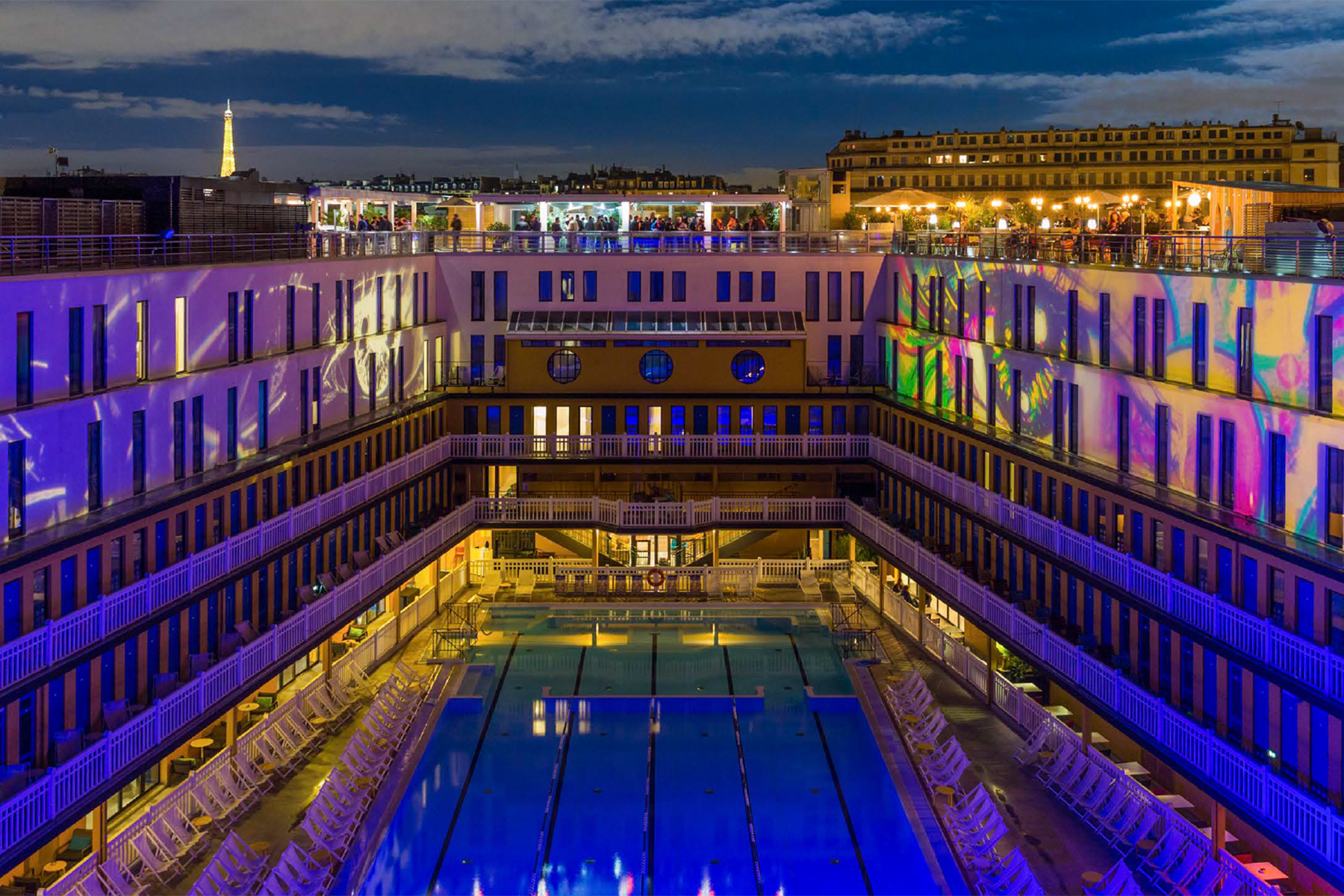

Advanced 3D projection with multiple surfaces and overlapping projectors

How WE-EF supports your Gobo Application beyond Luminaires

Developing a Gobo project starts with defining a creative concept, from projecting patterns or logos to highlighting architectural features. WE-EF experts support every step, from site planning and precise measurements to determining projector placement and optimal angles for minimal light spill. Advanced lighting calculations, gobo mapping, and artwork preparation are tailored to the project’s needs, guided by WE-EF’s technical expertise. Finally, WE-EF’s specialists ensure seamless commissioning, aligning every detail to deliver impactful, high-quality projections that bring the vision to life.

Step by Step Process for Gobo Projections

Design Concept

Design

Design visual effects and images

Define the desired effects, such as framing, highlighting features, or projecting artwork or logos. Collaborate with graphic and lighting designers to bring the vision to life.

Sizing

Site Planning

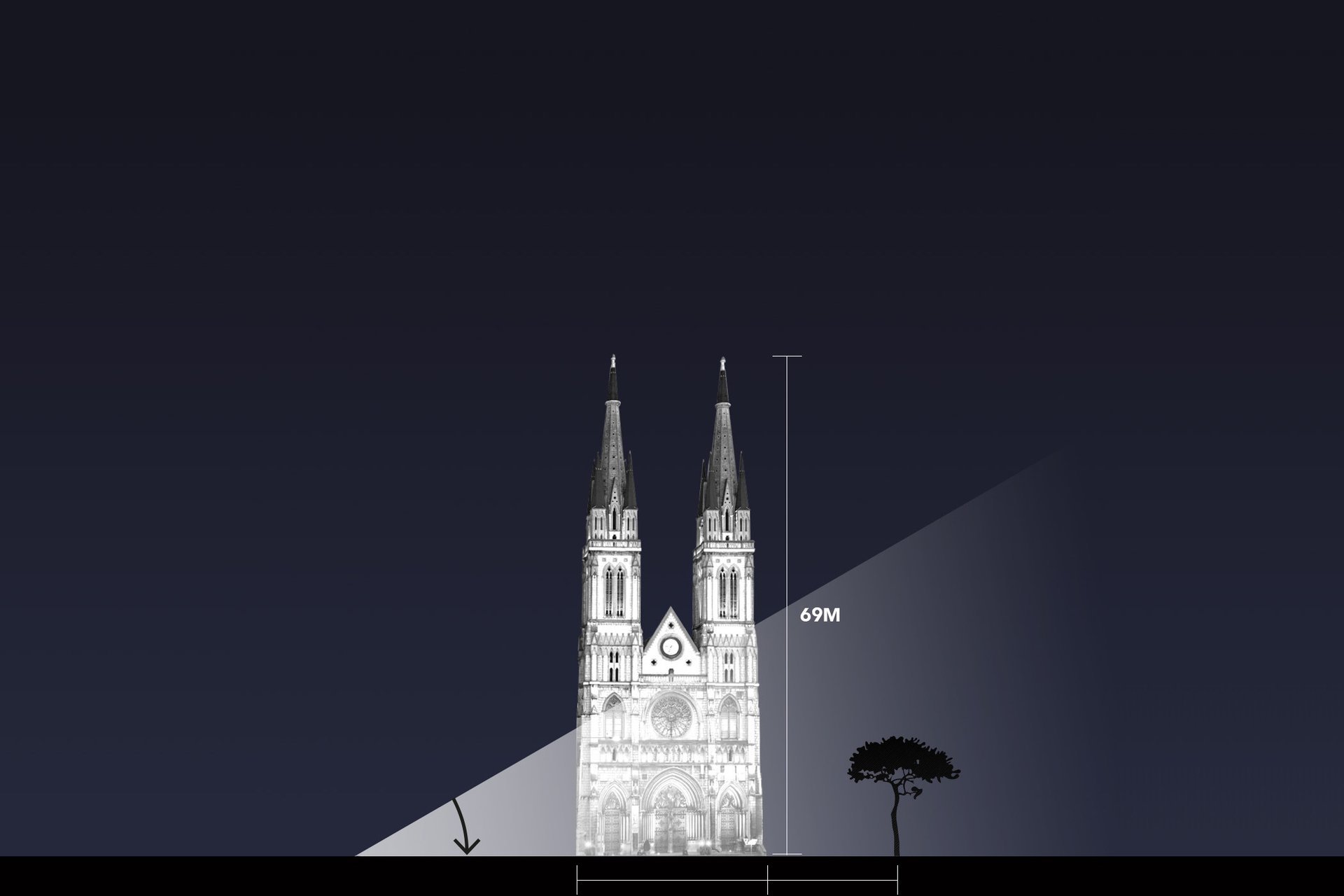

Assess surroundings, take precise measurements, and identify projector angles (ideally 0–30°). Ensure the aperture covers the area, factoring in visibility and fixing positions for optimal results.

Calculate

Lighting Simulation

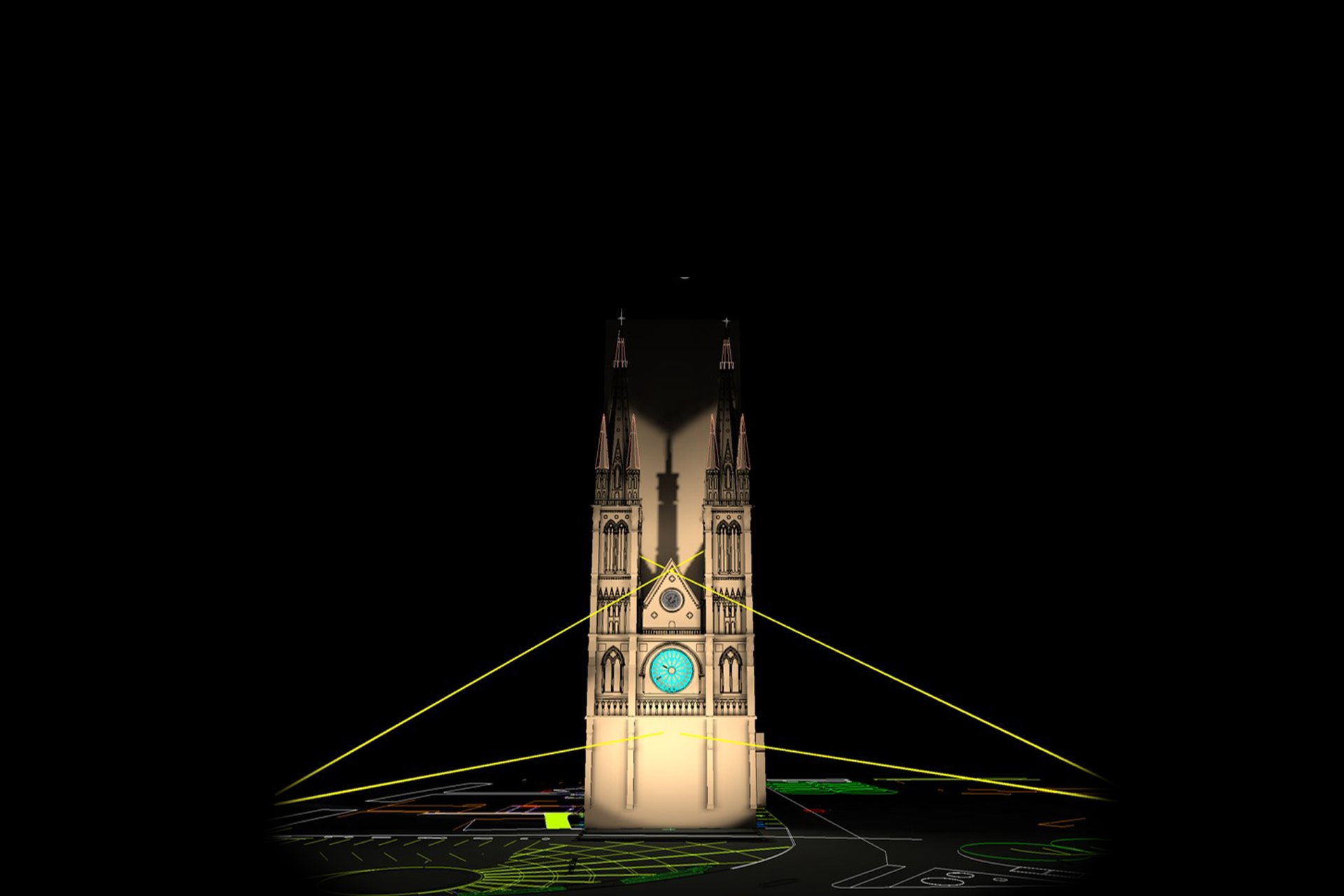

Use tools like Dialux or Relux to calculate projector placement, opening angles, and setback distances for precise illumination.


Set Up

Luminaire Installation

The WE-EF Gobo specialist will install the projector, adjust orientation and inclination, set the Gobo, fine-tune the focus and zoom, measure with a laser meter and capture high-resolution photos of the projection.


Mapping

Artwork Specifications

Consider size limitations for patterns duringf the Gobo process, with a 58 mm limit for Gobo size B (FLC230), 46 mm for Gobo size M (FLC220) and a minimum printing resolution of 600 dpi or 236 pixels/cm.


Commissioning

Final Gobo Adjustments

Remove the cover without altering lense settings, ensure clear weather to avoid moisture, arrange all Gobo motifs adjust projectors, adjust projectors simultaneously and secure the cylinder cover and screws for the final result.

Case Study: Aix-en-Provence, Place du Général de Gaulle

Image 1

Bringing the famous Trees of Cours Mirabau to live at Night

Establishing the identity of the new fast bus line as well as the territory it crosses (7 km).

Redesigning the lighting of the Rotunda square and its monumental fountain in the Aix-en-Provence City Center

The Lighting Brief

The Aixpress Bus à Haut Niveau de Service (BHNS) project in Aix-en-Provence sought to create a distinctive identity along a 7 km transit corridor while reimagining key public spaces. Central to the initiative was the redesign of the Square de la Rotonde’s lighting, highlighting the monumental fountain at the terminus of the iconic Cours Mirabeau. The vision was to evoke a sense of connection between the urban square and the natural beauty of the tree-lined avenue.

Test
Test

WE-EF Solution

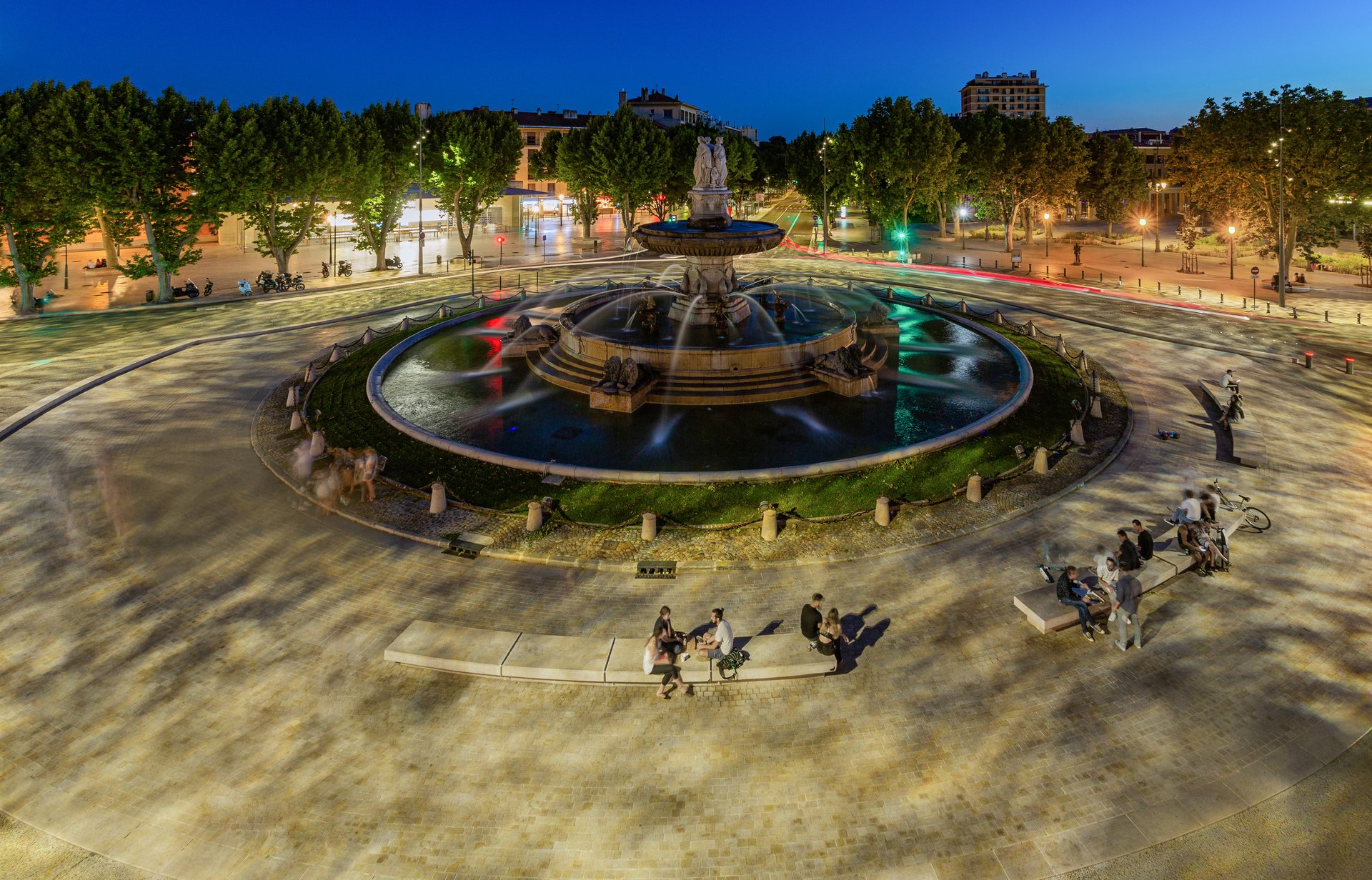

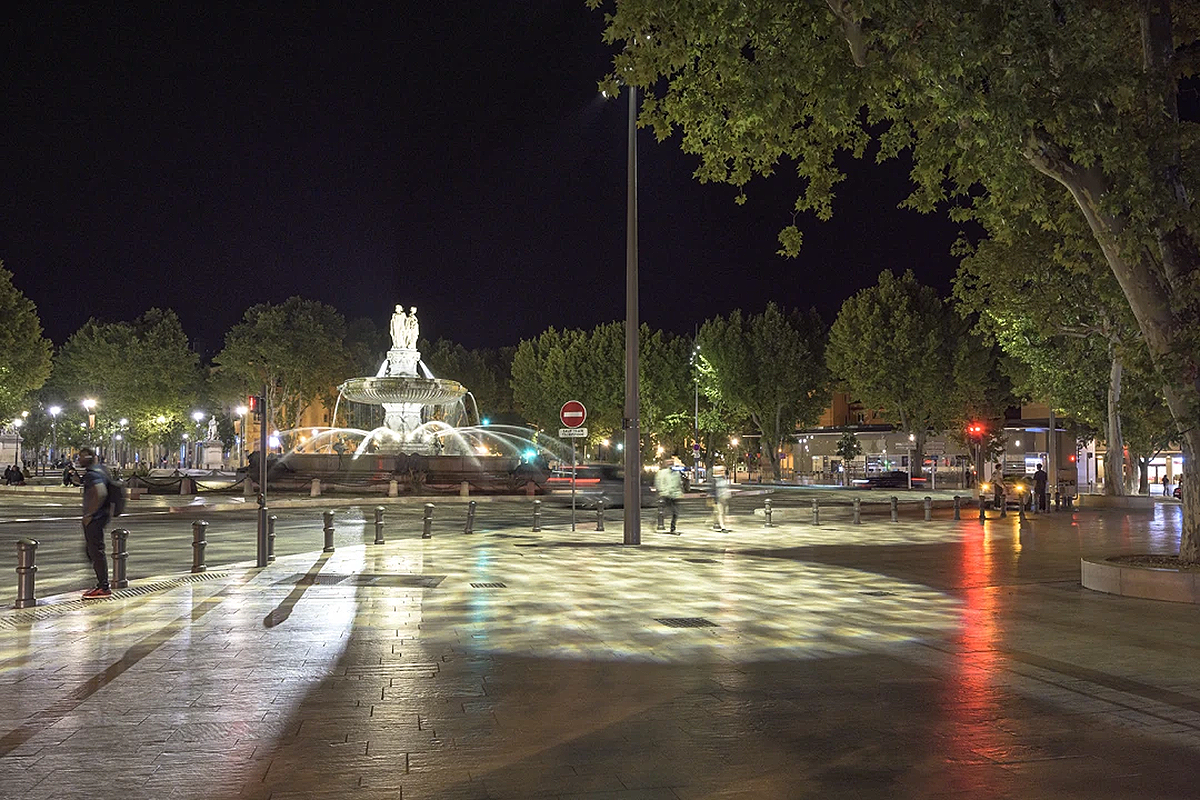

WE-EF gobo projectors were employed to craft a unique lighting effect, simulating the dappled light of sunbeams filtering through the branches of trees. This design pays homage to the renowned plane trees of the Cours Mirabeau, extending their ambiance into the square and creating a harmonious blend of nature and urbanity. The gobo projectors’ precision allowed for dynamic, textured light patterns that added depth and character to the space, transforming it into an inviting and poetic destination after dark.

Products

WE-EF FLC200 GOBO LED luminaires were selected for their ability to project intricate light patterns with precision and durability. Designed to mimic sunlight filtering through trees, they perfectly evoke the ambiance of the Cours Mirabeau. Energy-efficient and weather-resistant, the FLC200 luminaires deliver sustainable, low-maintenance solutions while enhancing the square’s unique identity.

See all Products
Test

The WE-EF Toolbox for advanced Gobo Lighting

Concepts, technical requirements and options

Types of Gobos

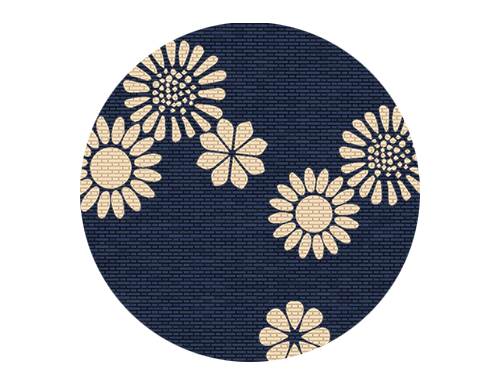

Black & white glass Gobo

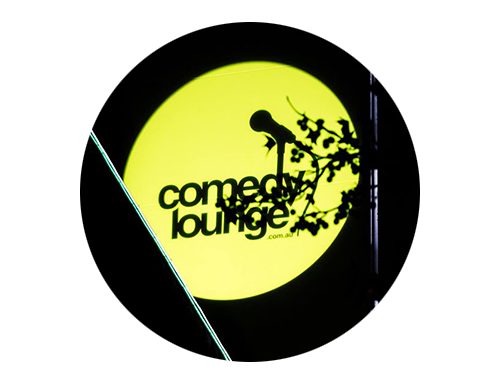

Black & white glass with dichroic Gobo


Full colour glass Gobo

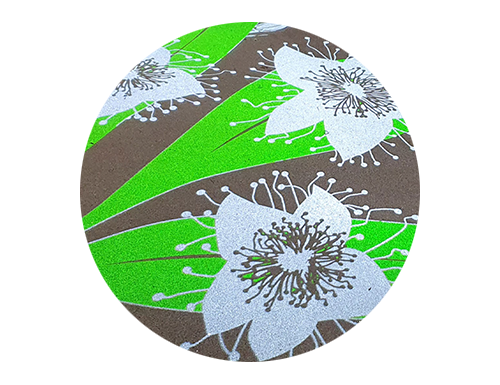

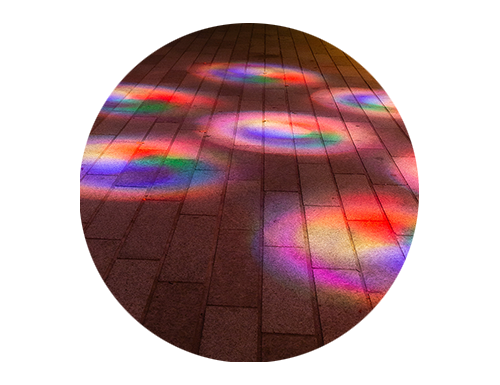

Spot colour glass Gobo

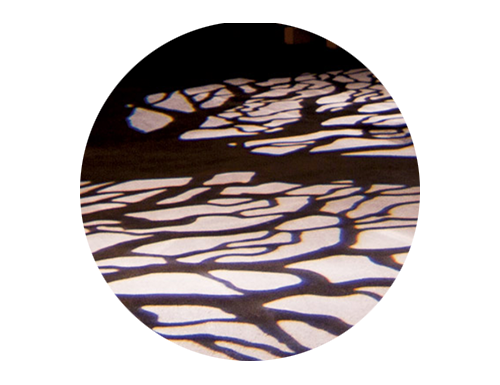

Steel Gobo

The term "Gobo", short for "goes before optics", refers to a metal plate with a laser-cut pattern. Placed in front of a projector, it casts the pattern as a light image. As technology has advanced, gobos can also be made from glass plates with various tints and colours.

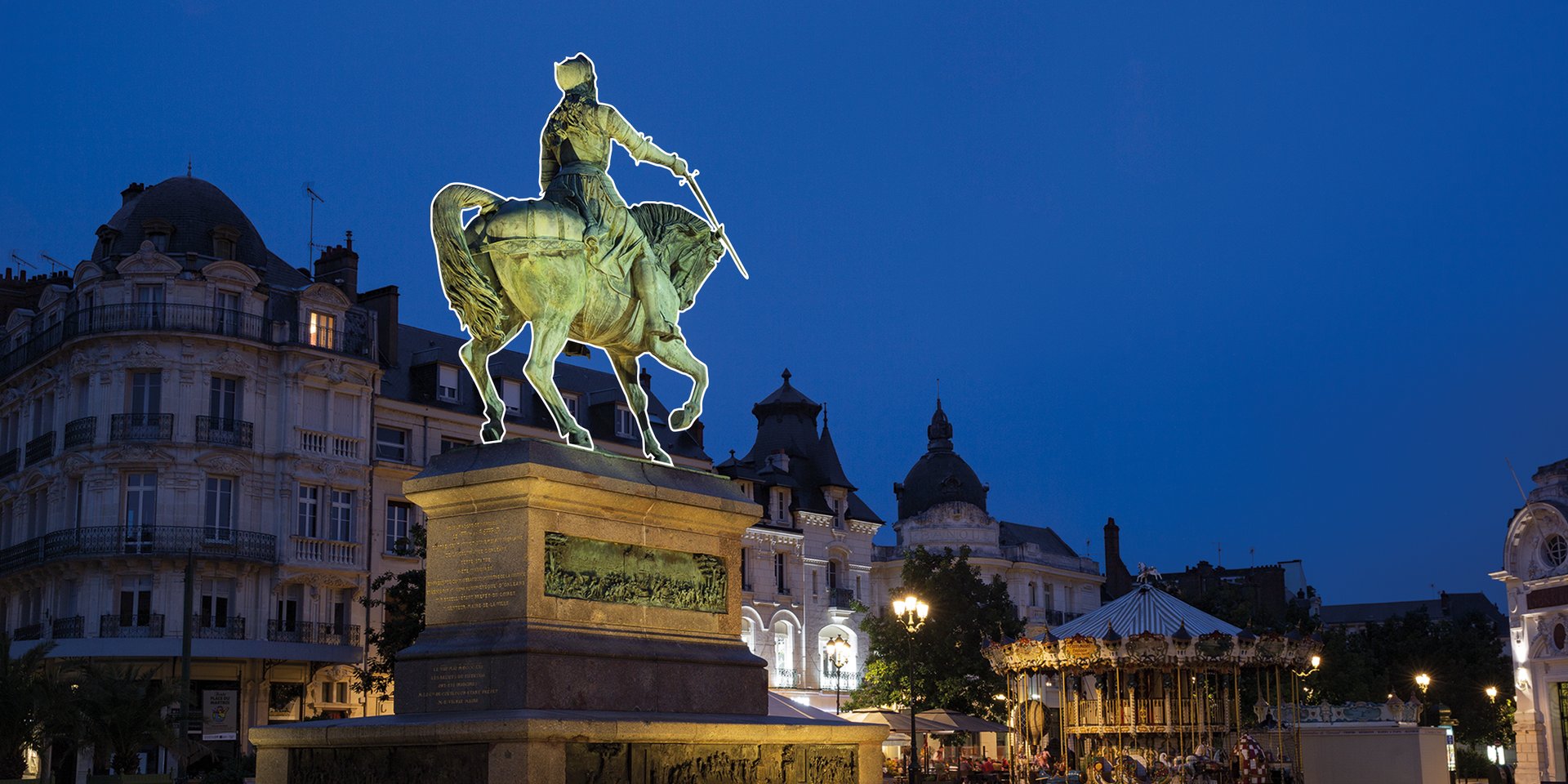

Framing and cropping

Tailored Lighting

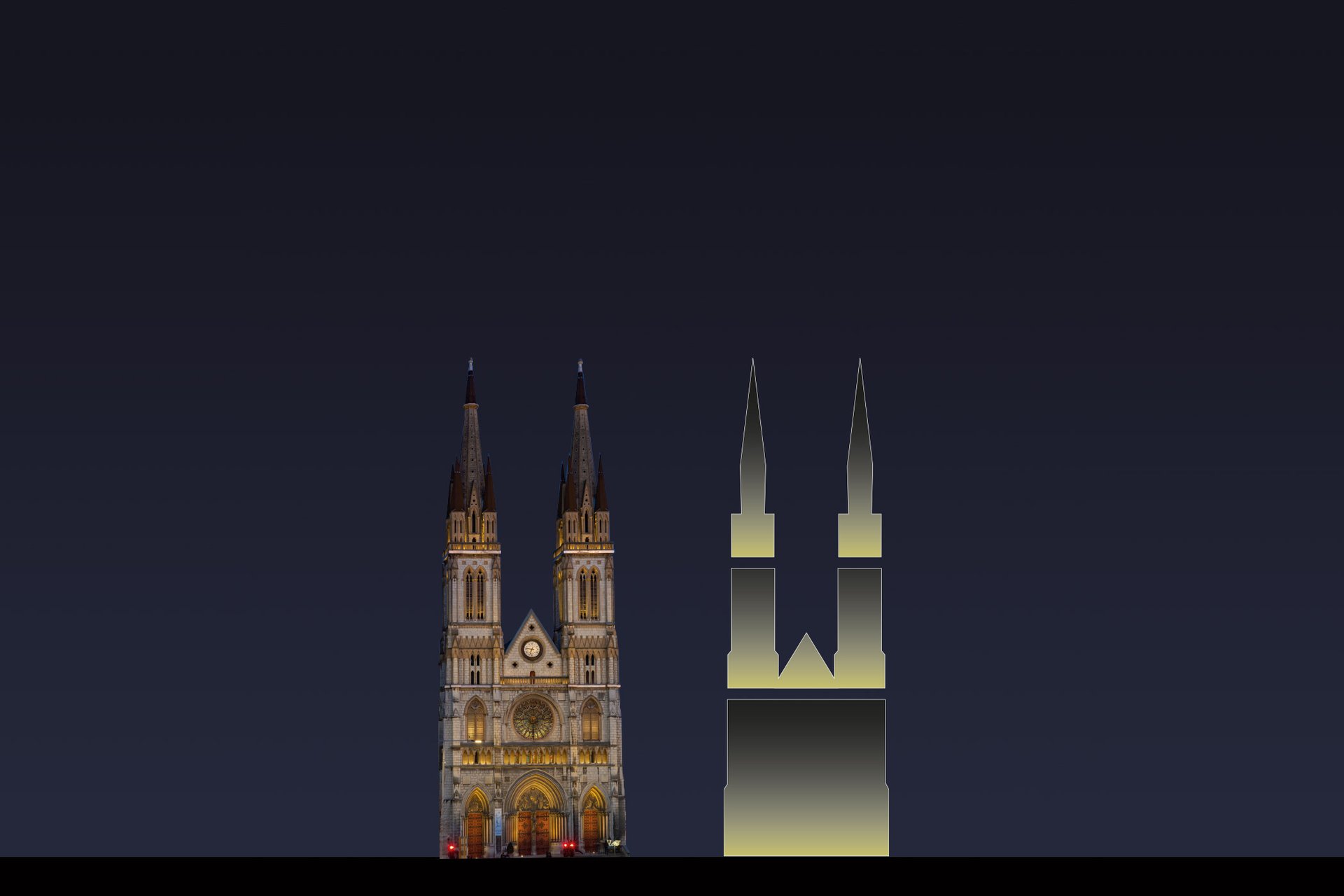

Framing is a specific lighting technique used to isolate the shape of an object or architectural details to be highlighted. This technique is valuable for avoiding light pollution by enabling targeted illumination. There are two types of framing: framing with a knife accessory for basic shapes, and framing using Gobo cropping for complex shapes.

Anamorphosis

Unlocking the Magic

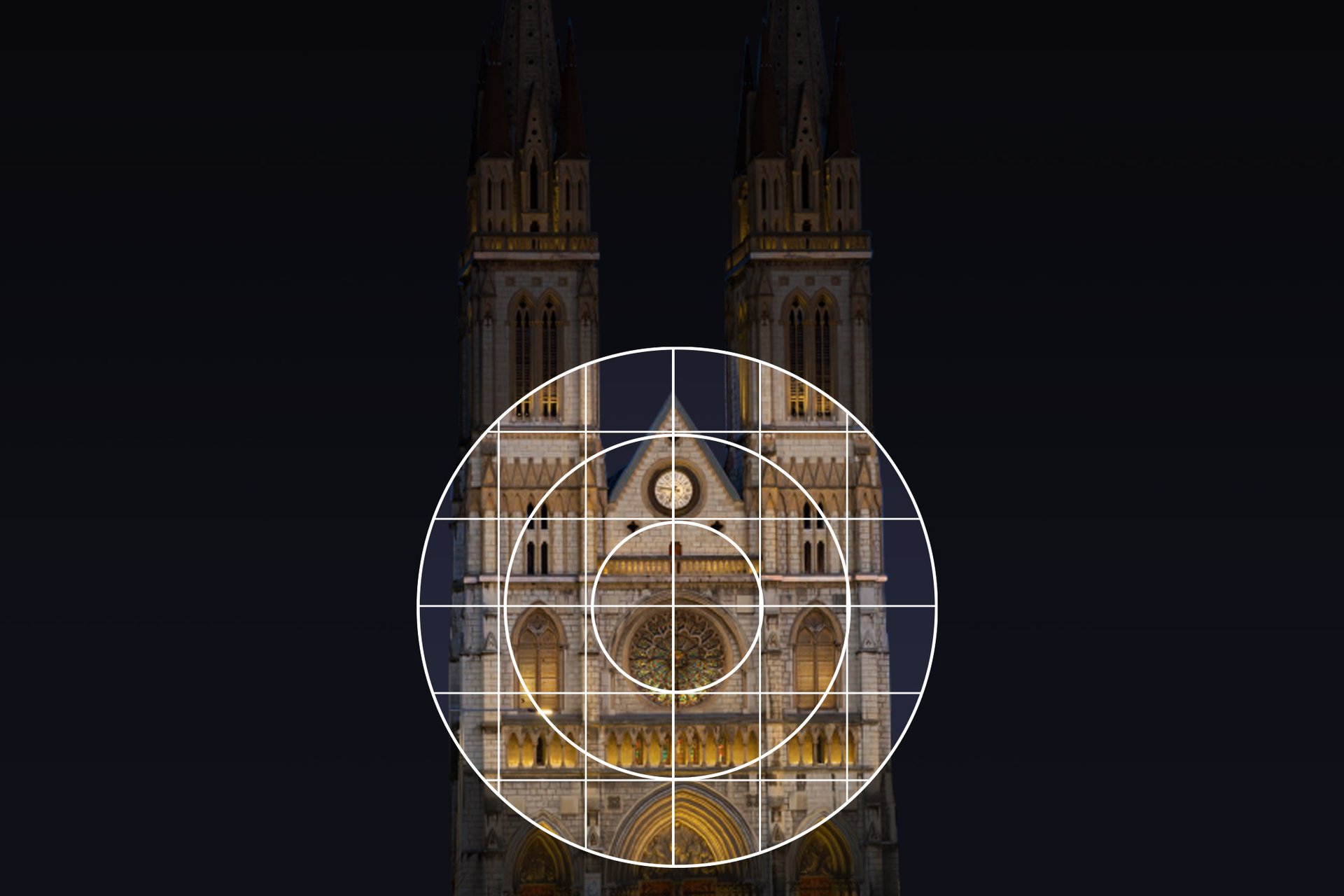

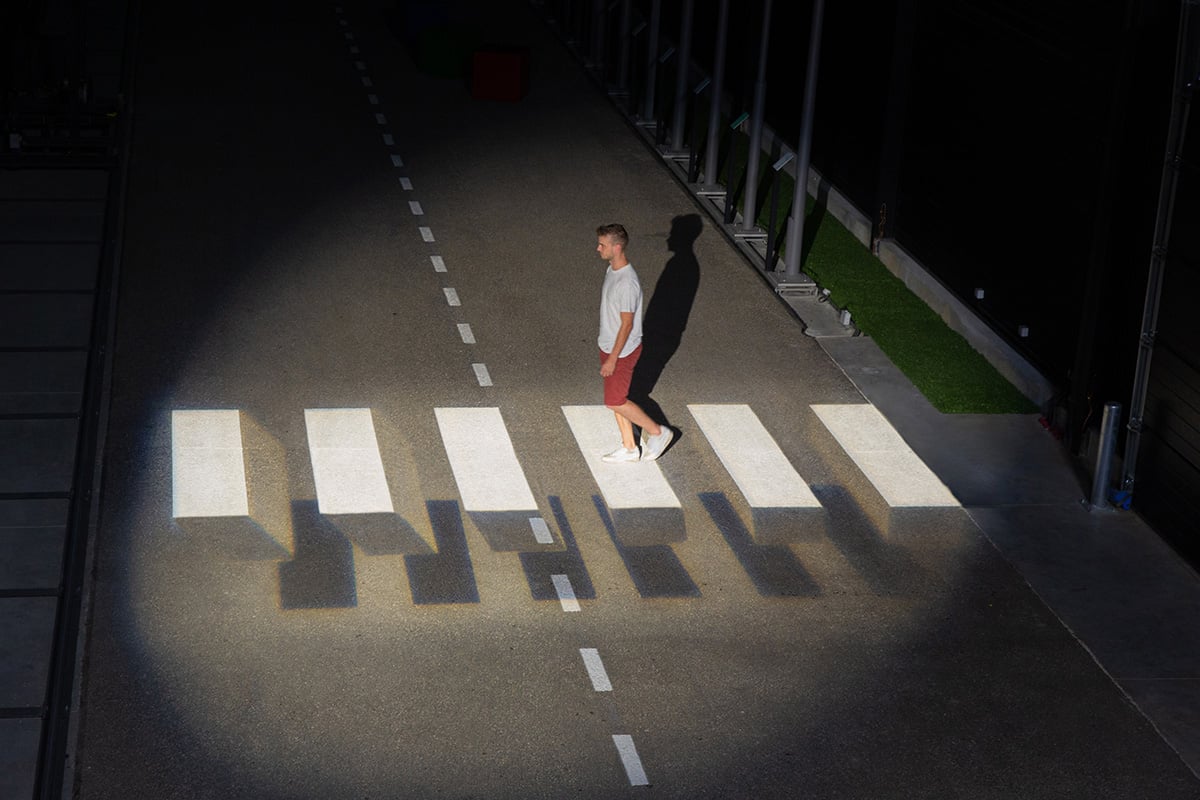

Anamorphosis is a distorted projection that requires the viewer to occupy a specific vantage point, use special devices, or both, to view a recognisable image. It is used in painting, photography, sculpture, installation, toys, film special effects, and also in Gobo projections. The image must be calibrated and sized to be relevant from the correct point of view or calculated to correct the keystone effect when the projector's position is angled.

Gobo lens technology

FLC Gobo Projectors

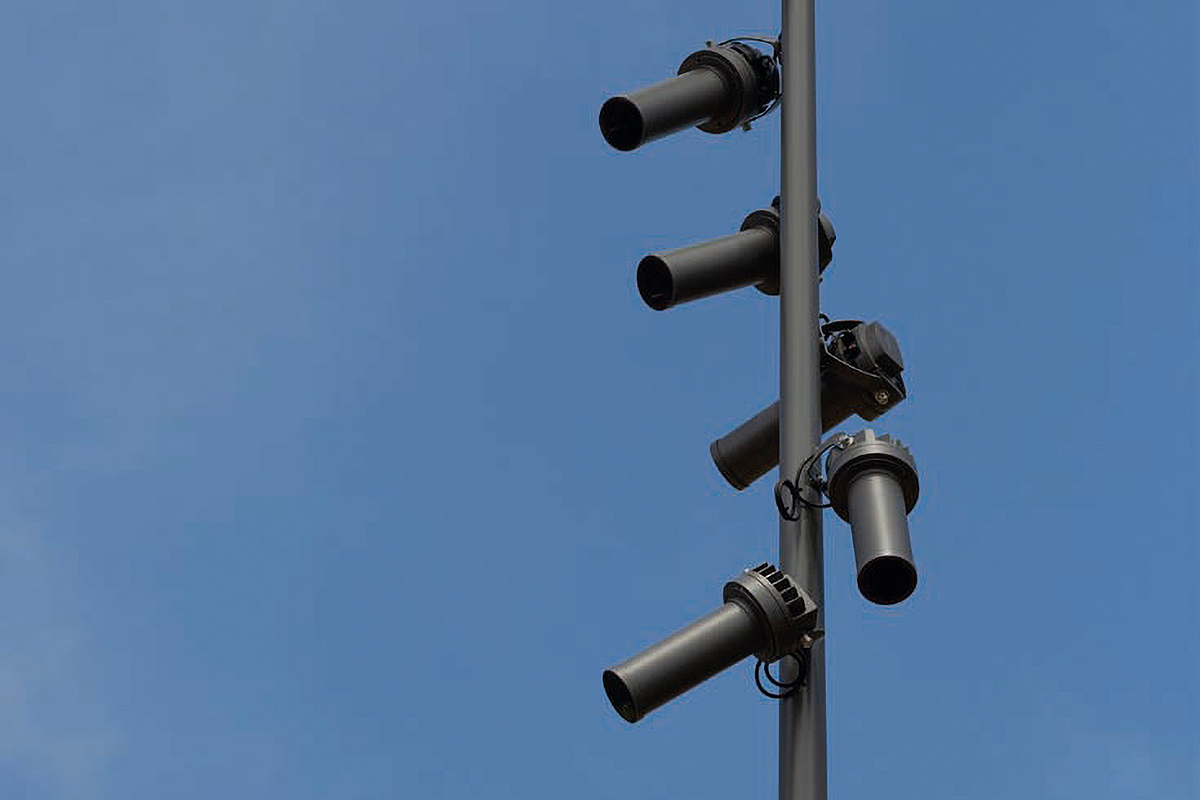

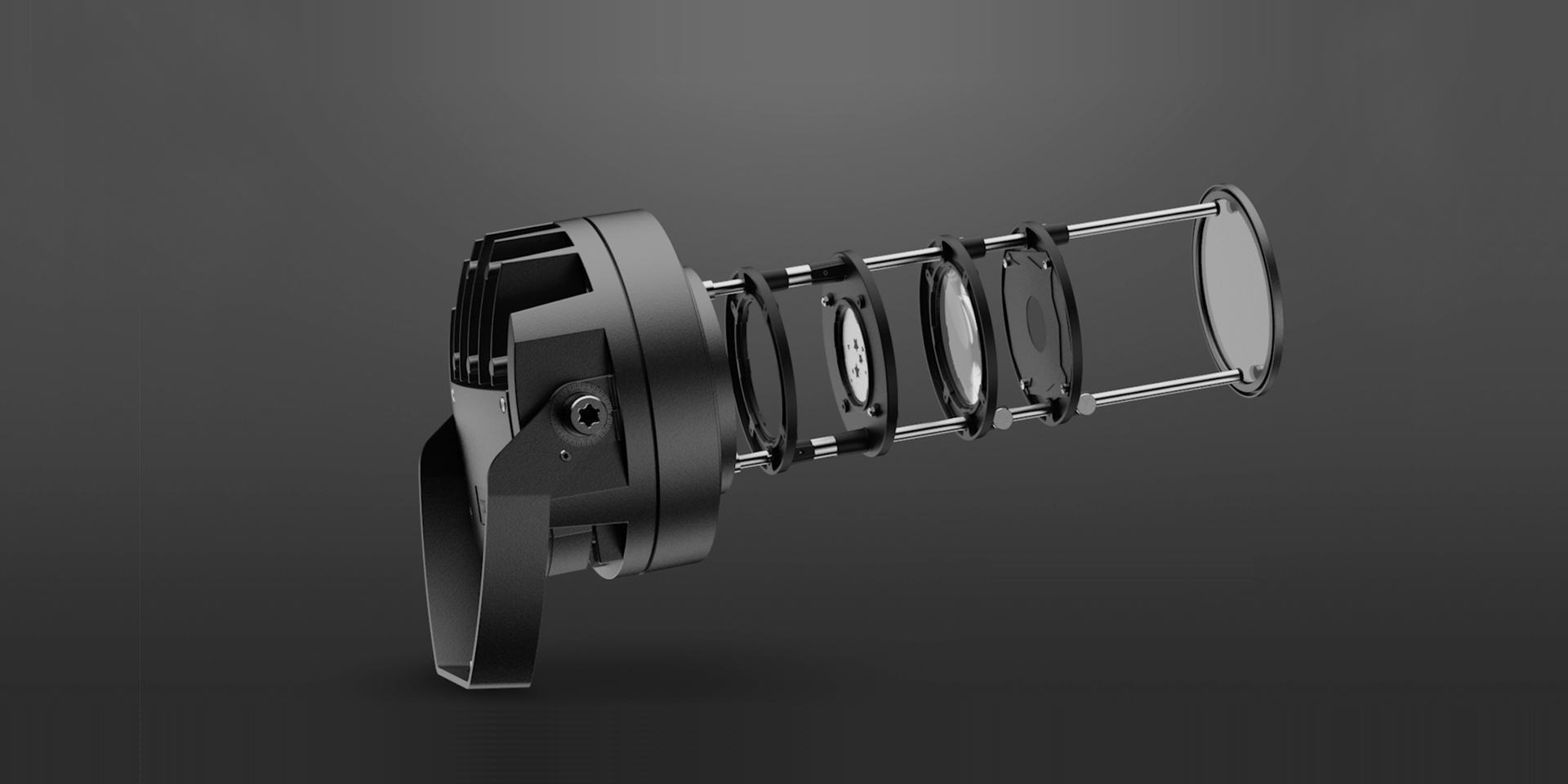

The WE-EF profile projectors with white LEDs, tunable white, or colour-changing technology are ideal for various applications – from subtly lighting buildings with warm to cool white light to dramatically illuminating facades with colored light. These luminaires are suitable for outdoor use and effective lighting in transitional or indoor spaces like atriums, halls, and foyers.

Download Brochure »Gobo Projections«

Aqua Image

Discover how WE-EF transforms spaces with precision lighting using Gobo technology. Download the brochure to explore creative, high-impact solutions that combine technical excellence, visual flair, and reliable performance.

Download presentation
