RFL530-SE LED

IP66, Class I. Class II on request. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Non-reflecting safety glass lens, hinged with safety switch. Integral EC electronic converter in thermally separated compartment. DALI. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Brackets to be ordered separately.

Colors

Material

Body: Marine-grade, die-cast aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK07

Ingress Protection: IP66

Finish: Powdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 or RAL9016

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver: Integral EC electronic converter. DALI

Cable:

Power Factor: > 0.9

Power Supply: 220-240V / 50-60 Hz

Surge Protection: 6/6 kV

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

Energy efficiency class: C-D (Light source)

:

Light Distribution

Delivered Lumen

To

Wattage

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
111-0192	asymmetric, side throw beam [S60]	LED-12/24W / 700 mA - 3000 K	3126.9	80
111-0193	asymmetric, side throw beam [S60]	LED-24/48W / 700 mA - 3000 K	6253.8	80
111-0230	asymmetric, side throw [S70]	LED-12/24W / 700 mA - 3000 K	2984.1	80
111-0234	asymmetric, side throw [S70]	LED-24/48W / 700 mA - 3000 K	5968.1	80
111-0275	asymmetric, forward throw [A60]	LED-12/24W / 700 mA - 3000 K	2891.7	80
111-0277	asymmetric, forward throw [A60]	LED-24/48W / 700 mA - 3000 K	5783.5	80
111-0337	asymmetric, side throw beam [S60]	LED-12/24W / 700 mA - 4000 K	3342.6	80
111-0339	asymmetric, side throw beam [S60]	LED-24/48W / 700 mA - 4000 K	6685.1	80
111-0345	asymmetric, side throw [S70]	LED-12/24W / 700 mA - 4000 K	3189.9	80
111-0347	asymmetric, side throw [S70]	LED-24/48W / 700 mA - 4000 K	6379.7	80
111-0353	asymmetric, forward throw [A60]	LED-12/24W / 700 mA - 4000 K	3091.2	80
111-0355	asymmetric, forward throw [A60]	LED-24/48W / 700 mA - 4000 K	6182.3	80
111-0406	asymmetric, side throw beam [S60]	LED-12/12W / 350 mA - 4000 K	1891	80
111-0407	asymmetric, side throw beam [S60]	LED-24/24W / 350 mA - 4000 K	3782	80
111-0408	asymmetric, side throw beam [S65]	LED-12/12W / 350 mA - 4000 K	1893.1	80
111-0409	asymmetric, side throw beam [S65]	LED-12/24W / 700 mA - 4000 K	3348	80
111-0410	asymmetric, side throw beam [S65]	LED-24/24W / 350 mA - 4000 K	3786.2	80
111-0411	asymmetric, side throw beam [S65]	LED-24/48W / 700 mA - 4000 K	6696.1	80
111-0412	asymmetric, side throw [S70]	LED-12/12W / 350 mA - 4000 K	1836.7	80
111-0413	asymmetric, side throw [S70]	LED-24/24W / 350 mA - 4000 K	3673.4	80
111-0414	asymmetric, forward throw [A60]	LED-12/12W / 350 mA - 4000 K	1784.4	80
111-0415	asymmetric, forward throw [A60]	LED-24/24W / 350 mA - 4000 K	3568.7	80
111-0416	rectangular, side throw [R65]	LED-12/12W / 350 mA - 4000 K	1780.6	80
111-0417	rectangular, side throw [R65]	LED-12/24W / 700 mA - 4000 K	3084.3	80
111-0418	rectangular, side throw [R65]	LED-24/24W / 350 mA - 4000 K	3561.2	80

Showing 1 to 25 of 180 Entries

Accessories

Control

Mounting Accessories

Optical Accessories

	Part-ID	Title	PDF	Open Data
Please select an accessory category

Item	Download	Mail Link
Product Images
Light Distributions
Install Instructions
Manual

RFL500-SE

Light Distribution

Delivered Lumen

Wattage

Colour Temperature

Colour Temperature

Accessories

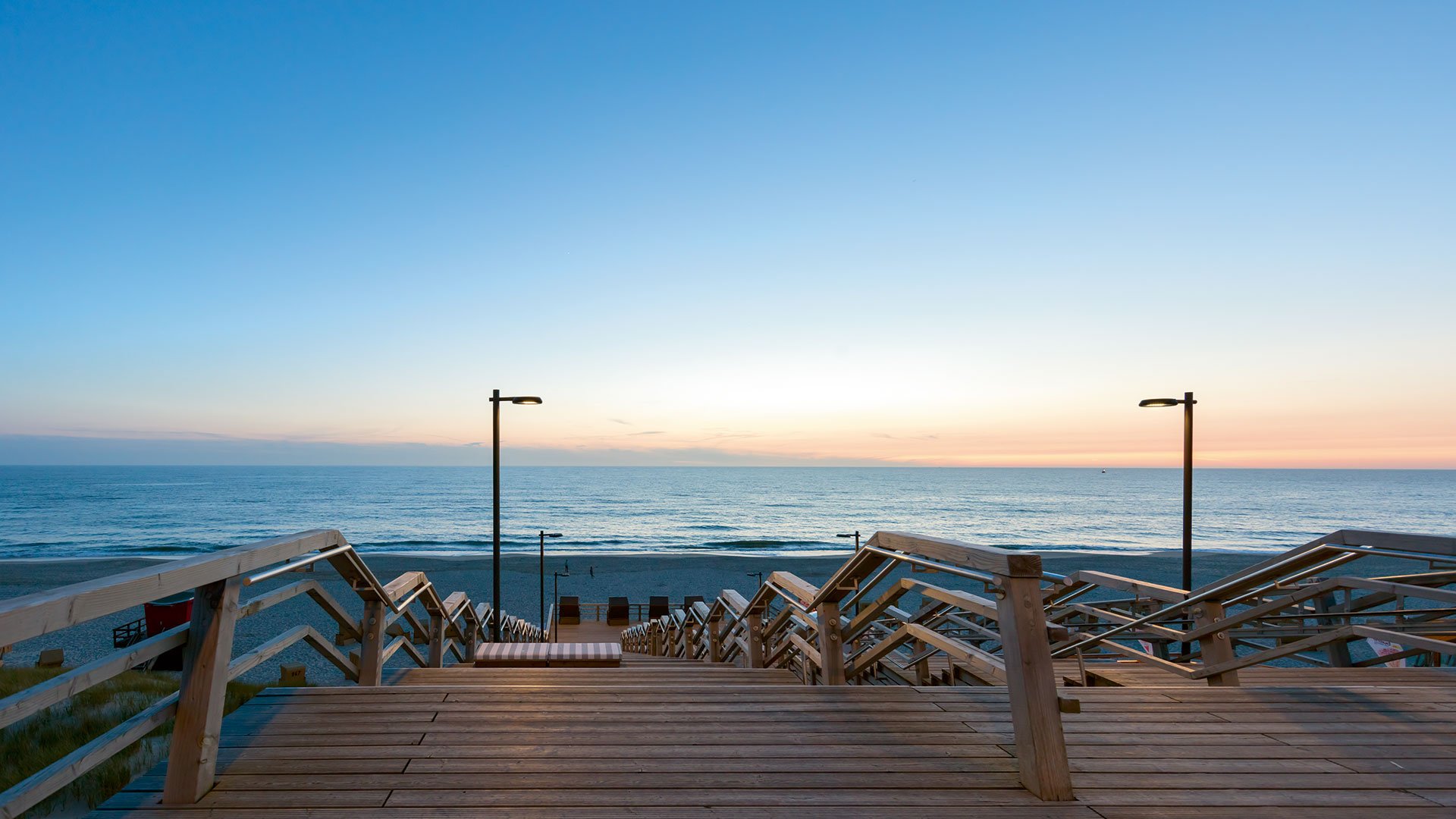

Projects utilizing the RFL530-SE LED
