FLD100 series

FLD131 LED #4

Static White

Choose a variant:

Surface-Mounted

Spigot-Mounted

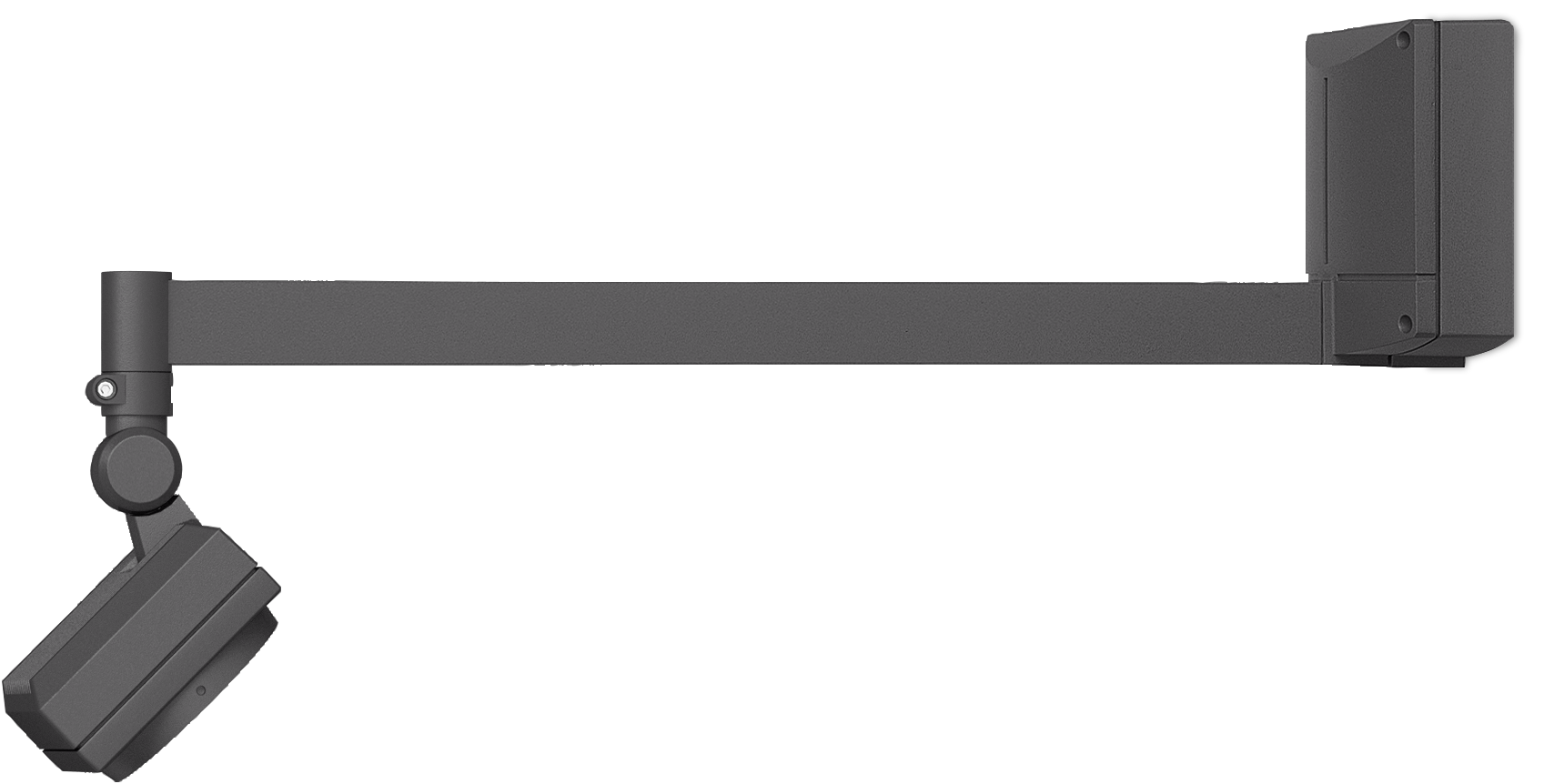

Wallbracket

Choose a family:

L95×W95 mm | FLD111 LED #4 L175×W130 mm | FLD121 LED #4 L200×W156 mm | FLD131 LED #4

Family Spec Sheet Installation Instructions More Downloads

IP55, Class I. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection + primer including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Knuckle permits 350° horizontal and 180° vertical aiming of optics. 2700 K option available on request.

Colours

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

Material

Body	Marine-grade, all-aluminium construction
Fasteners	PCS Polymer Coated Stainless Steel Hardware (unpainted)
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP55
Finish	Powdercoat finish in black RAL9004, grey aluminium RAL9007, white aluminium RAL9006 or white RAL9016
Corrosion Protection	5CE+Primer

Electrical

Ballast / Driver	EC electronic converter in thermally-separated compartment
Power Supply	230V / 50 Hz

Additional Information

Warranty

The product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details.

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
145-9619	symmetric, medium beam [M]	LED-12/24W / 700 mA - 3000 K	2908.1	80
145-9620	symmetric, very narrow beam [EE]	LED-12/24W / 700 mA - 3000 K	2786.9	80
145-9621	symmetric, very narrow beam, sharp cut-off [EES]	LED-12/24W / 700 mA - 3000 K	2985.8	80
145-9623	symmetric, wide beam [B]	LED-12/24W / 700 mA - 4000 K	2455	80
145-9624	symmetric, medium beam [M]	LED-12/24W / 700 mA - 4000 K	3108.7	80
145-9625	symmetric, very narrow beam [EE]	LED-12/24W / 700 mA - 4000 K	2979.1	80
145-9626	symmetric, very narrow beam, sharp cut-off [EES]	LED-12/24W / 700 mA - 4000 K	3191.8	80
145-9619	wallwash	LED-12/24W / 700 mA - 3000 K	2284.9	80
145-9624	wallwash	LED-12/24W / 700 mA - 4000 K	2442.4	80
145-9618	symmetric, wide beam [B]	LED-12/24W / 700 mA - 3000 K	2296.7	80

Showing 1 to 10 of 10 entries.

Accessories

Optical Accessories

Control

Part-ID	Title	Specifications
		Text	PDF
145-9570	External optical adaptor EA
