FLD100 series

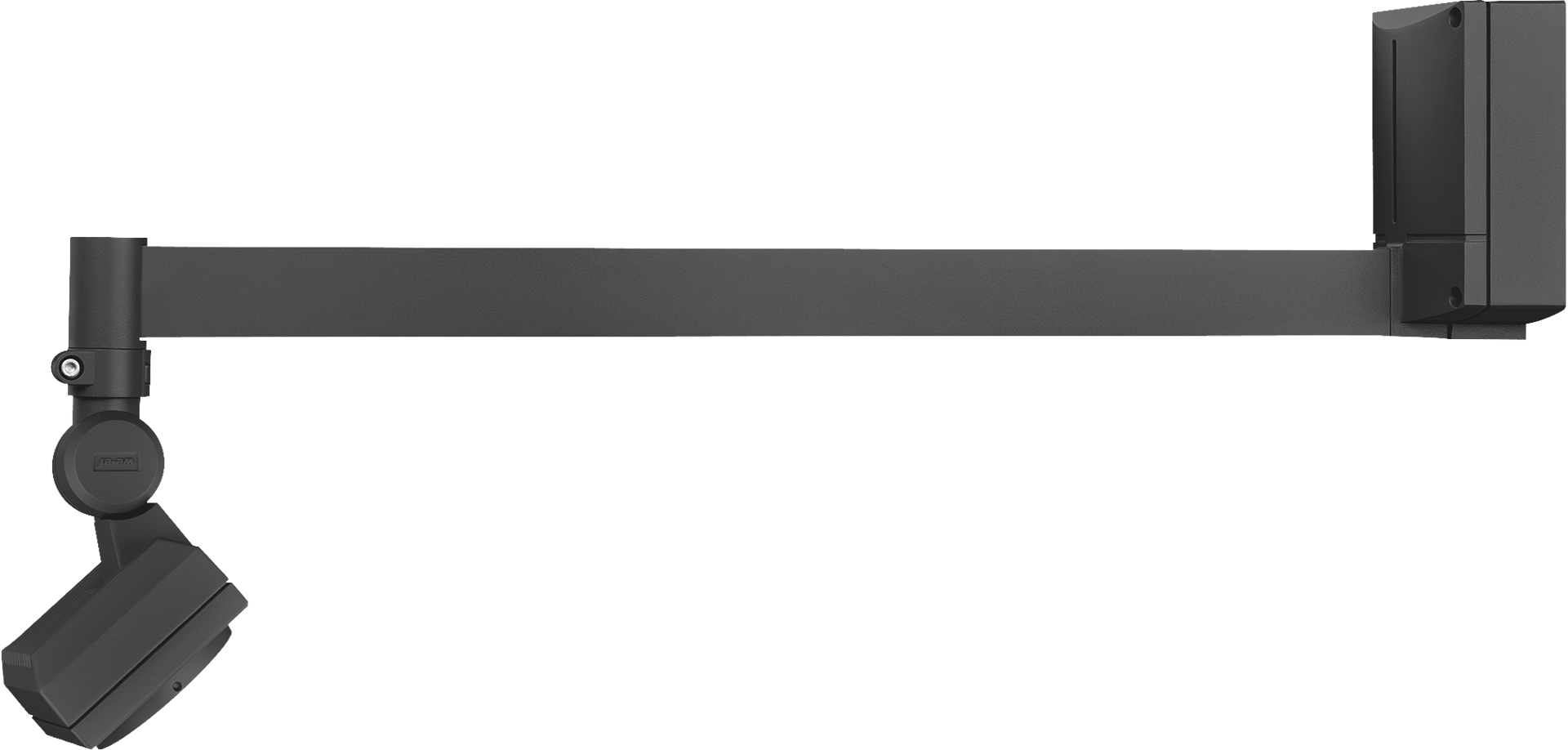

FLD111 LED #4
Choose a variant:
IP55, Class I. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection + primer including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Knuckle permits 350° horizontal and 180° vertical aiming of optics. 2700 K option available on request.
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
Material
| Body | Marine-grade, all-aluminium construction |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware (unpainted) |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK07 |
| Ingress Protection | IP55 |
| Finish | Powdercoat finish in black RAL 9004, grey aluminium RAL 9007 or white RAL 9016 |
| Corrosion Protection | 5CE+Primer |
Electrical
| Ballast / Driver | Integral EC electronic converter in thermally-separated compartment |
| Power Supply | 230V / 50 Hz |
Additional Information
| Warranty | The product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details. |
- - - -
Accessories
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions | |
| WE-EF LIGHTING - TEN YEAR WARRANTY - LED LUMINAIRES |
