FLD100 series

FLD121 LED #4

Static White

Choose a variant:

Surface-Mounted

Spigot-Mounted

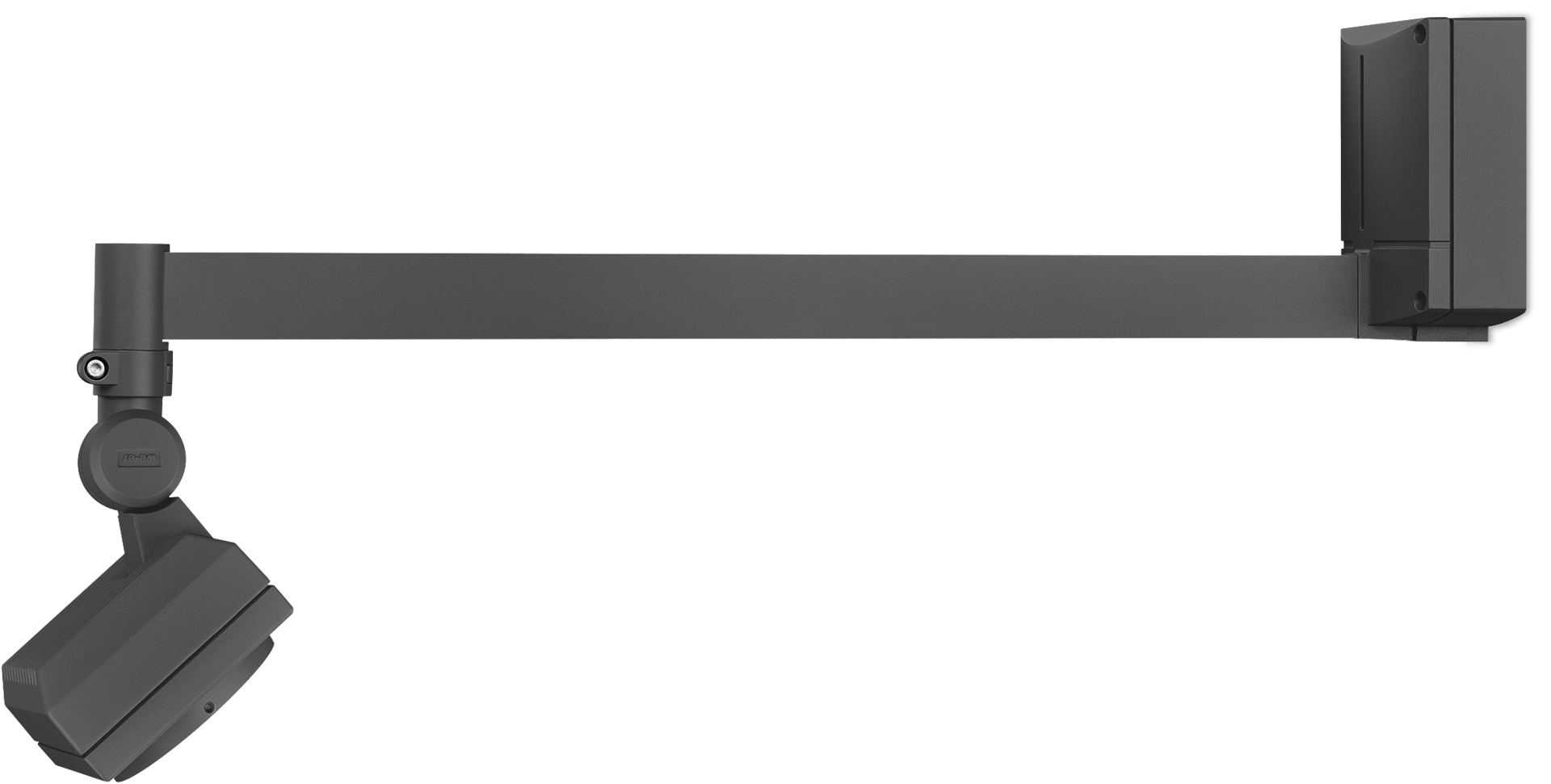

Wallbracket

Choose a family:

L95×W95 mm | FLD111 LED #4 L175×W130 mm | FLD121 LED #4 L200×W156 mm | FLD131 LED #4

Family Spec Sheet Installation Instructions More Downloads

IP55, Class I. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection + primer including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Knuckle permits 350° horizontal and 180° vertical aiming of optics. 2700 K option available on request.

Colours

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS Polymer Coated Stainless Steel Hardware (unpainted)
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP55
Corrosion Protection	5CE+Primer

Electrical

Ballast / Driver	Integral EC electronic converter in thermally-separated compartment
Power Supply	230V / 50 Hz

Additional Information

Warranty

The product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details.

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
145-9581	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1454.1	80
145-9582	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 3000 K	1393.4	80
145-9584	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1554.3	80
145-9585	symmetric, very narrow beam [EE]	LED-6/12W / 700 mA - 4000 K	1489.5	80
145-9586	symmetric, wide beam [B]	LED-6/12W / 700 mA - 3000 K	1148.3	80
145-9587	symmetric, wide beam [B]	LED-6/12W / 700 mA - 4000 K	1227.5	80
145-9588	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 3000 K	1492.9	80
145-9589	symmetric, very narrow beam, sharp cut-off [EES]	LED-6/12W / 700 mA - 4000 K	1595.9	80
145-9581	wallwash	LED-6/12W / 700 mA - 3000 K	1142.4	80
145-9584	wallwash	LED-6/12W / 700 mA - 4000 K	1221.2	80

Showing 1 to 10 of 10 entries.

Accessories

Optical Accessories

Control

Part-ID	Title	Specifications
		Text	PDF
145-9479	Wallwash lens IO-20
