FLD100

95 mm

FLD111

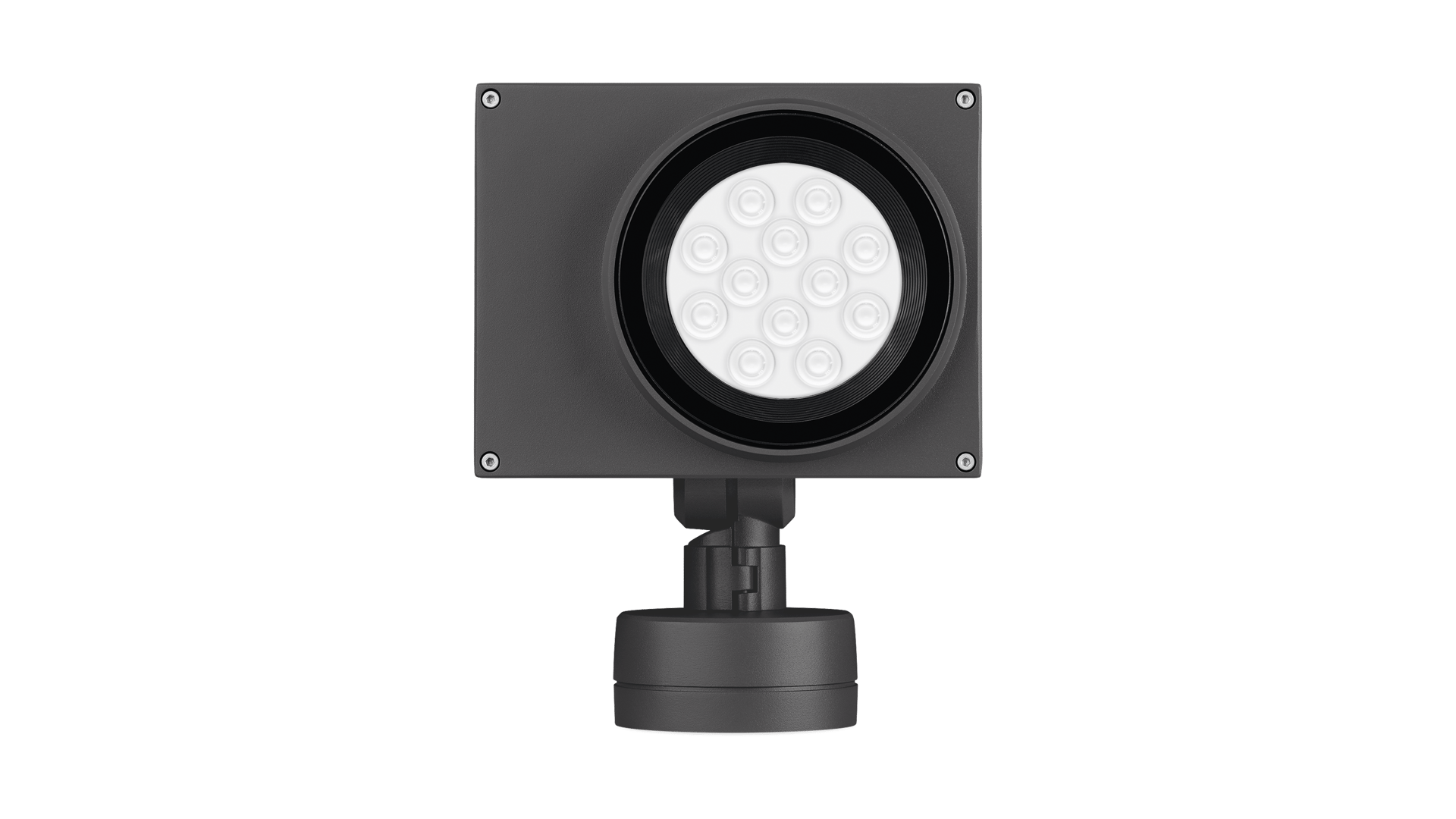

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection + primer including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. 2700 K option available on request. Optional 2200 K version available. To be specified at time of ordering.

Colors

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

RAL8019 Grey brown

Powdercoat finish available in 35 different colours

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS Polymer Coated Stainless Steel Hardware (unpainted)
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP66
Finish
Corrosion Protection	5CE+Primer
Mounting

Electrical

Ballast / Driver	Integral EC electronic converter in thermally-separated compartment
Cable
Power Factor
Power Supply	230V / 50 Hz
Surge Protection

Additional Information

Lifetime	Ta=40° L90B10 > 90000h
Warranty	The product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details.

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-9549	symmetric, medium beam [M]	LED-12/24W / 700 mA - 3000 K	2908.1	80
145-9550	symmetric, very narrow beam [EE]	LED-12/24W / 700 mA - 3000 K	2786.9	80
145-9552	symmetric, medium beam [M]	LED-12/24W / 700 mA - 4000 K	3108.7	80
145-9553	symmetric, very narrow beam [EE]	LED-12/24W / 700 mA - 4000 K	2979.1	80
145-9604	symmetric, wide beam [B]	LED-12/24W / 700 mA - 3000 K	2296.7	80
145-9605	symmetric, very narrow beam, sharp cut-off [EES]	LED-12/24W / 700 mA - 3000 K	2985.8	80
145-9606	symmetric, wide beam [B]	LED-12/24W / 700 mA - 4000 K	2455	80
145-9607	symmetric, very narrow beam, sharp cut-off [EES]	LED-12/24W / 700 mA - 4000 K	3191.8	80
145-9549	wallwash	LED-12/24W / 700 mA - 3000 K	2284.9	80
145-9552	wallwash	LED-12/24W / 700 mA - 4000 K	2442.4	80
145-0316	symmetric, wide beam [B]	LED-12/24W / 700 mA - 2700 K	2138.3	80
145-0317	symmetric, medium beam [M]	LED-12/24W / 700 mA - 2700 K	2715.8	80
145-0318	symmetric, very narrow beam [EE]	LED-12/24W / 700 mA - 2700 K	2570.2	80
145-0319	symmetric, very narrow beam, sharp cut-off [EES]	LED-12/24W / 700 mA - 2700 K	2779.9	80
