FLD121 LED #2

#2

Back
Family Spec Sheet
95 mm 95 mm 95 mm 95 mm
175 mm 175 mm 130 mm 130 mm
100 mm 100 mm 156 mm 156 mm

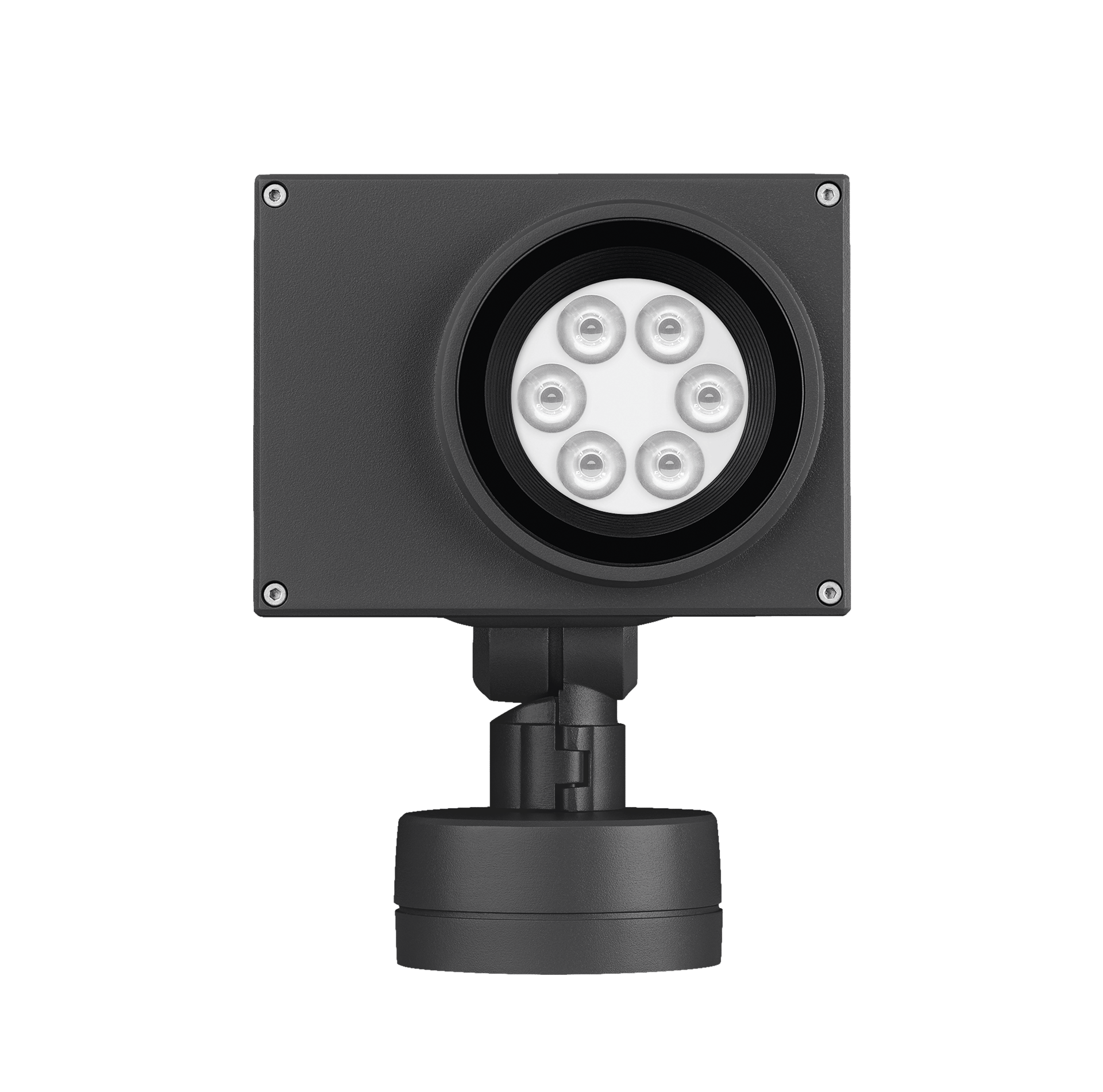

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection + primer including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory- sealed and does not need to be opened during the installation. Optional 2200 K version available. To be specified at time of ordering.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS Polymer Coated Stainless Steel Hardware (unpainted)
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK07
SchutzartIP66
AbdeckungPowdercoat finish in black RAL9004, grey aluminium RAL9007, white aluminium RAL9006 or white RAL9016
Korrosionsschutz5CE+Primer
Befestigung

Elektrik

LED TreiberIntegral EC electronic converter in thermally-separated compartment
Kabel
Leistungsfaktor
Netz230V / 50 Hz
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=40° L90B10 > 90000h
WarrantyThe product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details.

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
145-9500symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1454.180EC2.20
145-9501symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1554.380EC2.20
145-9502symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K1148.380EC2.20
145-9503symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K1227.580EC2.20
145-9504symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1393.480EC2.20
145-9505symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1489.580EC2.20
145-9506symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1492.980EC2.20
145-9507symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1595.980EC2.20
145-9500wallwashLED-6/12W / 700 mA - 3000 K1142.480EC2.20
145-9501wallwashLED-6/12W / 700 mA - 4000 K1221.280EC2.20
145-0312symmetric, wide beam [B]LED-6/12W / 700 mA - 2700 K1069.180EC2.20
145-0313symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1360.880EC2.20
145-0314symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1297.380EC2.20
145-0315symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K139080EC2.20
Showing 1 to 14 of 14 Entries
