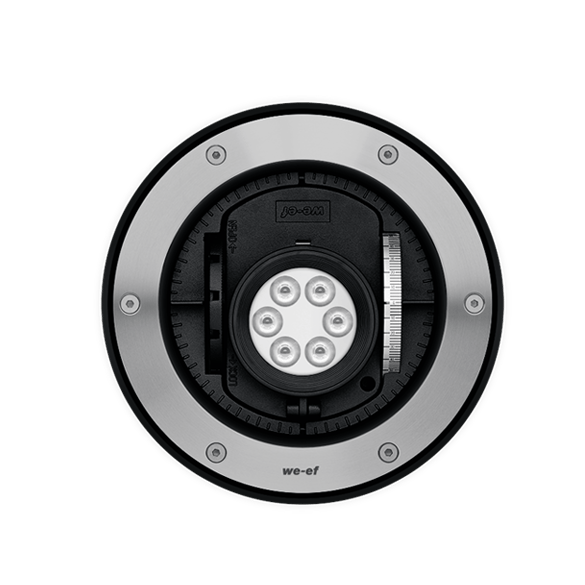

ETC330-GB LED
IP67. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 0.5 meters of flexible, PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply. 2700 K option available on request. ASC Anti Slip Coating on request. IMPORTANT! Inground blockouts must be installed with effective drainage, watch here.
Colours
Material
| Body | Stainless steel construction |
| Lens | Safety glass lens, max. load 5 tonnes |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware (unpainted) |
| Gasket | Silicone rubber gasket |
Electrical
| Ballast / Driver | Safety glass lens, max. load 5 tonnes |
| Cable | Complete with cable gland and 0.5 m of flexible PVC-free cable |
| Power Supply | 230V / 50 Hz |
| Surge Protection | Junction box supplied |
