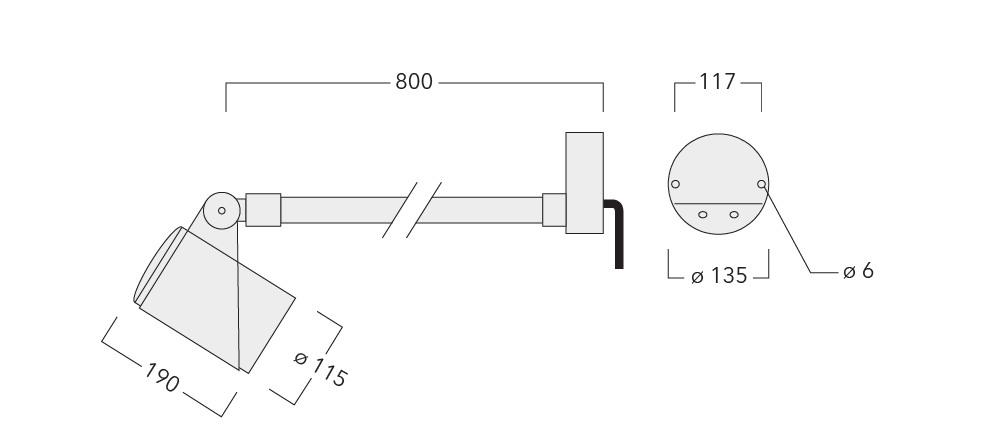

FLC321 Wall bracket

Back
Wallbracket
Spigot Mounted
Surface Mounted
Family Spec Sheet
Standard Projector Standard Projector 112 mm 112 mm
Standard Projector Standard Projector 115 mm 115 mm
Standard Projector Standard Projector 193 mm 193 mm
Micro Projector Micro Projector 58 mm 58 mm
Micro Projector Micro Projector 85 mm 85 mm
Micro Projector Micro Projector 115 mm 115 mm

IP66. IK08. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.
Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. 1-10 V analogue dimming or DALI interface available on request; refer to accessory listings. 24VDC low voltage versions, ON-OFF or 0-10 V Class III. Knuckle permits 340° rotation, forward tilt 54° and backward tilt 90°. Remote 24VDC power supply to be ordered separately. Optical accessories are factory-installed. To be specified at time of ordering.

Eigenschaften

Material

GehäuseMarine-grade, all aluminium construction
SchraubenPCS hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK08
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
BefestigungKnuckle permits 340° rotation, forward tilt 54° and backward tilt 90°

Elektrik

LED TreiberIntegral EC electronic converter (mains voltage). Integral LED electronic driver (24VDC low voltage).
KabelTwo cable entries
Leistungsfaktor
Netz
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=25° L90B10 > 90000h

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
145-7900symmetric, wide beam [B]LED-6/12W / 700 mA - 2700 K887.880EC4.30
145-7902symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K953.580EC4.30
145-7904symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K1019.380EC4.30
145-7906symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1162.680EC4.30
145-7908symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1248.780EC4.30
145-7910symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1334.980EC4.30
145-7912symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1224.780EC2.60
145-7914symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1315.480EC2.60
145-7916symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1406.280EC2.60
145-7918symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K1259.780EC2.60
145-7920symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K135380EC2.60
145-7922symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1446.380EC2.60
145-7901symmetric, wide beam [B]LED-6/18W / 1050 mA - 2700 K123380EC4.30
145-7903symmetric, wide beam [B]LED-6/18W / 1050 mA - 3000 K1331.780EC4.30
145-7905symmetric, wide beam [B]LED-6/18W / 1050 mA - 4000 K1413.980EC4.30
145-7907symmetric, medium beam [M]LED-6/18W / 1050 mA - 2700 K1614.880EC4.30
145-7909symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K1743.980EC4.30
145-7911symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K1851.680EC4.30
145-7913symmetric, very narrow beam [EE]LED-6/18W / 1050 mA - 2700 K170180EC4.30
145-7915symmetric, very narrow beam [EE]LED-6/18W / 1050 mA - 3000 K1837.180EC4.30
145-7917symmetric, very narrow beam [EE]LED-6/18W / 1050 mA - 4000 K1950.580EC4.30
145-7919symmetric, very narrow beam, sharp cut-off [EES]LED-6/18W / 1050 mA - 2700 K1749.680EC4.30
145-7921symmetric, very narrow beam, sharp cut-off [EES]LED-6/18W / 1050 mA - 3000 K1889.580EC4.30
145-7923symmetric, very narrow beam, sharp cut-off [EES]LED-6/18W / 1050 mA - 4000 K2006.280EC4.30
145-7344symmetric, wide beam [B]LED-6/26W / 1400 mA - 2700K1665.880EC4.30
Showing 1 to 25 of 63 Entries
