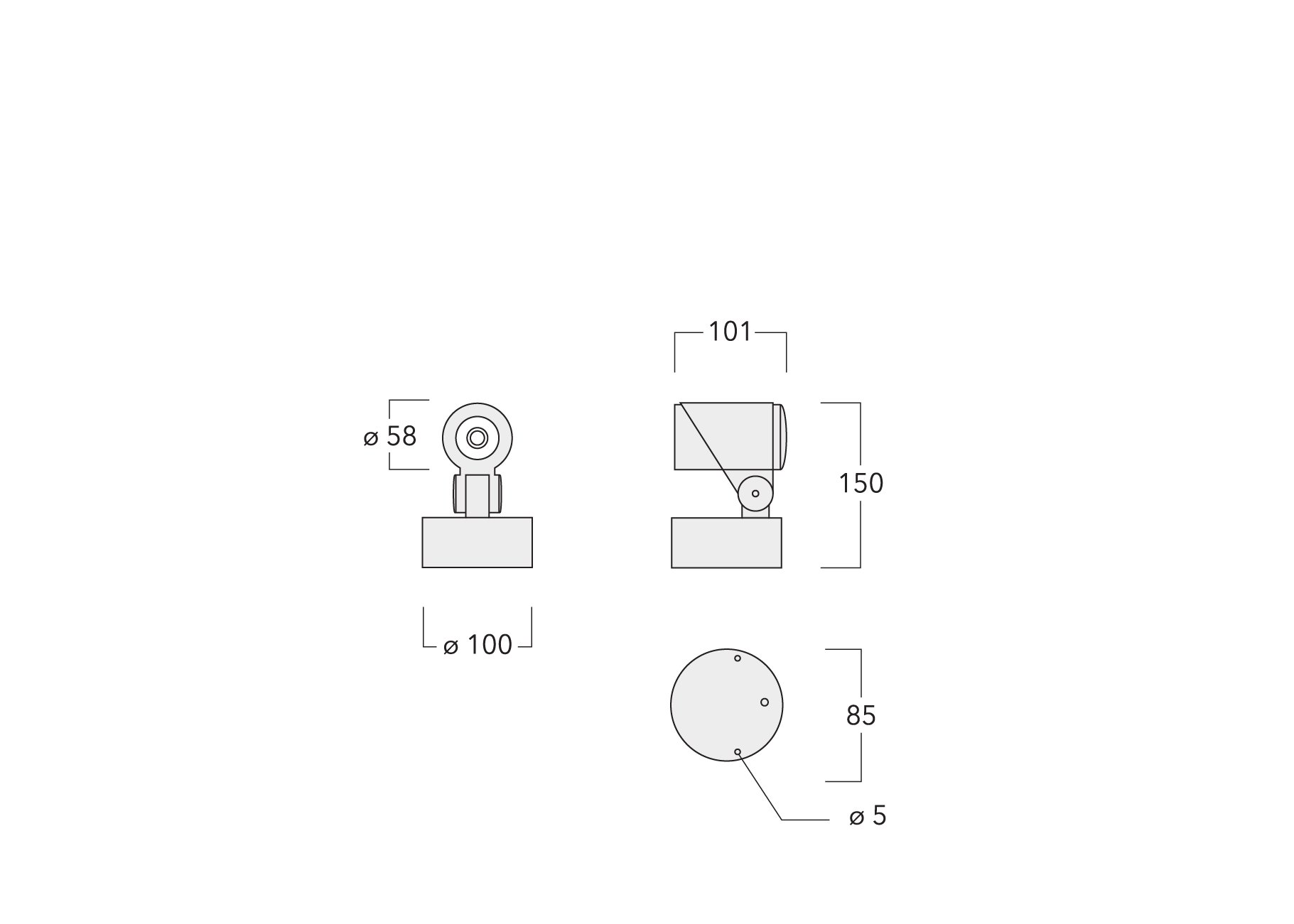

FLC301 Surface mounted

Back
Wallbracket
Spigot Mounted
Surface Mounted
Family Spec Sheet
FCL301 FCL301 58 mm 58 mm
FLC311 FLC311 85 mm 85 mm
FLC321 FLC321 115 mm 115 mm

IP66. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.
Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Remote 24VDC power supply to be ordered separately. Optical accessories are factory-installed. To be specified at time of ordering.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK07
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
Befestigung

Elektrik

LED TreiberIntegral EC electronic converter (mains voltage). Integral ED electronic driver (24VDC low voltage).
Kabel
Leistungsfaktor>0.9
Netz
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=25° L90B10 > 90000h

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
145-7192symmetric, wide beam [B]LED-1/4W / 350 mA – 2700 K379.180EC0.80
145-7193symmetric, wide beam [B]LED-1/4W / 350 mA – 3000 K379.180EC0.80
145-7194symmetric, wide beam [B]LED-1/4W / 350 mA – 4000 K410.180EC0.80
145-7195symmetric, medium beam [M]LED-1/4W / 350 mA – 2700 K398.480EC0.80
145-7196symmetric, medium beam [M]LED-1/4W / 350 mA – 3000 K398.480EC0.80
145-7197symmetric, medium beam [M]LED-1/4W / 350 mA – 4000 K43180EC0.80
145-7243symmetric, narrow beam [E]LED-1/4W / 350 mA – 2700 K415.280EC0.80
145-7244symmetric, narrow beam [E]LED-1/4W / 350 mA – 3000 K415.280EC0.80
145-7245symmetric, narrow beam [E]LED-1/4W / 350 mA – 4000 K449.180EC0.80
145-7198symmetric, very narrow beam [EE]LED-1/4W / 350 mA – 2700 K415.580EC0.80
145-7199symmetric, very narrow beam [EE]LED-1/4W / 350 mA – 3000 K415.580EC0.80
145-7200symmetric, very narrow beam [EE]LED-1/4W / 350 mA – 4000 K449.580EC0.80
145-7201symmetric, very narrow beam, sharp cut-off [EES]LED-1/4W / 350 mA – 2700 K382.280EC0.80
145-7202symmetric, very narrow beam, sharp cut-off [EES]LED-1/4W / 350 mA – 3000 K382.280EC0.80
145-7203symmetric, very narrow beam, sharp cut-off [EES]LED-1/4W / 350 mA – 4000 K411.680EC0.80
145-7192symmetric, wide beam [B]LED-1/4W / 350 mA – 2700 K379.180EC0.80
145-7193symmetric, wide beam [B]LED-1/4W / 350 mA – 3000 K379.180EC0.80
145-7194symmetric, wide beam [B]LED-1/4W / 350 mA – 4000 K410.180EC0.80
145-7195symmetric, medium beam [M]LED-1/4W / 350 mA – 2700 K398.480EC0.80
145-7196symmetric, medium beam [M]LED-1/4W / 350 mA – 3000 K398.480EC0.80
145-7197symmetric, medium beam [M]LED-1/4W / 350 mA – 4000 K43180EC0.80
145-7198symmetric, very narrow beam [EE]LED-1/4W / 350 mA – 2700 K415.580EC0.80
145-7199symmetric, very narrow beam [EE]LED-1/4W / 350 mA – 3000 K415.580EC0.80
145-7200symmetric, very narrow beam [EE]LED-1/4W / 350 mA – 4000 K449.580EC0.80
145-7201symmetric, very narrow beam, sharp cut-off [EES]LED-1/4W / 350 mA – 2700 K382.280EC0.80
Showing 1 to 25 of 54 Entries
