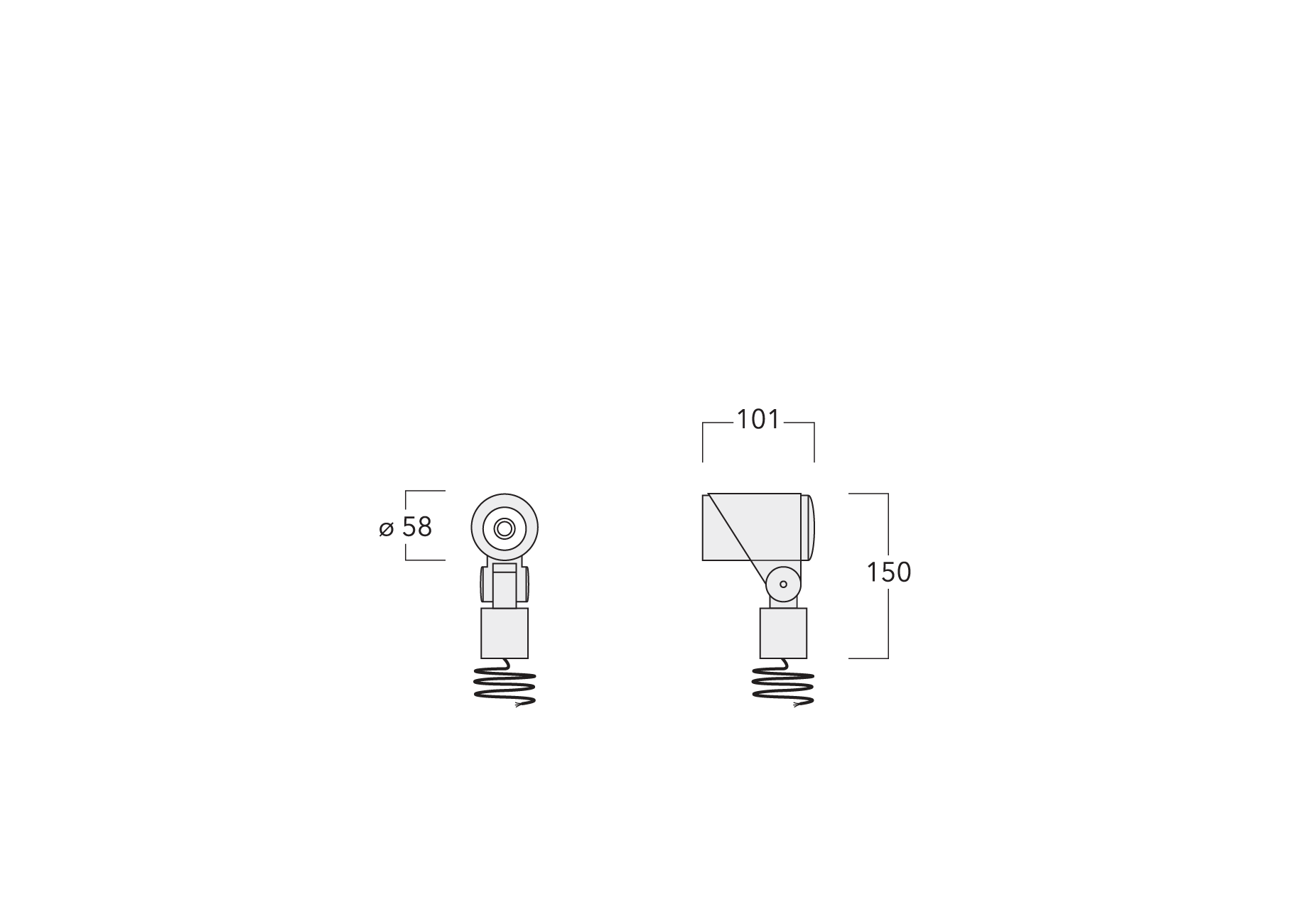

FLC301 Spigot mounted

IP66. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Including 1.5 m of flexible PVC free cable. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. ON-OFF (+0025) or DALI (+0026) Class II can be ordered remote gear box 145-7234. 24VDC low voltage versions, ON-OFF or DALI (only 4W available) Class III. Remote 24VDC power supply to be ordered separately. Optical accessories are factory-installed. To be specified at time of ordering.

Colours

RAL9004 Signal black

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK07
Ingress Protection	IP66
Corrosion Protection	5CE
Mounting	Slipfitter suitable for mounting accessories

Electrical

Ballast / Driver	Integral EC electronic converter (mains voltage). Integral ED electronic driver (24VDC low voltage).
Cable	Including 1.5 m of flexible PVC free cable
Power Factor	>0.9

Additional Information

Lifetime

Ta=25° L90B10 > 90000h

Light Distribution

Delivered Lumen

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-7180	symmetric, wide beam [B]	LED-1/4W / 350 mA – 2700 K	379.1	80
145-7181	symmetric, wide beam [B]	LED-1/4W / 350 mA – 3000 K	379.1	80
145-7182	symmetric, wide beam [B]	LED-1/4W / 350 mA – 4000 K	410.1	80
145-7183	symmetric, medium beam [M]	LED-1/4W / 350 mA – 2700 K	398.4	80
145-7184	symmetric, medium beam [M]	LED-1/4W / 350 mA – 3000 K	398.4	80
145-7185	symmetric, medium beam [M]	LED-1/4W / 350 mA – 4000 K	431	80
145-7240	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 2700 K	415.2	80
145-7241	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 3000 K	415.2	80
145-7242	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 4000 K	449.1	80
145-7186	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 2700 K	415.5	80
145-7187	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 3000 K	415.5	80
145-7188	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 4000 K	449.5	80
145-7189	symmetric, very narrow beam, sharp cut-off [EES]	LED-1/4W / 350 mA – 2700 K	382.2	80
145-7190	symmetric, very narrow beam, sharp cut-off [EES]	LED-1/4W / 350 mA – 3000 K	382.2	80
145-7191	symmetric, very narrow beam, sharp cut-off [EES]	LED-1/4W / 350 mA – 4000 K	411.6	80
145-7180	symmetric, wide beam [B]	LED-1/4W / 350 mA – 2700 K	379.1	80
145-7181	symmetric, wide beam [B]	LED-1/4W / 350 mA – 3000 K	379.1	80
145-7182	symmetric, wide beam [B]	LED-1/4W / 350 mA – 4000 K	410.1	80
145-7183	symmetric, medium beam [M]	LED-1/4W / 350 mA – 2700 K	398.4	80
145-7184	symmetric, medium beam [M]	LED-1/4W / 350 mA – 3000 K	398.4	80
145-7185	symmetric, medium beam [M]	LED-1/4W / 350 mA – 4000 K	431	80
145-7240	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 2700 K	415.2	80
145-7241	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 3000 K	415.2	80
145-7242	symmetric, narrow beam [E]	LED-1/4W / 350 mA – 4000 K	449.1	80
145-7186	symmetric, very narrow beam [EE]	LED-1/4W / 350 mA – 2700 K	415.5	80

Showing 1 to 25 of 54 Entries
