FLC300

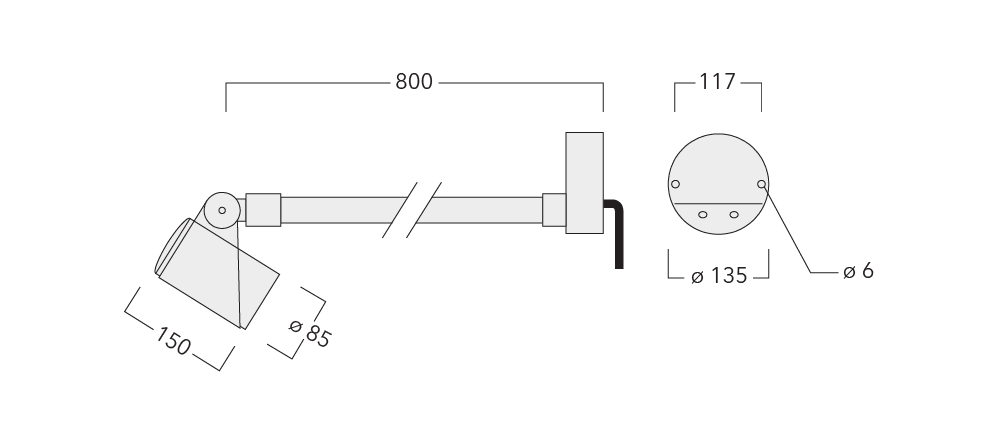

112 mm

Standard Projector

115 mm

IP66. IK08. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, DALI interface Class I. 1-10 V analogue dimming available on request; refer to accessory listings. 24VDC low voltage versions, 0-10 V analogue dimming or DALI interface Class III available on request. Knuckle permits 340° rotation, forward tilt 54° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.

Colors

Material

Body: Marine-grade, all aluminium construction

Fasteners: PCS hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK08

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting: Knuckle permits 340° rotation, forward tilt 54° and backward tilt 90°

Electrical

Ballast / Driver: Integral EC electronic converter (mains voltage). Integral ED electronic driver (24VDC low voltage).

Cable: Two cable entries

Power Factor:

Power Supply:

Surge Protection:

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

Light Distribution

Delivered Lumen

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-7672	symmetric, wide beam [B]	LED-3/6W / 180 mA - 2700 K	595.4	80
145-7675	symmetric, wide beam [B]	LED-3/6W / 180 mA - 3000 K	595.4	80
145-7678	symmetric, wide beam [B]	LED-3/6W / 180 mA - 4000 K	641.2	80
145-7814	symmetric, wide beam [B]	LED-3/6W / 700 mA - 2700 K	618	80
145-7815	symmetric, wide beam [B]	LED-3/6W / 700 mA - 3000 K	663.8	80
145-7816	symmetric, wide beam [B]	LED-3/6W / 700 mA - 4000 K	709.6	80
145-7673	symmetric, wide beam [B]	LED-3/9W / 250 mA - 2700 K	835.8	80
145-7676	symmetric, wide beam [B]	LED-3/9W / 250 mA - 3000 K	835.8	80
145-7679	symmetric, wide beam [B]	LED-3/9W / 250 mA - 4000 K	893.1	80
145-7674	symmetric, wide beam [B]	LED-3/12W / 350 mA - 2700 K	1122.1	80
145-7677	symmetric, wide beam [B]	LED-3/12W / 350 mA - 3000 K	1122.1	80
145-7680	symmetric, wide beam [B]	LED-3/12W / 350 mA - 4000 K	1213.7	80
145-7681	symmetric, medium beam [M]	LED-3/6W / 180 mA - 2700 K	600.4	80
145-7684	symmetric, medium beam [M]	LED-3/6W / 180 mA - 3000 K	600.4	80
145-7687	symmetric, medium beam [M]	LED-3/6W / 180 mA - 4000 K	646.6	80
145-7817	symmetric, medium beam [M]	LED-3/6W / 700 mA - 2700 K	622.9	80
145-7818	symmetric, medium beam [M]	LED-3/6W / 700 mA - 3000 K	669	80
145-7819	symmetric, medium beam [M]	LED-3/6W / 700 mA - 4000 K	715.2	80
145-7682	symmetric, medium beam [M]	LED-3/9W / 250 mA - 2700 K	842.9	80
145-7685	symmetric, medium beam [M]	LED-3/9W / 250 mA - 3000 K	842.9	80
145-7688	symmetric, medium beam [M]	LED-3/9W / 250 mA - 4000 K	900.6	80
145-7683	symmetric, medium beam [M]	LED-3/12W / 350 mA - 2700 K	1131.6	80
145-7686	symmetric, medium beam [M]	LED-3/12W / 350 mA - 3000 K	1131.6	80
145-7689	symmetric, medium beam [M]	LED-3/12W / 350 mA - 4000 K	1224	80
145-7690	symmetric, very narrow beam [EE]	LED-3/6W / 180 mA - 2700 K	605.2	80

Showing 1 to 25 of 75 Entries
