FLC300 series

FLC321 Spigot mounted

Static White

Choose a variant:

Spigot
Surface
Wallbracket

Choose a family:

FLC301 Spigot mounted
Diameter ⌀: 2.28 in
FLC311 Spigot mounted
Diameter ⌀: 3.35 in
FLC321 Spigot mounted
Diameter ⌀: 4.53 in
Home
Products
Floodlights
FLC321 Spigot mounted
Family Spec Sheet Installation Instructions More Downloads

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Including 5 ft of flexible PVC free cable. Optical accessories are factory-installed. To be specified at time of ordering. 12W, 18W, 26W / 120-277V / 0-10V Dimming. 12W, 18W / 24V DC / 0-10V Dimming. (available upon request) Contact the factory for 277V/347V options.

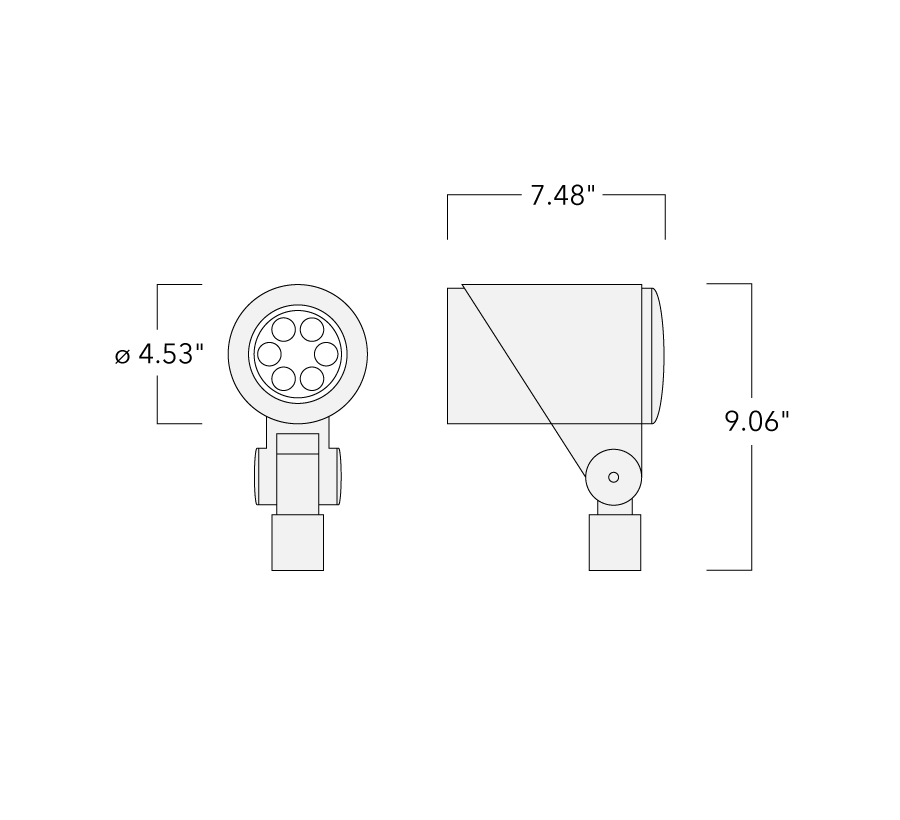

FLC321 Spigot mounted Schematics
Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
MountingSlipfitter suitable for mounting accessories
Electrical
Ballast / Driver120-277V AC/50-60 Hz (24VDC available upon request)
CableIncluding 5 ft of flexible PVC free cable
Power Factor>0.9
Power Supply120-277V AC/50-60 Hz (24VDC available upon request)
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
Dimming0-10V

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
145-9943symmetric, wide beam [W]LED-6/12W / 700 mA - 2700 K887.880 ULD
145-9945symmetric, wide beam [W]LED-6/12W / 700 mA - 3000 K953.580 ULD
145-9947symmetric, wide beam [W]LED-6/12W / 700 mA - 4000 K1019.380 ULD
145-9949symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1162.680 ULD
145-9951symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1248.780 ULD
145-9953symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1334.980 ULD
145-9955symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 2700 K1224.780 ULD
145-9957symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 3000 K1315.480 ULD
145-9959symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 4000 K1406.280 ULD
145-9961symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 2700 K1259.780 ULD
145-9963symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 3000 K135380 ULD
145-9965symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 4000 K1446.380 ULD
145-9944symmetric, wide beam [W]LED-6/18W / 1050 mA - 2700 K123380 ULD
145-9946symmetric, wide beam [W]LED-6/18W / 1050 mA - 3000 K1331.780 ULD
145-9948symmetric, wide beam [W]LED-6/18W / 1050 mA - 4000 K1413.980 ULD
145-9950symmetric, medium beam [M]LED-6/18W / 1050 mA - 2700 K1614.880 ULD
145-9952symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K1743.980 ULD
145-9954symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K1851.680 ULD
145-9956symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 2700 K170180 ULD
145-9958symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 3000 K1837.180 ULD
145-9960symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 4000 K1950.580 ULD
145-9962symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 2700 K1749.680 ULD
145-9964symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 3000 K1889.580 ULD
145-9966symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 4000 K2006.280 ULD
145-7320symmetric, wide beam [W]LED-6/26W / 1400 mA - 2700K1665.880 ULD
145-7321symmetric, wide beam [W]LED-6/26W / 1400 mA - 3000K1761.980 ULD
145-7322symmetric, wide beam [W]LED-6/26W / 1400 mA - 4000K184280 ULD
145-7323symmetric, medium beam [M]LED-6/26W / 1400 mA - 2700K2179.380
145-7324symmetric, medium beam [M]LED-6/26W / 1400 mA - 3000K230580 ULD
145-7325symmetric, medium beam [M]LED-6/26W / 1400 mA - 4000K2409.880 ULD
145-7326symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 2700K2258.580 ULD
145-7327symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 3000K2388.880 ULD
145-7328symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 4000K2497.480 ULD
145-7329symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 2700K2319.780 ULD
145-7330symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 3000K2453.580 ULD
145-7331symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 4000K256580 ULD
145-9955linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 2700 K109680 ULD
145-9957linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 3000 K1177.280 ULD
145-9959linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 4000 K1258.480 ULD
145-9956linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 2700 K1522.280 ULD
145-9958linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 3000 K164480 ULD
145-9960linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 4000 K1745.580 ULD
145-7326linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 2700K2027.280 ULD
145-7327linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 3000K2144.180 ULD
145-7328linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 4000K2241.680 ULD
145-9961linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 2700 K1125.580 ULD
145-9963linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 3000 K1208.880 ULD
145-9965linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 4000 K1292.280 ULD
145-9962linear spread, very narrow beam, 'sharp cut-off'LED-6/18W / 1050 mA - 2700 K1563.180 ULD
145-9964linear spread, very narrow beam, 'sharp cut-off'LED-6/18W / 1050 mA - 3000 K1688.280 ULD
Showing 1 to 50 of 63 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
0026Low voltage DALI interface
