ETC300 Série

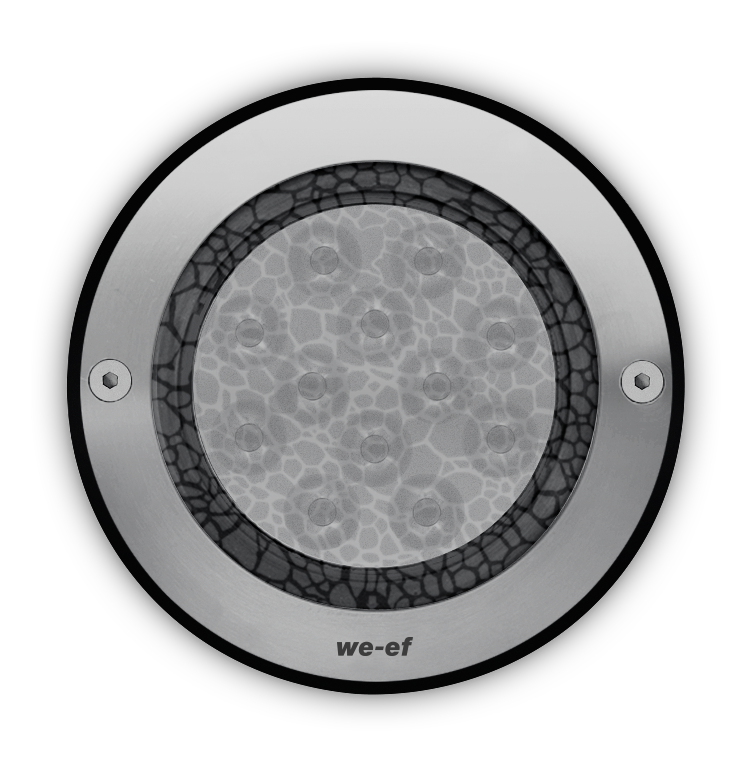

ETC330-GB LED ASC

Static White Colour Changer Tunable White

Choisissez une variante :

Fixed

Gimbal

Choisissez une famille :

D7.09" ⌀9.84" | ETC330-GB LED D7.09" ⌀9.84" | ETC330-GB LED ASC

Fiche technique de la famille Instructions d'installation Autres téléchargements

Anti-Slip ceramic Coating. IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. Anti-Slip ceramic Coating ASC to DIN 51130 (Trip Classification 10). Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. Factory-installed circuit board with High Efficiency LEDs. Gimbal mounted, 360° rotatable and 30° tiltable. 'No tool' removable gear/lens tray. The concrete-pour installation blockout is supplied as standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black). + XXX-XXXX (Accessory 1)

Couleurs

Stainless Steel

Description du matériel

Corps	Luminaire body constructed of deep drawn stainless steel. Outer housing composite material.
Visserie	PCS polymer coated stainless steel
Joint	Silicone rubber gasket
IK	IK10+
IP	IP69K - HIGHEST PROTECTION RATING AVAILABLE
Finition	Natural stainless steel
Protection contre la corrosion	5CE
Montage	Suitable for flush installation in concrete or earth. Suitable for walk-over and drive-over applications. Suitable Proper drainage and foundation support must be provided.

Description électrique

Câble	3 feet of flexible 18/3 cable
Alimentation électrique	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Informations complémentaires

Ambient Temperature	Ta less than 25 deg. C
Dimming	0-10V available in request. Must be factory fitted.

Distribution photométrique

Données en sortie de luminaire

Température de couleur

Code produit	Distribution photométrique	Source lumineuse	Données en sortie de luminaire	IRC	Caractéristiques
					Texte	PDF
185-2694	symmetric, wide beam [W]	LED-12/12W / 350 mA - 3000 K	1060.8	80
185-2695	symmetric, wide beam [W]	LED-12/12W / 350 mA - 4000 K	1060.8	80
185-2697	symmetric, medium beam [M]	LED-12/12W / 350 mA - 3000 K	1201.4	80
185-2697	linear spread, medium beam [M]	LED-12/12W / 350 mA - 3000 K	1122.4	80
185-2698	symmetric, medium beam [M]	LED-12/12W / 350 mA - 4000 K	1201.4	80
185-2698	linear spread, medium beam [M]	LED-12/12W / 350 mA - 4000 K	1122.4	80
185-2700	symmetric, very narrow beam [VN]	LED-12/12W / 350 mA - 3000 K	1154.8	80
185-2700	linear spread, very narrow beam [VN]	LED-12/12W / 350 mA - 3000 K	1014.3	80
185-2701	symmetric, very narrow beam [VN]	LED-12/12W / 350 mA - 4000 K	1154.8	80
185-2703	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-12/12W / 350 mA - 3000 K	1235.4	80
185-2703	linear spread, very narrow beam, 'sharp cut-off'	LED-12/12W / 350 mA - 3000 K	1093.5	80
185-2704	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-12/12W / 350 mA - 4000 K	1235.4	80
185-2704	linear spread, very narrow beam, 'sharp cut-off'	LED-12/12W / 350 mA - 4000 K	1093.5	80
