DOC140 LED [New Construction]

Static White Darklight Darklight + Tunable White

Choose a family:

D3.78" ⌀4.61" | DOC110 LED [For Remodel] D4.49" ⌀4.61" | DOC110 LED [New Construction] D3.78" ⌀6.10" | DOC120 LED [For Remodel] D4.49" ⌀6.10" | DOC120 LED [New Construction] D3.78" ⌀8.50" | DOC140 LED [For Remodel] D4.49" ⌀8.50" | DOC140 LED [New Construction]
Home
Products
Ceiling Luminaires
DOC140 LED [New Construction]
Family Spec Sheet Installation Instructions More Downloads

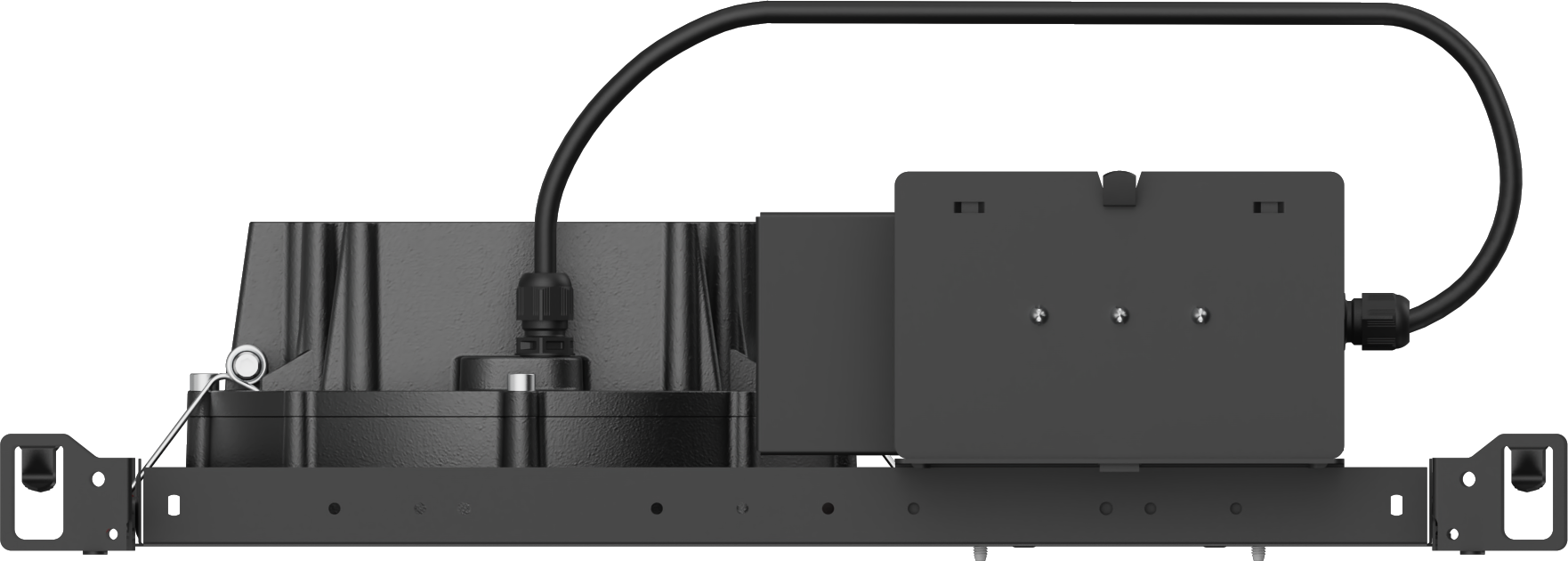

DOC140 LED for new construction. For remodel projects, see DOC140 LED [For Remodel] version. IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Separate IP66 driver housing. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 0-10V Dimming comes standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

DOC140 LED [New Construction] Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
CableTwo cable entries
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
134-6400symmetric, very narrow beam [VN]LED-24/48W / 700 mA - 3000 K507780
134-6401symmetric, very narrow beam [VN]LED-24/48W / 700 mA - 4000 K507780
134-6402symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/48W / 700 mA - 3000 K5464.380
134-6403symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/48W / 700 mA - 4000 K5464.380
134-6404symmetric, medium beam [M]LED-24/48W / 700 mA - 3000 K5128.880
134-6405symmetric, medium beam [M]LED-24/48W / 700 mA - 4000 K5128.880
134-6406symmetric, wide beam [W]LED-24/48W / 700 mA - 3000 K4570.280
134-6407symmetric, wide beam [W]LED-24/48W / 700 mA - 4000 K4570.280
Showing 1 to 8 of 8 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
134-1760IO-180-DOC140-LED
ItemDownload
Product Images
Photometrics
Installation Instructions
