DOC120 LED [New Construction]
Family Spec Sheet Installation Instructions More Downloads

DOC120 LED for new construction. For remodel projects, see DOC120 LED [For Remodel] version. IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Separate IP66 driver housing. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 0-10V Dimming comes standard with luminaire. Optional 2200 K version available, to be specified at time of ordering. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

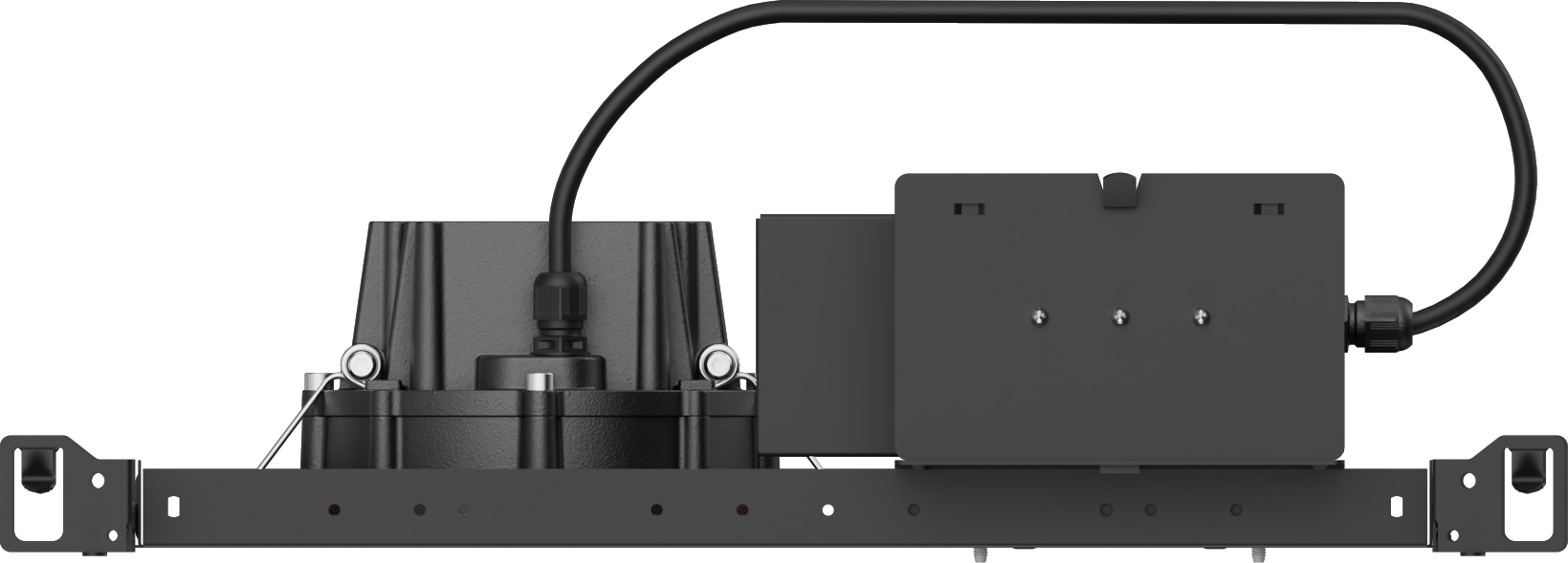

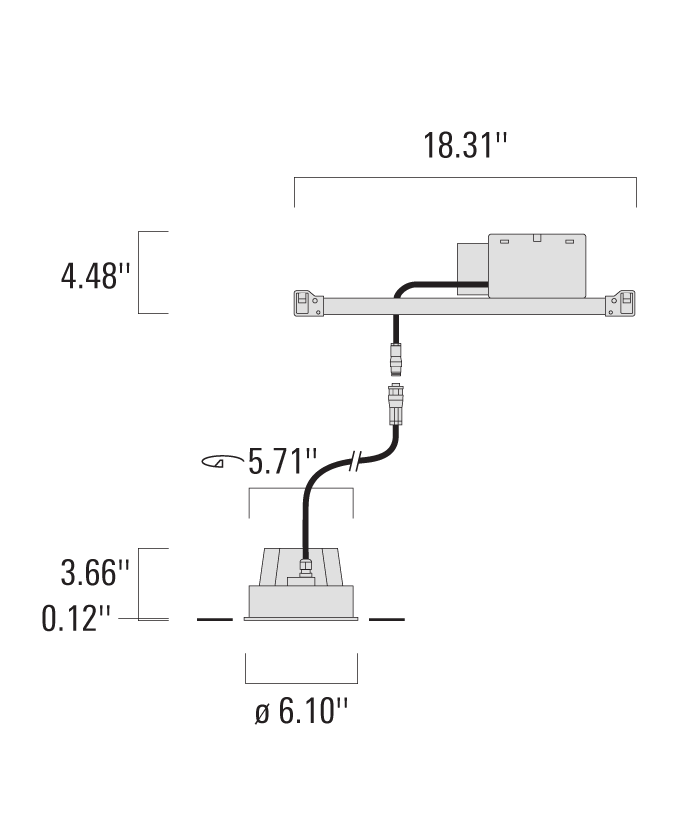

DOC120 LED [New Construction] Schematics
Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
CableTwo cable entries
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Rated Lumen

Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
134-6205symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K2542.880
134-6200symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 3000 K2445.380
134-6201symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 4000 K2445.380
134-6202symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 3000 K261080
134-6203symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 4000 K261080
134-6204symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K2542.880
134-6206symmetric, wide beam [W]LED-12/24W / 700 mA - 3000 K2297.380
134-6207symmetric, wide beam [W]LED-12/24W / 700 mA - 4000 K2297.380
Showing 1 to 8 of 8 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
134-1746IO-20-WW-DOC120-LED
