DOC120-FT LED [For Remodel]
Family Spec Sheet Installation Instructions More Downloads

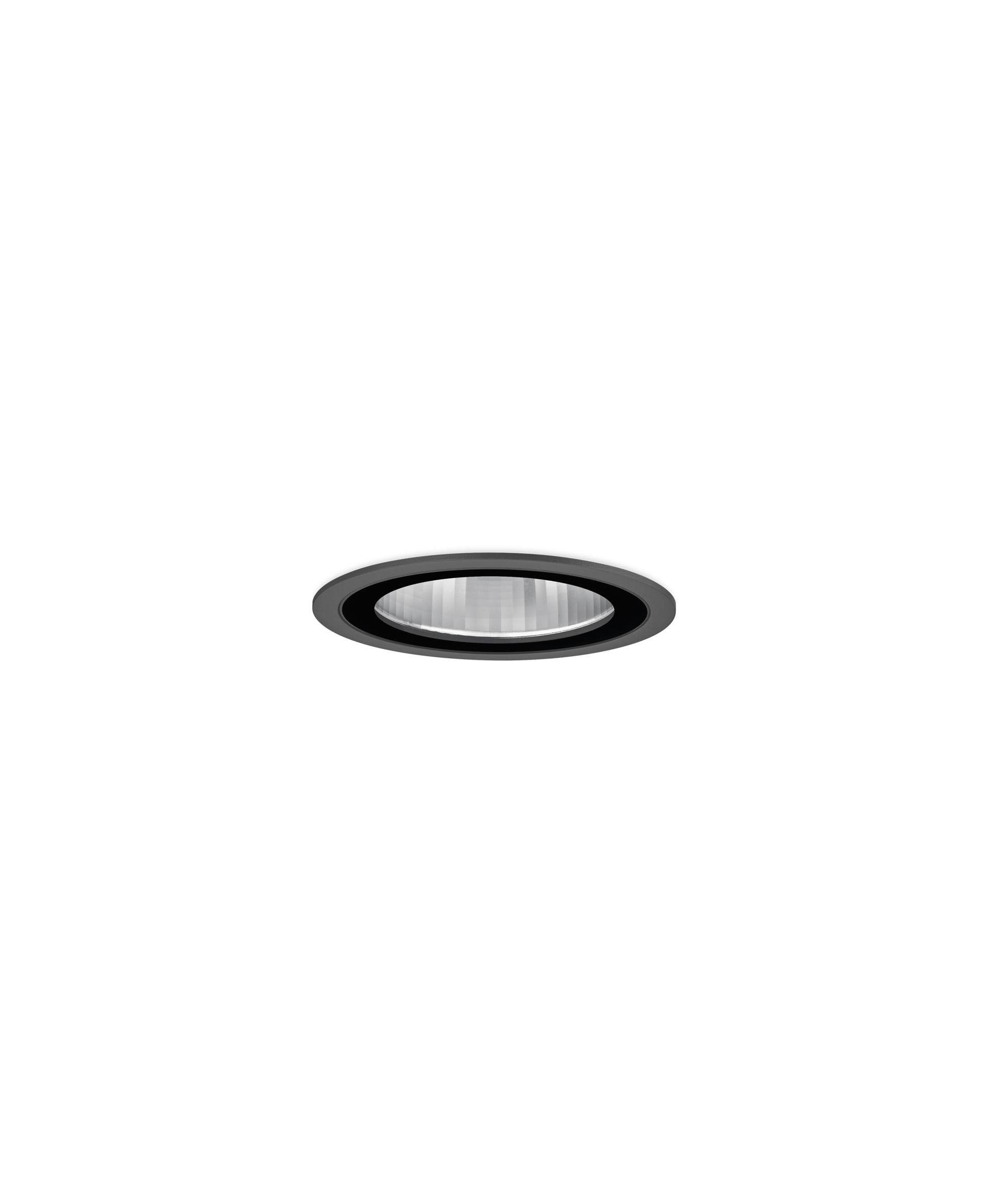

DOC120-FT LED for remodel projects. For new construction, see DOC120-FT LED [New Construction] version. IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Integral driver, thermally separated. Darklight anodized aluminum reflector for superior illumination and glare control. Factory installed LED circuit board. DMX interface. A maximum of one internal optical accessory, to be specified at time of ordering. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

DOC120-FT LED [For Remodel] Schematics
Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Corrosion Protection5CE
MountingA pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings. To be ordered separately.
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
CableTwo cable entries
Power Factor> 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeTa=25°/40° L70B50 > 50000h

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
134-1855symmetric, wide beam [W]LED-FT-17W (3000K)1743.380 ULD
134-1856symmetric, wide beam [W]LED-FT-17W (4000K)1817.180 ULD
134-1857symmetric, medium beam [M]LED-FT-17W (3000K)1757.280 ULD
134-1858symmetric, medium beam [M]LED-FT-17W (4000K)1831.680 ULD
134-1859symmetric, narrow beam [E]LED-FT-17W (3000K)824.180 ULD
134-1860symmetric, narrow beam [E]LED-FT-17W (4000K)85980 ULD
134-1861symmetric, wide beam [W]LED-FT-24W (3000K)2396.380 ULD
134-1862symmetric, wide beam [W]LED-FT-24W (4000K)2498.680 ULD
134-1863symmetric, medium beam [M]LED-FT-24W (3000K)2415.580 ULD
134-1864symmetric, medium beam [M]LED-FT-24W (4000K)2518.580 ULD
134-1865symmetric, narrow beam [E]LED-FT-24W (3000K)1132.980 ULD
134-1866symmetric, narrow beam [E]LED-FT-24W (4000K)1181.280 ULD
134-1919symmetric, wide beam [W]LED-FT-17W (2700K)1666.680 ULD
134-1920symmetric, wide beam [W]LED-FT-24W (2700K)2299.880 ULD
134-1921symmetric, medium beam [M]LED-FT-17W (2700K)168080 ULD
134-1922symmetric, medium beam [M]LED-FT-24W (2700K)2318.280 ULD
134-1923symmetric, narrow beam [E]LED-FT-17W (2700K)787.980 ULD
134-1924symmetric, narrow beam [E]LED-FT-24W (2700K)1087.280 ULD
Showing 1 to 18 of 18 entries.
