DOC120 LED [For Remodel]

Back
Standard Colours
Dark Light
Dark Light & Tunable White
Family Spec Sheet
96 mm 96 mm 117 mm 117 mm
96 mm 96 mm 155 mm 155 mm
96 mm 96 mm 216 mm 216 mm
101 mm 101 mm 154 mm 154 mm
102 mm 102 mm 250 mm 250 mm

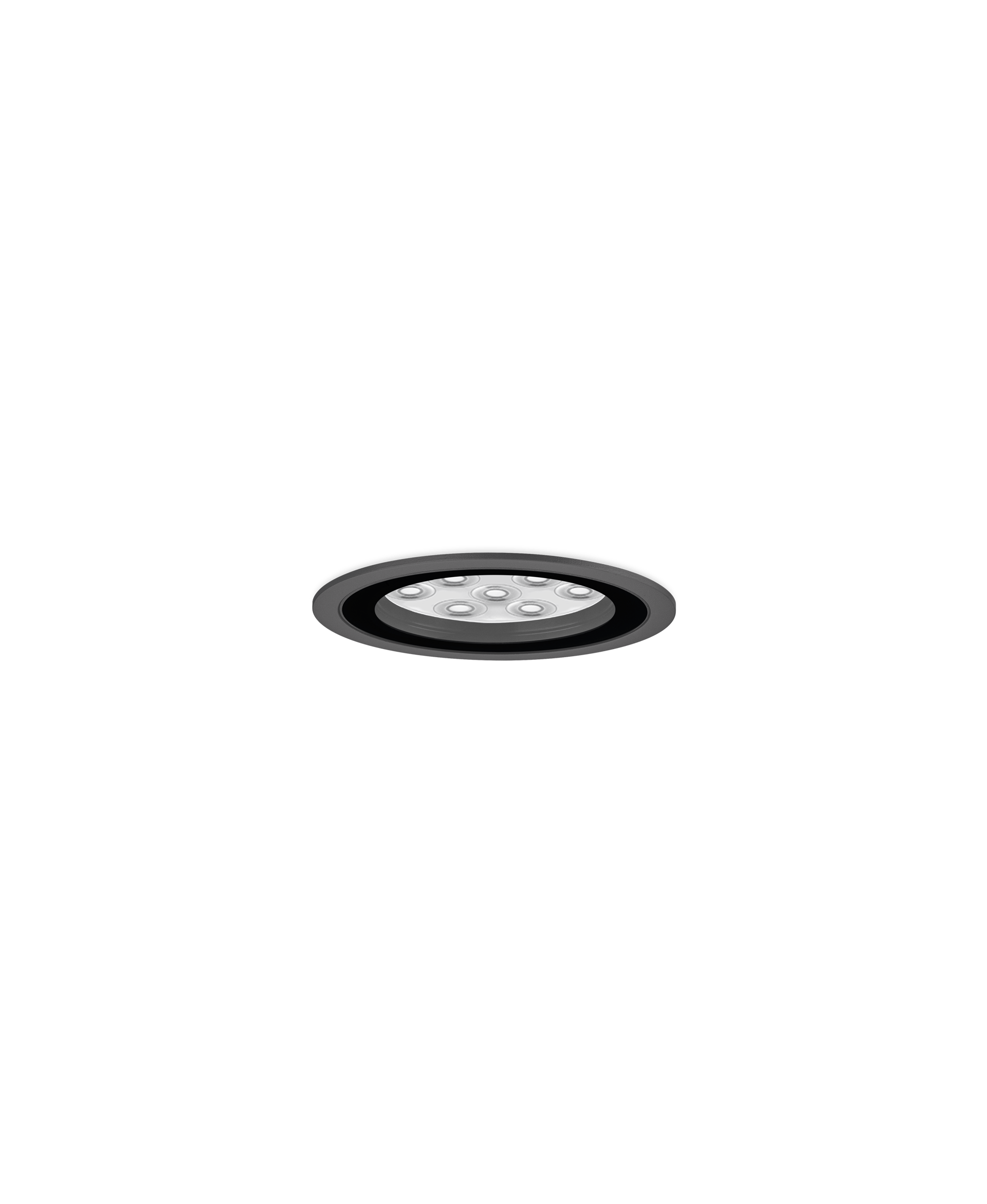

DOC120 LED for remodel projects. For new construction, see DOC120 LED [New Construction] version.
IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Separate IP66 driver housing. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 0-10V Dimming comes standard with luminaire. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

Eigenschaften

Material

Gehäuse
Schrauben
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK07
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
Befestigung

Elektrik

LED TreiberIntegral EC electronic converter in thermally-separated compartment
KabelTwo cable entries
Leistungsfaktor
NetzIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=25°/40° L90B10 > 90000h

Lichtverteilung

Lichtstrom (lm)

Leistung (W)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
134-1737symmetric, wide beam [W]LED-12/24W / 700 mA - 3000 K2709.280electronic gear5.07
134-1738symmetric, wide beam [W]LED-12/24W / 700 mA - 4000 K289680electronic gear5.07
134-1739symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K2998.680electronic gear5.07
134-1741symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 3000 K2883.780electronic gear5.07
134-1742symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 4000 K3082.580electronic gear5.07
134-1743symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 3000 K3077.980electronic gear5.07
134-1744symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 4000 K3290.280electronic gear5.07
134-1739wallwash [A20]LED-12/24W / 700 mA - 3000 K2405.680electronic gear5.07
134-1740wallwash [A20]LED-12/24W / 700 mA - 4000 K2571.580electronic gear5.07
134-1741linear spread, very narrow beamLED-12/24W / 700 mA - 3000 K2744.280electronic gear5.07
134-1742linear spread, very narrow beamLED-12/24W / 700 mA - 4000 K2933.480electronic gear5.07
134-1743linear spread, very narrow beam, 'sharp cut-off'LED-12/24W / 700 mA - 3000 K2865.980electronic gear5.07
134-1744linear spread, very narrow beam, 'sharp cut-off'LED-12/24W / 700 mA - 4000 K3063.580electronic gear5.07
134-1911symmetric, wide beam [W]LED-12/24W / 700 mA - 2700 K2522.380electronic gear5.07
134-1912symmetric, medium beam [M]LED-12/24W / 700 mA - 2700 K2791.880electronic gear5.07
134-1913symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 2700 K2684.880electronic gear5.07
134-1914symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 2700 K2865.680electronic gear5.07
134-1740symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K3205.480electronic gear5.07
Showing 1 to 18 of 18 Entries
