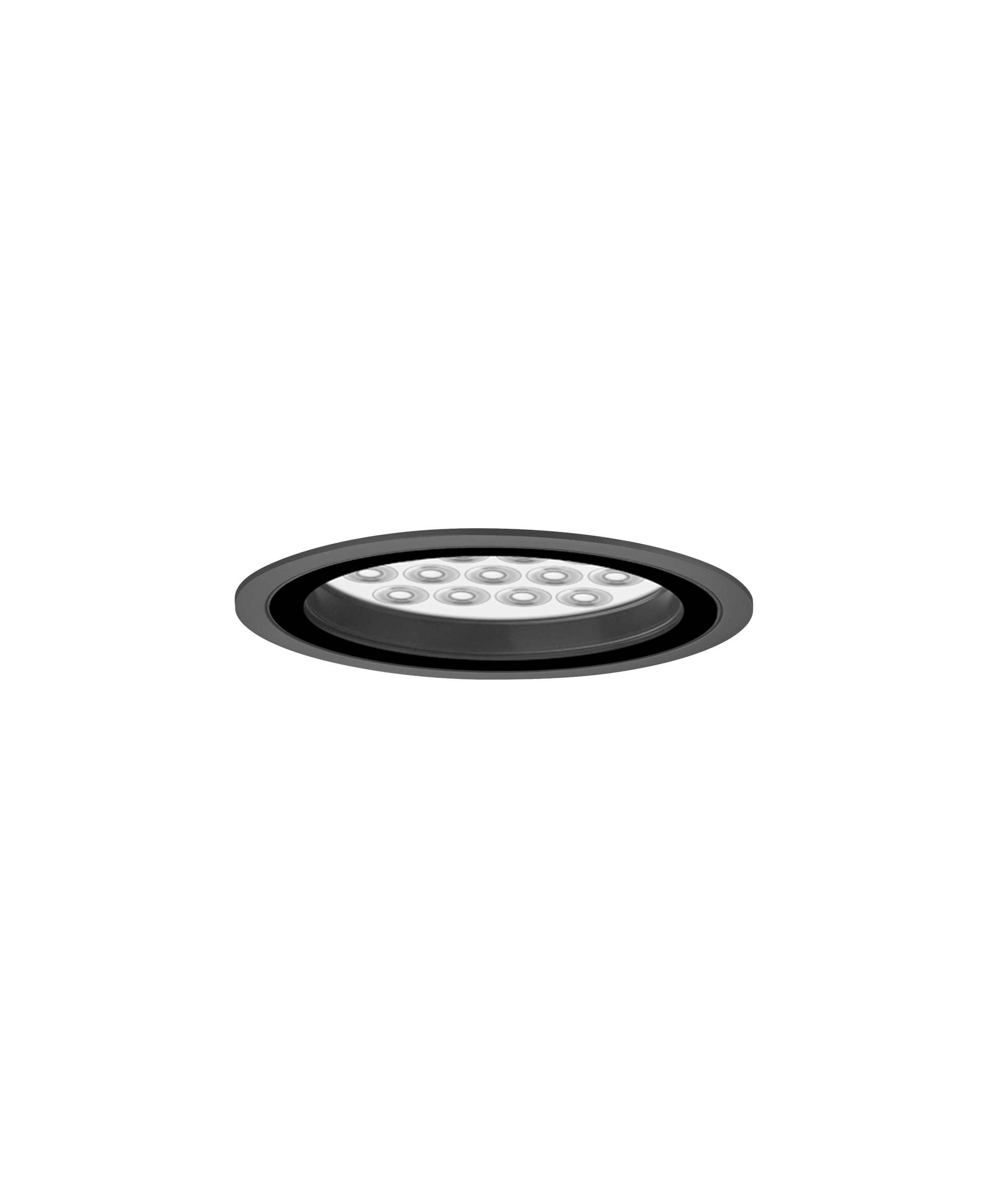

DOC140 LED for remodel projects. For new construction, see DOC140 LED [New Construction] version. IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Separate IP66 driver housing. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 0-10V Dimming comes standard with luminaire. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

DOC140 LED [For Remodel] Schematics
Colors
Material

Body: Marine-grade, die-cast aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK07

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver: Integral EC electronic converter in thermally-separated compartment

Cable: Two cable entries

Power Factor:

Power Supply: Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Surge Protection:

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

:

:

Light Distribution

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
134-1750symmetric, wide beam [W]LED-24/48W / 700 mA - 3000 K5388.580
134-1751symmetric, wide beam [W]LED-24/48W / 700 mA - 4000 K5760.180
134-1752symmetric, medium beam [M]LED-24/48W / 700 mA - 3000 K6047.280
134-1753symmetric, medium beam [M]LED-24/48W / 700 mA - 4000 K6464.280
134-1756symmetric, very narrow beam [VN]LED-24/48W / 700 mA - 3000 K5986.180
134-1757symmetric, very narrow beam [VN]LED-24/48W / 700 mA - 4000 K6398.980
134-1758symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/48W / 700 mA - 3000 K6442.780
134-1759symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/48W / 700 mA - 4000 K688780
134-1752wallwash [A20]LED-24/48W / 700 mA - 3000 K4851.980
134-1753wallwash [A20]LED-24/48W / 700 mA - 4000 K5186.680
134-1756linear spread, very narrow beamLED-24/48W / 700 mA - 3000 K5545.280
134-1757linear spread, very narrow beamLED-24/48W / 700 mA - 4000 K5927.680
134-1758linear spread, very narrow beam, 'sharp cut-off'LED-24/48W / 700 mA - 3000 K6104.980
134-1759linear spread, very narrow beam, 'sharp cut-off'LED-24/48W / 700 mA - 4000 K652680
134-1915symmetric, wide beam [W]LED-24/48W / 700 mA - 2700 K5016.980
134-1916symmetric, medium beam [M]LED-24/48W / 700 mA - 2700 K5630.180
134-1917symmetric, very narrow beam [VN]LED-24/48W / 700 mA - 2700 K5573.380
134-1918symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/48W / 700 mA - 2700 K5998.480
