ZAT400 Série

ZAT430-FT LED

Static White

Choisissez une famille :

ZAT430 LED
Diameter ⌀: 485 mm
H: 388 mm
ZAT430-FT LED
Diameter ⌀: 485 mm
H: 388 mm
ZAT440 LED
Diameter ⌀: 485 mm
H: 448 mm
ZAT440-FT LED
Diameter ⌀: 485 mm
H: 448 mm
ZAT460 LED
Diameter ⌀: 485 mm
H: 388 mm
ZAT460-FT LED
Diameter ⌀: 485 mm
H: 388 mm
ZAT470 LED
Diameter ⌀: 485 mm
H: 448 mm
ZAT470-FT LED
Diameter ⌀: 485 mm
H: 448 mm
Accueil
Produits
Pole-Mounted Luminaires

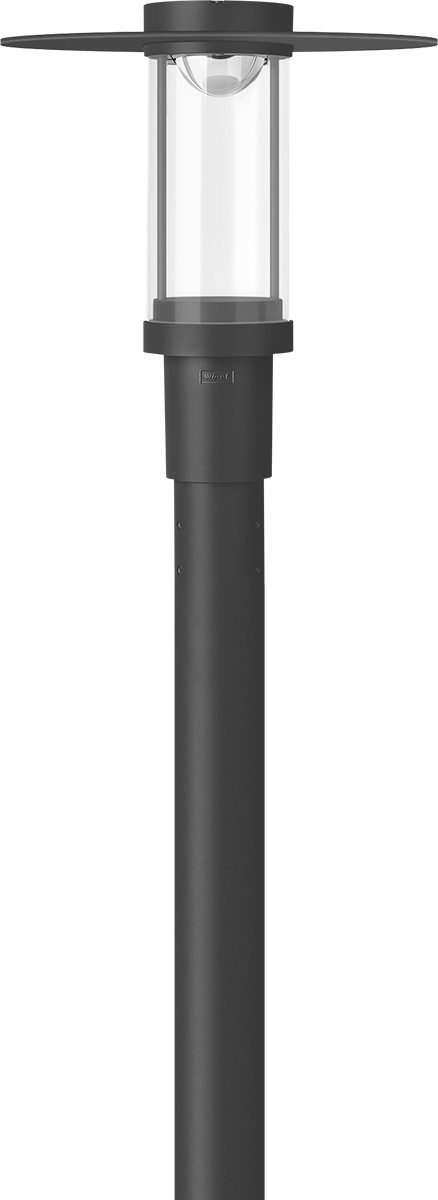

ZAT430-FT LED
Fiche technique de la famille Instructions d'installation Autres téléchargements

IP66, Class I. Class II on request. IK09. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. PMMA main lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised indirect optics for superior illumination and glare control. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation.

ZAT430-FT LED Schematics
Couleurs
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Description du matériel
CorpsMarine-grade, die-cast aluminium alloy
VisseriePCS Polymer Coated Stainless Steel Hardware
JointSilicone CCG® Controlled Compression Gasket
IKIK09
IPIP66
Protection contre la corrosion5CE
Description électrique
DriverIntegral EC electronic converter
CâbleFactory Sealed, includes IP68-cable connector for cable 9-14 mm
Facteur de puissance> 0.9
Alimentation électrique220-240V / 50-60 Hz
Protection contre les surtensions6/6 kV (optional SP10)
Informations complémentaires
LifetimeTa=25° L70B50 > 50000h
Energy efficiency classC-D (Light source)

Données en sortie de luminaire

To

Puissance

To
Code produitDistribution photométriqueSource lumineuseDonnées en sortie de luminaireIRCCaractéristiquesPhotométrie
TextePDF
115-1646controlled symmetric distribution [C50]LED-FT-12W / 350 mA - 2700 K1456.580 ULD
115-1647controlled symmetric distribution [C50]LED-FT-12W / 350 mA - 3000 K1555.180 ULD
115-1648controlled symmetric distribution [C50]LED-FT-12W / 350 mA - 4000 K1638.580 ULD
115-1649controlled symmetric distribution [C50]LED-FT-17W / 500 mA - 2700 K2226.480 ULD
115-1650controlled symmetric distribution [C50]LED-FT-17W / 500 mA - 3000 K2328.880 ULD
115-1651controlled symmetric distribution [C50]LED-FT-17W / 500 mA - 4000 K2427.480 ULD
115-1652controlled symmetric distribution [C50]LED-FT-24W / 700 mA - 2700 K3072.280 ULD
115-1653controlled symmetric distribution [C50]LED-FT-24W / 700 mA - 3000 K3201.280 ULD
115-1654controlled symmetric distribution [C50]LED-FT-24W / 700 mA - 4000 K3337.780 ULD
115-1658symmetric distribution [C60]LED-FT-12W / 350 mA - 2700 K1274.680 ULD
115-1659symmetric distribution [C60]LED-FT-12W / 350 mA - 3000 K1360.980 ULD
115-1660symmetric distribution [C60]LED-FT-12W / 350 mA - 4000 K1433.980 ULD
115-1661symmetric distribution [C60]LED-FT-17W / 500 mA - 2700 K1948.480 ULD
115-1662symmetric distribution [C60]LED-FT-17W / 500 mA - 3000 K203880 ULD
115-1663symmetric distribution [C60]LED-FT-17W / 500 mA - 4000 K2124.380 ULD
115-1664symmetric distribution [C60]LED-FT-24W / 700 mA - 2700 K2688.680 ULD
115-1665symmetric distribution [C60]LED-FT-24W / 700 mA - 3000 K2801.480 ULD
115-1666symmetric distribution [C60]LED-FT-24W / 700 mA - 4000 K2920.980 ULD
115-1881rectangular [R50]LED-FT-12W / 350 mA - 2700 K146880 ULD
115-1879rectangular [R50]LED-FT-12W / 350 mA - 3000 K1567.480 ULD
115-1880rectangular [R50]LED-FT-12W / 350 mA - 4000 K1651.580 ULD
115-1884rectangular [R50]LED-FT-24W / 700 mA - 2700 K3096.680 ULD
115-1976rectangular [R50]LED-FT-17W / 500 mA - 4000 K2446.780 ULD
115-1883rectangular [R50]LED-FT-24W / 700 mA - 4000 K3364.280 ULD
115-1882rectangular [R50]LED-FT-24W / 700 mA - 3000 K3226.680 ULD
115-1974rectangular [R50]LED-FT-17W / 500 mA - 2700 K2244.180 ULD
115-1975rectangular [R50]LED-FT-17W / 500 mA - 3000 K2347.380 ULD
115-2082rectangular [R50]LED-FT-37W / 700 mA - 2700 K4698.480 ULD
115-2080rectangular [R50]LED-FT-37W / 700 mA - 3000 K4839.880 ULD
115-2081rectangular [R50]LED-FT-37W / 700 mA - 4000 K5118.980 ULD
115-1655controlled symmetric distribution [C50]LED-FT-37W / 700 mA - 2700 K4661.580 ULD
115-1656controlled symmetric distribution [C50]LED-FT-37W / 700 mA - 3000 K4801.880 ULD
115-1657controlled symmetric distribution [C50]LED-FT-37W / 700 mA - 4000 K4444.480 ULD
115-1667symmetric distribution [C60]LED-FT-37W / 700 mA - 2700 K4079.380 ULD
115-1668symmetric distribution [C60]LED-FT-37W / 700 mA - 3000 K4202.180 ULD
115-1669symmetric distribution [C60]LED-FT-37W / 700 mA - 4000 K4444.480 ULD
Affichage de 1 à 36 sur 36 résultats

Accessories

Code produitTitreCaractéristiques
TextePDF
159-0321LS180-[C60]
