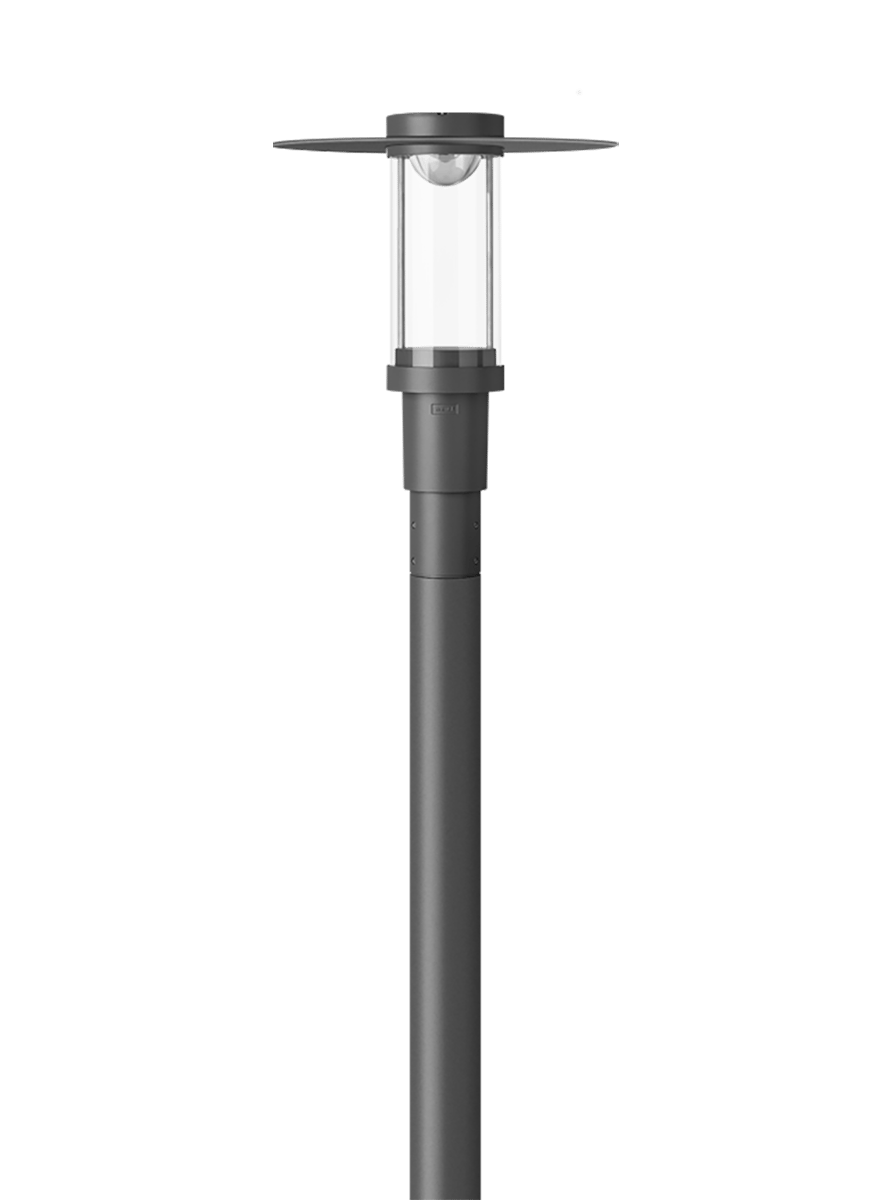

IP66. Class I. IK09. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. PMMA main lens. CAD-optimized indirect optics for superior illumination and glare control. Integral driver in thermally separated compartment. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Luminaire is factory-sealed and does not need to be opened during installation. Recommended mounting height 10-20 ft. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

ZAT430-FT LED Schematics
Colors
Material

Body: Marine-grade, die-cast aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK09

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver: Integral EC electronic converter

Cable: 30 feet of flexible 18/5 cable

Power Factor: > 0.9

Power Supply: Integral [ECG] LED driver in 120-277V

Surge Protection:

Additional Information

Lifetime: Ta=25°/40° L70B50 > 50000h

:

:

Light Distribution

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
115-1646[C50] Type V ShortLED-FT-12W (2700K)1456.580
115-1647[C50] Type V ShortLED-FT 12W (3000K)1555.180
115-1648[C50] Type V ShortLED-FT 12W (4000K)1638.580
115-1649[C50] Type V ShortLED-FT-17W (2700K)2226.480
115-1652[C50] Type V ShortLED-FT-24W (2700K)3072.280
115-1653[C50] Type V ShortLED-FT-24W (3000K)3201.280
115-1654[C50] Type V ShortLED-FT-24W (4000K)3337.780
115-1658symmetric distribution [C60]LED-FT-12W (2700K)1274.680
115-1659symmetric distribution [C60]LED-FT 12W (3000K)1360.980
115-1660symmetric distribution [C60]LED-FT 12W (4000K)1433.980
115-1661symmetric distribution [C60]LED-FT-17W (2700K)1948.480
115-1664symmetric distribution [C60]LED-FT-24W (2700K)2688.680
115-1665symmetric distribution [C60]LED-FT-24W (3000K)2801.480
115-1666symmetric distribution [C60]LED-FT-24W (4000K)2920.980
115-1881rectangular [R50]LED-FT-12W (2700K)146880
115-1884rectangular [R50]LED-FT-24W (2700K)3096.680
115-1974rectangular [R50]LED-FT-17W (2700K)2244.180
115-2082rectangular [R50]LED-FT-37W (2700K)4698.480
Showing 1 to 18 of 18 Entries

Accessories

Part-IDTitlePDFOpen Data
Please select an accessory category
ItemDownloadMail Link
Product Images
Light Distributions
Install Instructions
Manual
WE-EF General Catalogue 2021 - Pole mounted luminaires
