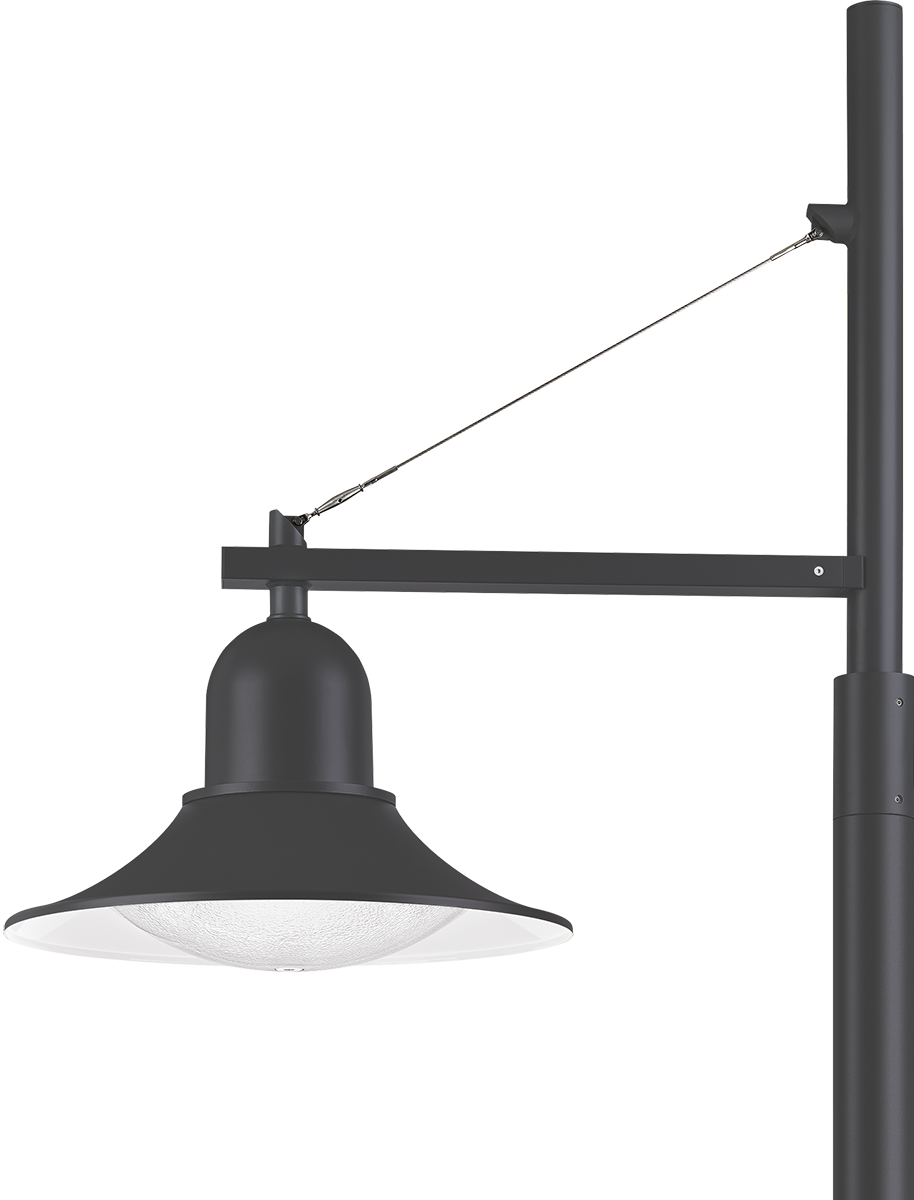

BSP544 LED

BSP544 LED

Family Spec Sheet

IP55, Class I. Cass II on request. IK10. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. Polycarbonate main lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Optional 2200 K version available. To be specified at time of ordering. Brackets to be ordered separately.

BSP544 LED Schematics
Colors
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
RAL8019 Grey brown
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone rubber gasket
Impact ProtectionIK10
Ingress ProtectionIP55
FinishPowdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverIntegral EC electronic converter. DALI
Cable
Power Factor> 0.9
Power Supply220-240V / 50-60 Hz
Surge Protection6/6 kV (optional SP10)
Additional Information
LifetimeTa=25° L90B10 > 90000h
Energy efficiency classC-D (Light source)

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
127-1302asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 3000 K5920.980
127-1303asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 4000 K6329.380
127-1304asymmetric, side throw beam [S65]LED-36/72W / 700 mA - 3000 K8881.480
127-1305asymmetric, side throw beam [S65]LED-36/72W / 700 mA - 4000 K9493.980
127-1306rectangular, side throw [R65]LED-24/48W / 700 mA - 3000 K5398.980
127-1307rectangular, side throw [R65]LED-24/48W / 700 mA - 4000 K5771.280
127-1308rectangular, side throw [R65]LED-36/72W / 700 mA - 3000 K8098.380
127-1309rectangular, side throw [R65]LED-36/72W / 700 mA - 4000 K8656.880
127-1433asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 2700 K5512.680
127-1434asymmetric, side throw beam [S65]LED-36/72W / 700 mA - 2700 K8268.980
127-1435rectangular, side throw [R65]LED-24/48W / 700 mA - 2700 K5026.580
127-1436rectangular, side throw [R65]LED-36/72W / 700 mA - 2700 K7539.880
127-1433-70asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 2700 K5920.970
127-1435-70rectangular, side throw [R65]LED-24/48W / 700 mA - 2700 K5398.970
127-1302-70asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 3000 K6737.670
127-1306-70rectangular, side throw [R65]LED-24/48W / 700 mA - 3000 K6143.570
127-1303-70asymmetric, side throw beam [S65]LED-24/48W / 700 mA - 4000 K714670
127-1307-70rectangular, side throw [R65]LED-24/48W / 700 mA - 4000 K6515.970
127-1434-70asymmetric, side throw beam [S65]LED-36/72W / 700 mA - 2700 K8881.470
127-1436-70rectangular, side throw [R65]LED-36/72W / 700 mA - 2700 K8098.370
127-1304-70asymmetric, side throw beam [S65]LED-36/72W / 700 mA - 3000 K10106.470
127-1308-70rectangular, side throw [R65]LED-36/72W / 700 mA - 3000 K9215.370
127-1305-70asymmetric, side throw beam [S65]LED-36/72W / 700 mA - 4000 K10718.970
127-1309-70rectangular, side throw [R65]LED-36/72W / 700 mA - 4000 K9773.870
Showing 1 to 24 of 24 Entries
